TELTONIKA
EDGE camera (MVC100)
User's Manual 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVC100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teltonika MVC100

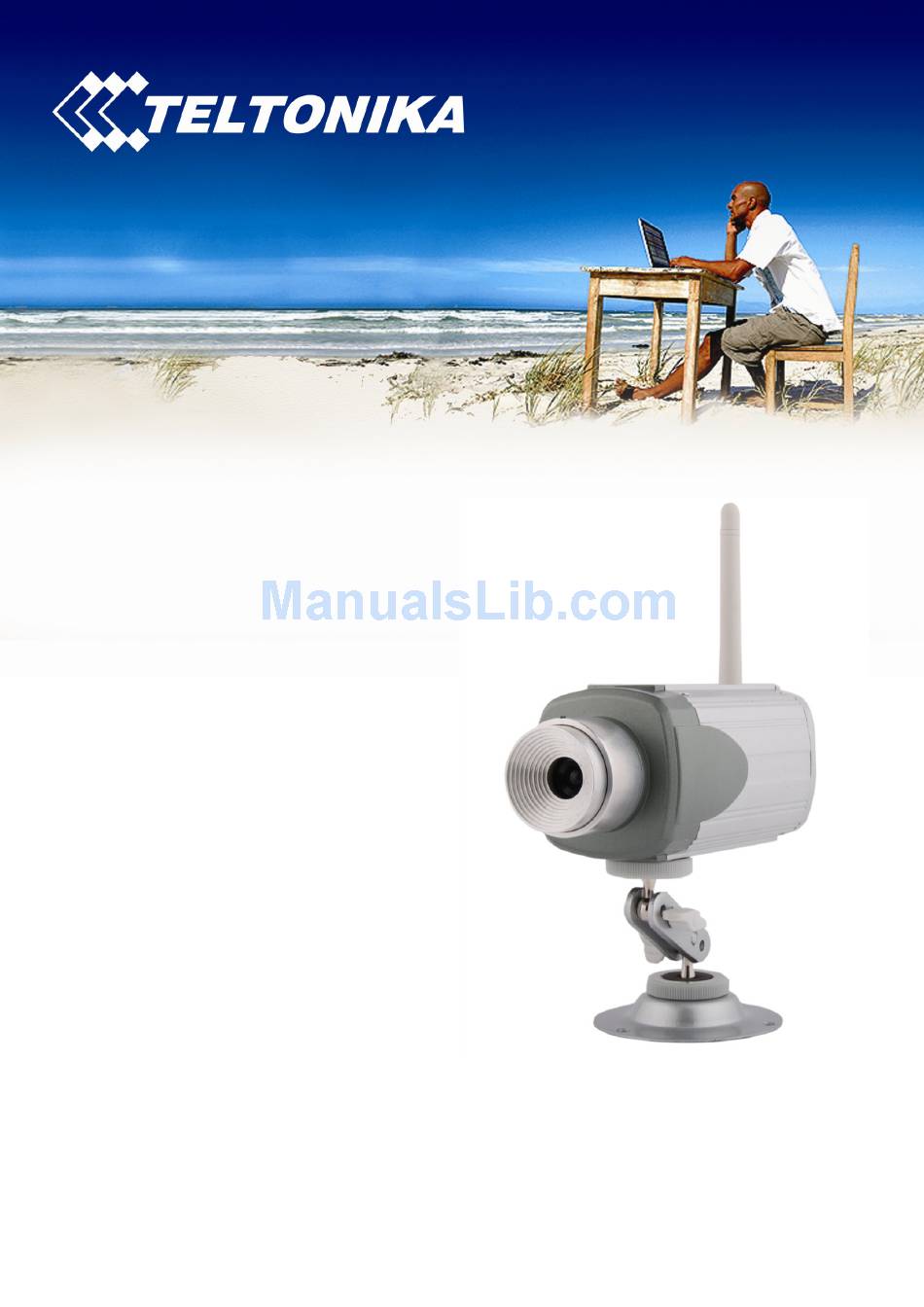

  • Page 1 TELTONIKA EDGE camera (MVC100) User’s Manual 1.00...
  • Page 2: Important Notes

    LEGAL NOICE Copyright © 2008 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited. Other product and company names mentioned herein may be trademarks or trade names of their respective owners.
  • Page 3: Table Of Contents

    Table of Contents SAFETY INFORMATION ............................4 GETTING STARTED .............................. 5 ................................. 5 NTRODUCTION ..............................5 ACKAGE CONTENTS ............................5 NSTALLING THE HARDWARE 2.3.1 Inserting SIM card ............................5 2.3.2 Attaching antenna ............................6 2.3.3 Back panel overview ............................ 6 2.3.4 Typical PIR and door sensor connection ......................
  • Page 4: Safety Information

    1 SAFETY INFORMATION In this document you will be introduced how to use camera safely. We suggest you to adhere to following recommendations to avoid any damage to person or property. You have to be familiar with the safety requirements before starting to use the device! Camera is used for transmission of video and single images via GSM network using GPRS and EDGE technologies.
  • Page 5: Getting Started

    2 GETTING STARTED 2.1 Introduction Teltonika MVC100 EDGE Camera - compact mobile surveillance and monitoring system for transmission of high resolution video and single images via GPRS/EDGE network, so even in places with no Internet connection available - ideal for remote surveillance and monitoring of temporary or distant sites or mobile assets.
  • Page 6: Attaching Antenna

    2.3.2 Attaching antenna Screw the antenna in a clockwise direction. Position the antenna upwards at its connecting joint. This will ensure optimal reception. 2.3.3 Back panel overview 1. Power supply adapter socket. 2. Battery 3. 5-pin terminal block 4. 5-pin terminal block for connecting external light 5.
  • Page 7: Wall Mounting

    Depending on your operating system, follow the instructions below to install software for connecting to the GSM Camera. Installation Guide CD is shipped with the product or available to download from the Teltonika Web site. 2.4.1 Installing USB drivers (Windows) 1.
  • Page 8: Ppp Connection Settings (Windows)

    2.4.2 PPP connection settings (Windows) 1. Connect camera to the PC USB port. 2. Create a new network connection. To create null modem connection click on: Start => Settings => Control Panel => Network connections 3. Then choose File => New connection. The New Connection Wizard will appear. 4.
  • Page 9 8. You may select Add a shortcut to this connection to my desktop for easy access. 9. Select Properties to customize connection. 10. In General tab press Configure. In the new appeared Modem configuration window define Maximum speed (bps) to 115200 bps. Then uncheck Enable hardware flow control option. Click OK to close modem configuration properties.
  • Page 10: Accessing The Camera

    2.5 Accessing the Camera 2.5.1 Accessing WEB interface To access camera WEB interface firstly a PPP connection must be started. How to configure a PPP connection it is written in section 2.4.2. After successful connection open the Web browser and type the camera IP address (http://10.0.0.1).
  • Page 11: Edge Camera Configuration

    3 EDGE CAMERA CONFIGURATION 3.1 Status & Review 3.1.1 Live view The live view section allows seeing video in real time within the camera WEB interface. Also it contains important status information. The status information view is shown in Fig. 5. Figure 5.
  • Page 12: Video And Image Settings

    Timeout – Define the time out in minutes and seconds. 3.2 Video and image settings 3.2.1 Video parameters Video parameter may be used to get clear video. In Fig. 8 shows video configurations settings. Figure 8. Video settings configuration. Brightness – Adjust the brightness value from range -127 to 127. Contrast –...
  • Page 13 3.3.1.2 On event stream Figure 10. Event video stream settings. Enable – Check the box to enable constant stream. Stop activity on Contact2 – Check the box if there is a need to stop streaming on event on Contact2 [N.C. – Normally Closed, N.O. – Normally Open]. Events –...
  • Page 14: Settings

    3.4 Settings 3.4.1 E-mail & FTP This section describes how to configure FTP and E-mail settings. Figure 11. E-Mail settings. SMTP server – the domain or the IP address of the email SMTP server. User name –Enter your user name of the email account. Password –...
  • Page 15: Network

    3.4.2 Network 3.4.2.1 GSM network settings GSM network settings are used to configure connection to GSM network settings. Al the configuration data must be provided by your mobile service provider. Figure 13. Mobile network configuration. Phone Number – Phone number acquired from your ISP (default *99#). PPP authentication –...
  • Page 16: Admin

    3.5 Admin 3.5.1 Logs In the logs sections all events maybe reviewed. The logs maintain information about the system status and I/O logs events. Figure 15. Log window view. 3.5.2 Users management In this section camera user’s username and password can be changed. To change the password click on the user the new window with username and password will appear (Fig.
  • Page 17: Maintenance

    3.5.3 Maintenance 3.5.3.1 Set the time Figure 17. Username and password change window. 3.5.3.2 Firmware upgrade To update your device firmware click on the Update firmware button. Figure18. Firmware update 3.5.3.3 Restoring default username and password or resetting to factory defaults 1.
  • Page 18: Technical Specification

    TECHNICAL SPECIFICATION Management User-friendly Web GUI IMAGE Image sensor: VGA (640x480 pixels). Image resolution: VGA/QVGA/QQVGA Image compression: JPEG Video clip (programmable time duration) and/or single snapshot SECURITY Security for administration/configuration: only authorised users are allowed (user name and password) CONFIGURATION & CONTROL Interfaces: Built-in web-server Firmware update:...
  • Page 19 TEMPERATURES & HUMIDITY Operating temperature: 0ºC to 50ºC. Relative humidity: maximal 80% Store and transport conditions: Temperature: -20˚ to 60˚ C. Relative humidity 5% to 95% OTHER Lighting control: relay contacts Backup battery Power source detection: Mains indication Low battery power detection GSM operator's identification GSM signal level measurement and display ELECTRICAL CHARACTERISTICS...
  • Page 20: Appendix D Dynamic Domain Name Service (Ddns)

    5 Appendix D Dynamic Domain Name Service (DDNS) Domain Name Service (DNS) - What is DNS? The Internet system that translates human-understandable hostnames (like www.teltonika.eu) into computer-understandable IP addresses (like 213.226.139.54) and back again. Dynamic Domain Name Service (DNS) - What is DDNS? Dynamic DNS (DDNS) is a domain name service allowing to link dynamic IP addresses to static hostname.
