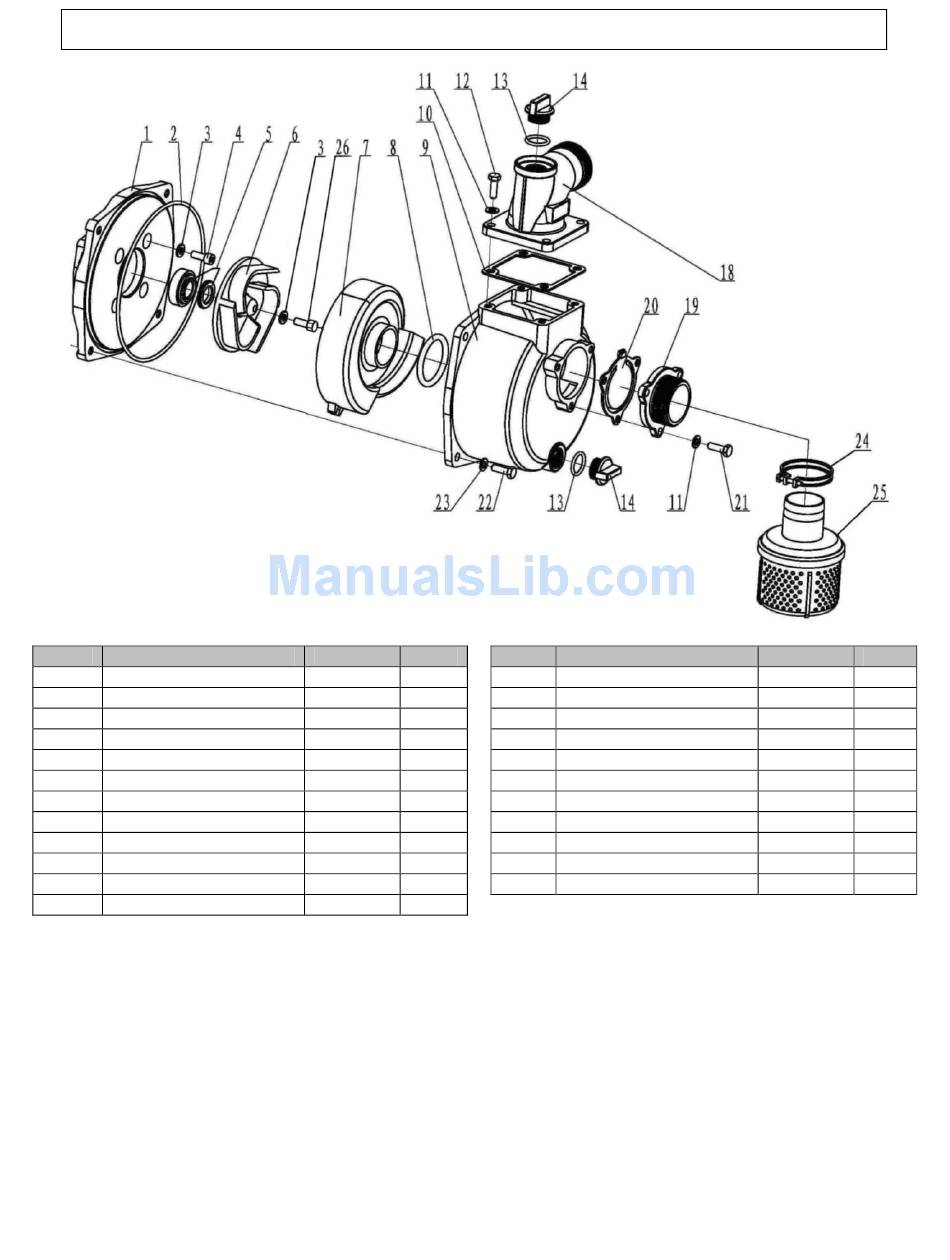

780969 Pump Exploded View - North Star M109163C Owner's Manual

Fig03023
Item Description
1 Pump Cover
2 Large O-ring
3 Sealing Washer
4 Mount Bolt
5 Mechanical Seal
6 Impeller
7 Volute
8 Small O-ring
9 Pump Body
10 Outlet Seal
11 Connection Washer
12 Outlet Connection Bolt

780969 Pump Exploded View

Part # Qty.
781234 1
781235 1
781236 5
781237 4
781238 1
781239 1
781240 1
781241 1
781242 1
781243 1
781244 8
781245 4
Item Description
13 Plug O-ring
14 Drain/Prime Plug
18 Outlet Flange
19 Inlet Flange
20 Inlet Check Valve
21 Inlet Connection Bolt
22 Pump Body Bolt
23 Pump Body Washer
24 Inlet Hose Clamp
25 Suction Strainer
26 Shaft Bolt
19
Part # Qty.
781246 2
781247 2
782566 1
782565 1
781250 1
781251 3
781252 4
781253 4
781254 1
781255 1
781256 1
