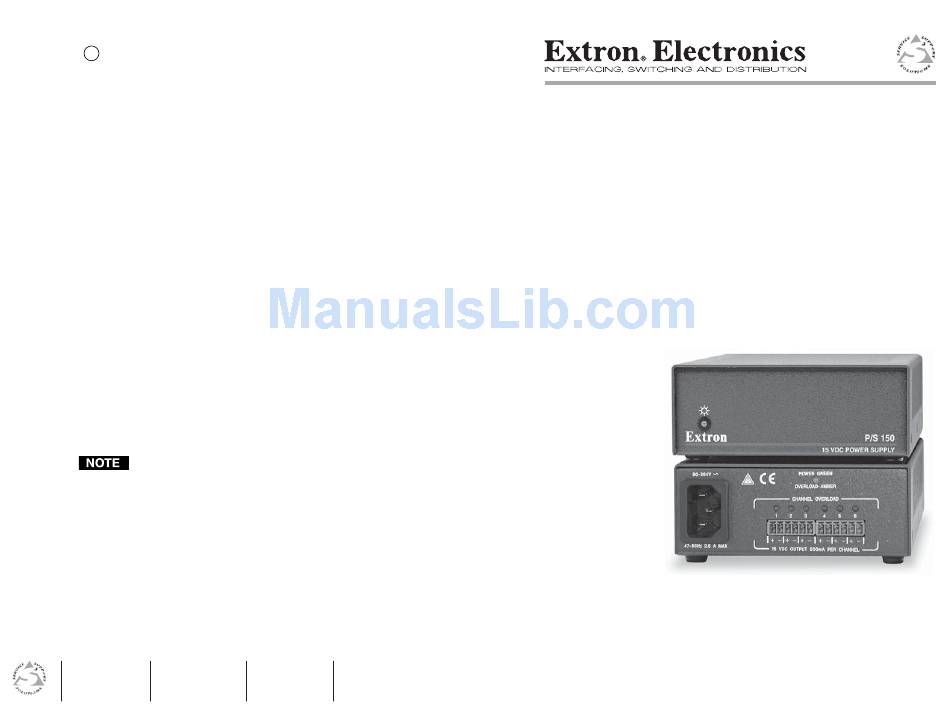

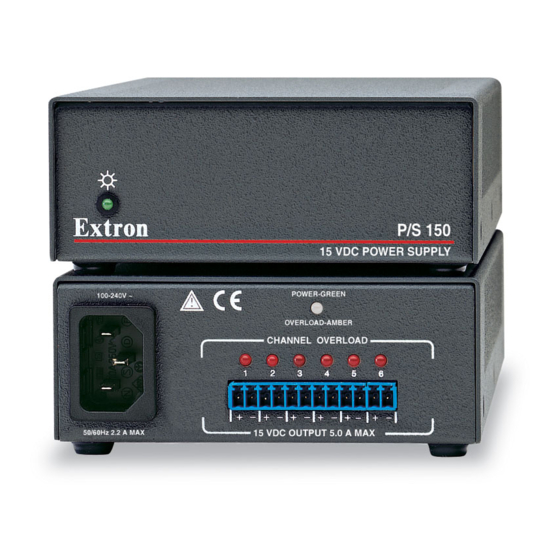

Channel Overload LEDs — These rear panel LEDs light
5
red to indicate that an overcurrent condition (1.8 amps or
more, or a short circuit) exists for the associated output.
When the Channel Overload LED lights for a specific
output, that output is switched off.

Specifications

Power input .................................. 100VAC to 240VAC, 50/60 Hz, 100 watts,
Power output ............................... 6 15VDC outputs (maximum current of
Temperature/humidity ............. Storage
Rack mount .................................. Yes, with optional rack shelf,
Enclosure type ............................. Metal
Enclosure dimensions ................. 1.75" H x 4.4" W x 8.5" D
Shipping weight ........................... 3 lbs (1.4 kg)
Vibration ....................................... ISTA/NSTA 1A in carton
MTBF ............................................. 30,000 hours
Warranty ...................................... 3 years parts and labor
Specifications are subject to change without notice.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com Fax 714.491.1517 Fax +31.33.453.4050
© 2002 Extron Electronics. All rights reserved.
internal, auto-switchable
all outputs: 4.8 A )
-40° to +158°F (-40° to +70°C) /
5% to 95%, non-condensing
Operating
+32° to +113°F (0° to +45°C) /
5% to 90%, non-condensing
part #60-190-01
4.4 cm H x 11.2 cm W x 21.6 cm D
(International Safe Transit Association)
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide
P/S 150
Universal 15V DC Power Supply
68-577-01 Rev. B
Printed in the USA
02 02
