when power is applied and an overcurrent condition (2.0
amps or more) exists.
Continued operation in an overload condition will
cause premature power supply failure.

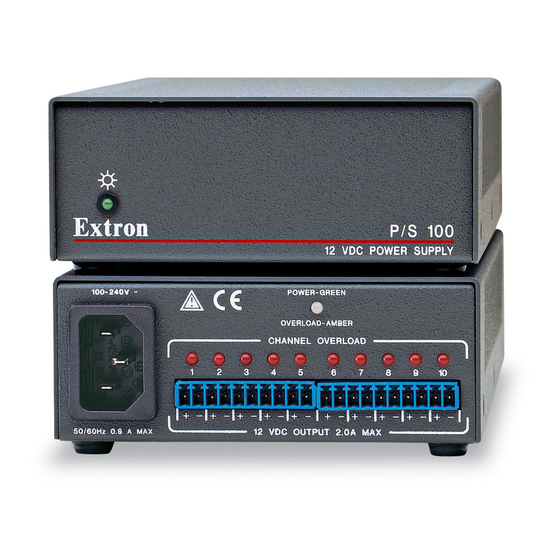

Channel Overload LEDs — These rear panel LEDs light
5
red to indicate that an overcurrent condition (0.6 amps or
more, or a short circuit) exists for the associated output.
When the Channel Overload LED lights for a specific
output, that output is switched off.
Specifications
Power input ............................. 100VAC to 240VAC, 50/60 Hz, 31 watts,
internal, auto-switchable
Power output .......................... (10) 12VDC outputs (maximum current of
all outputs 2.0 A )
Temperature/humidity ........ Storage -40° to +158°F (-40° to +70°C) /
10% to 90%, non-condensing
Operating +32° to +113°F (0° to +45°C) /
10% to 90%, non-condensing
Rack mount ............................. Yes, with optional rack shelf, part #60-190-01
Enclosure type ........................ Metal
Enclosure dimensions ........... 1.75" H x 4.4" W x 8.5" D
4.4 cm H x 11.2 cm W x 21.6 cm D
Product weight ....................... 1.0 lbs (0.5 kg)
Shipping weight ..................... 3 lbs (1.4 kg)
Vibration .................................. ISTA/NSTA 1A in carton
(International Safe Transit Association)
Listings: .................................... UL, CUL
Compliances: ........................... CE
MTBF ........................................ 30,000 hours
Warranty .................................. 3 years parts and labor
Specifications are subject to change without notice.
Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort
USA
The Netherlands
714.491.1500
+31.33.453.4040
www.extron.com
Fax 714.491.1517
Fax +31.33.453.4050
© 2002 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Road, #04-01
Daisan DMJ Building 6F
PM Industrial Building
3-9-1 Kudan Minami
Singapore 368363
Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400
+81.3.3511.7655
Fax +65.6383.4664
Fax +81.3.3511.7656

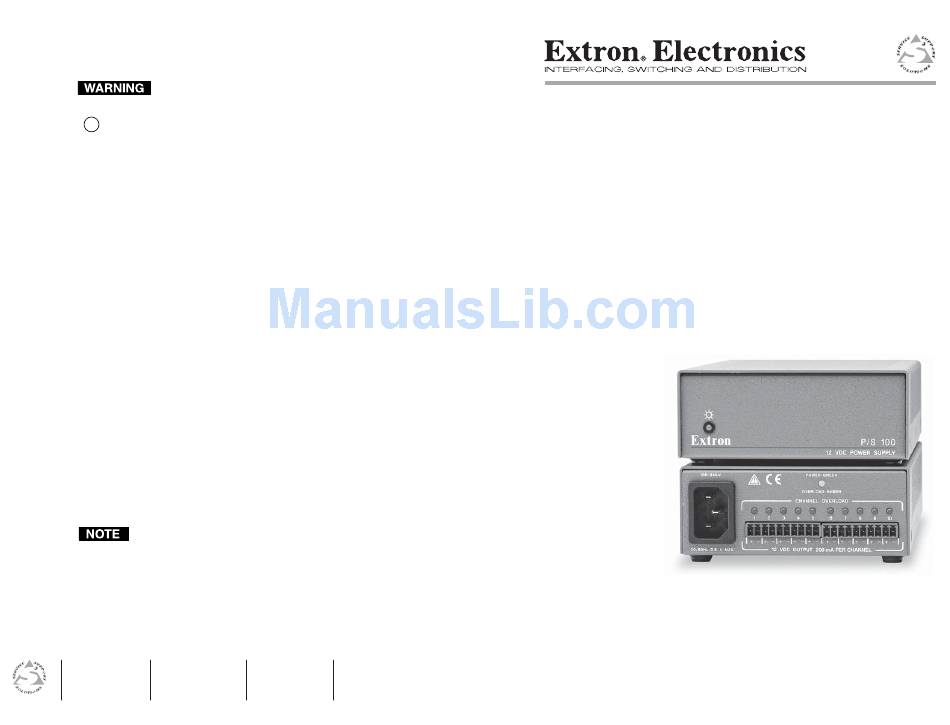

User's Guide
P/S 100
Universal 12VDC Power Supply
68-527-01 Rev. C
Printed in the USA
07 02
