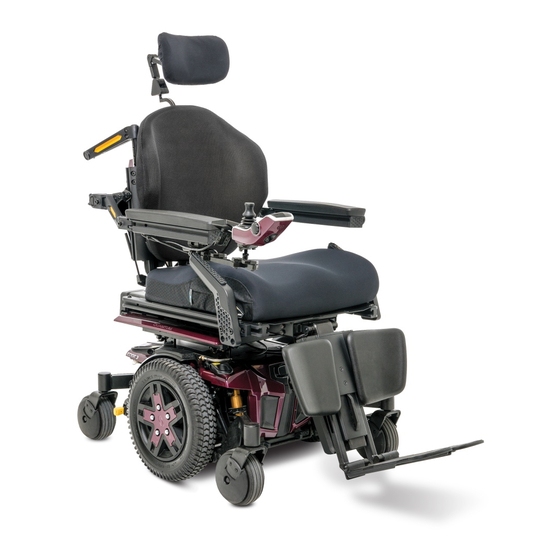

Q6 Edge 2/3 Power Base Installation Instructions:
Dahl Engineering Docking Systems Lock Plate
The purpose of these instructions is to guide providers/technicians through the steps of securing
the Dahl Engineering Docking System Lock Plate to the Quantum Q6 Edge 2 or Q6 Edge 3
power base and to instruct end users how to operate the DAHL Engineering Docking System.
These instructions must be utilized for both the Dahl Engineering MKII Docking System and the
Dahl Engineering VarioDock Docking System.
There are two sections to these instructions:
Section 1: Details the installation instructions for the DAHL Engineering Docking System Lock
Plate. These instructions do not apply to the installation of Dahl Engineering Docking Systems
into vehicles. Pride Mobility Products and Quantum Rehab will not administer any sales, support
or installation of Dahl Engineering Docking Systems into vehicles. Dahl Engineering will distrib-
ute the installation kit for Dahl Engineering Docking Systems (including any replacement or
auxiliary parts) to Wheelchair Adapted Vehicle (WAV) conversion workshops, who will be directly
responsible for installing Dahl Engineering Docking Systems into vehicles according to instruc-
tions issued by Dahl Engineering.
Section 2: Instructs the end user how to properly operate the DAHL Engineering Docking
System. These instructions have been provided by DAHL and can be found at
https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf. Inclusion of
these instructions to this document are not an endorsement of this product.
If you have questions or concerns about the installation of a Dahl Engineering Docking System
into a vehicle, use, or maintenance, please contact Dahl Engineering directly or visit Dahl Engi-
neering's website (https://dahlengineering.dk/) for additional information.
The Q6 Edge 2 & 3 power wheelchairs have been successfully tested in accordance with the
standards of ISO 7176-19:2008 ("Wheeled mobility devices for use as seats in motor vehicles");
however, improper installation of Lock Plates may void the Q6 Edge warranty and cause serious
injury, death and/or property damage.
Following the installation instructions and warnings assures the CE-marking of the wheelchair is
maintained.
...................................... 2
........................................3
.......................................7
Rev B / November 2020
Table of Contents
....... 2
.........................4
...................5
- Section 2 (cont.):
Operation
................................................8
....................................................10
1
...................................8
.....................9
..........................................10
..........10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pride Mobility Quantum Q6 Edge 2
Summary of Contents for Pride Mobility Quantum Q6 Edge 2
-
Page 1: Table Of Contents
The purpose of these instructions is to guide providers/technicians through the steps of securing the Dahl Engineering Docking System Lock Plate to the Quantum Q6 Edge 2 or Q6 Edge 3 power base and to instruct end users how to operate the DAHL Engineering Docking System. -
Page 2: Kit Contents
Kit Contents & Tools / Material Requirements Dahl Docking Systems Lock Plate Kit Contents (provided by Dahl Engineering): Part Description 5 mm Thick Spacer Board M8 Custom Nut 8 mm Thick Spacer Locking Plate M8 Torx Screw, 35 mm *Dahl #502378 The new hardware provided with the Installation Kit MUST be used for installation. -
Page 3: Section 1: Warnings
Section 1: Warnings WARNINGS! For Installation of Lock Plates WARNING! Failure to follow these instructions may result in serious injury or death to the power chair user or others passengers in the vehicle, and/or cause property damage. WARNING! Lock Plates should only be installed by an authorized provider/techni- cian. -
Page 4: Chair Preparations
Section 1: Chair Preparations Ensure the unit is in drive mode. Reference the power chair Owner’s Manual. Turn off the power at the joystick. Reference the power chair Owner’s Manual. Remove the front battery door from the power base. The front riggings may need to be removed to access the release levers. -
Page 5: Assembly Instructions
Section 1: Assembly Instructions per Dahl Engineering Assemble the Docking System onto the power base. Additional spacers (not included) can be applied if necessary to achieve the desired clearance. Test that the proper clearance is achieved by connecting to the docking station. If screw threads protrude through the nut, flush mark the screws to the top of the nuts. - Page 6 Section 1: Assembly Instructions per Dahl Engineering (cont.) Secure the spacer boards with double-sided adhesive tape to the battery cavity on both sides of the custom nuts. Do not overlap on top of the nuts. If the spacer boards overlap the nuts, trim the boards with a utility knife or heavy duty scissors to clear the nuts.
-
Page 7: Section 2: Warnings
Section 2: Warnings These warnings are from the DAHL User Manual located at https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf WARNINGS! For Operation of the Docking System (From DAHL’s User Manual) Never begin driving the vehicle whilst a wheelchair is being docked in the docking station or if the user’s safety belt is not secured. -
Page 8: Perform A Check
Section 2: Operation These instructions are from the DAHL User Manual located at https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf Perform a check of the wheelchair Perform a final check by connection the wheelchair to the docking station. Check that it is securely locked and make sure that all release methods work as intended. (Figure 1) See drawing no. -
Page 9: Release From The Docking Station
Section 2: Operation (cont.) These instructions are from the DAHL User Manual located at https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf Release from the docking station When the vehicle has been brought to a halt, remove the safety belt. To unlock commence by driving the wheelchair forward to release pressure on the lock pin and then press the red release button in the control panel. -
Page 10: Safety Belts
Section 2: Operation (cont.) These instructions are from the DAHL User Manual located at https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf Safety belts (Accessory for docking station) Safety belts must be inspected and cleaned regularly. Replace belts or straps that have faded in the sun, are worn at the edges, have tears or show clear signs of wear. Components that are damaged or worn must also be replaced. - Page 11 Section 2: Operation (cont.) These instructions are from the DAHL User Manual located at https://dahlengineering.dk/media/238906/503744-dahl_manual_mkii_uk_420.pdf General occupant restraint instructions (cont.) Belt restraints must not be held away from the body by wheelchair components such as arm- rests or wheels. (Figure 1). The pelvic restraint belt must be worn low across the front of the pelvis so that the angle of the pelvic belt is within the optional or preferred zone of 30°...
