JAZZY 610
S E R I E S
How a Power Chair should FEEL!
Including Models: Jazzy 610 2S, Jazzy 610 2SP
1-800-800-8586 (US) 1-888-570-1113 (Canada)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy 610 2SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pride Jazzy 610 2SP

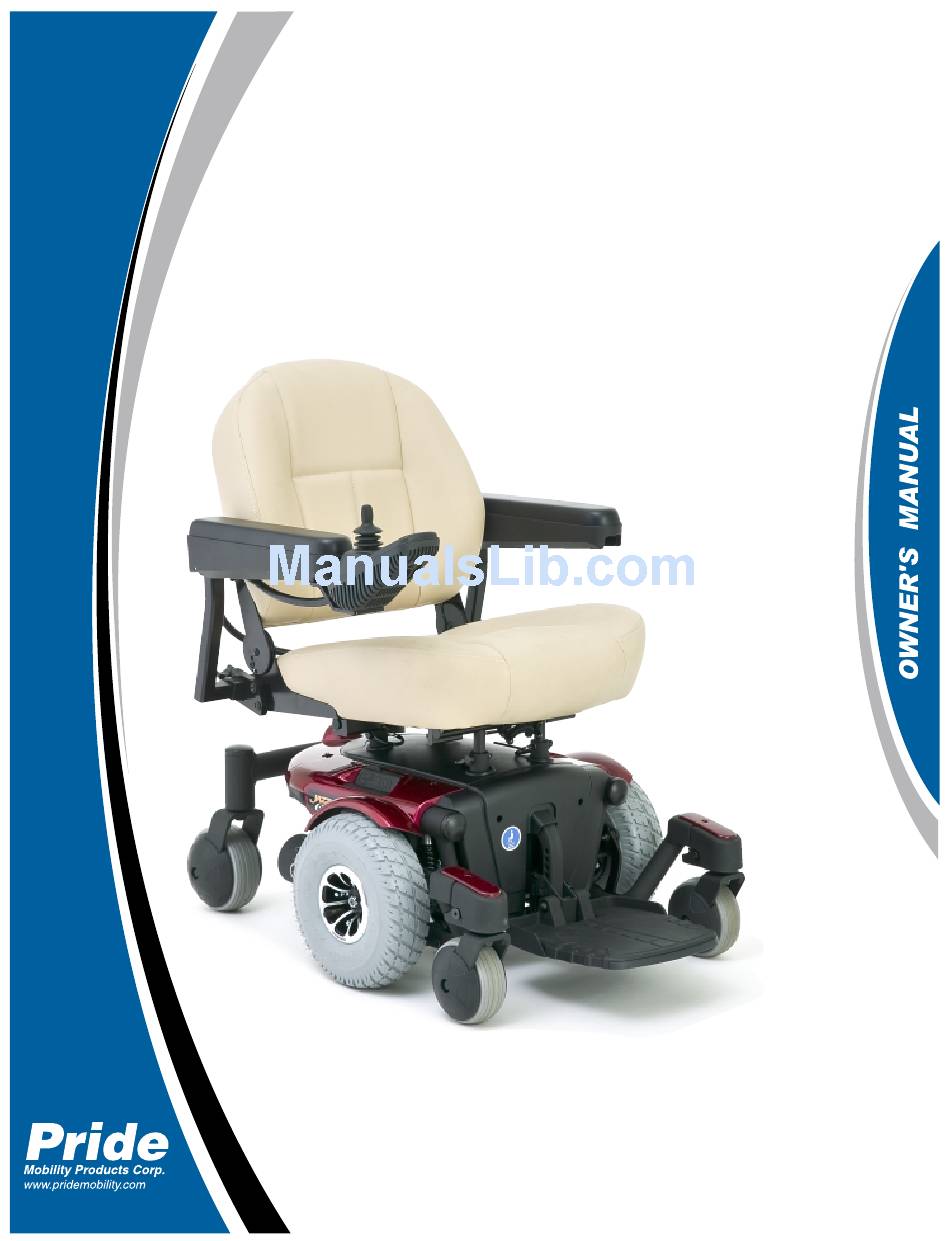

  • Page 1 JAZZY 610 S E R I E S How a Power Chair should FEEL! ™ Including Models: Jazzy 610 2S, Jazzy 610 2SP 1-800-800-8586 (US) 1-888-570-1113 (Canada)
  • Page 2: Safety Guidelines

    088 609 661 Copyright © 2006 Pride Mobility Products Corp. INFMANU2897/Rev D/December 2006 G U I D E L I N E S www.pridemobility.com...
  • Page 3: Table Of Contents

    INTRODUCTION... 4 SAFETY ... 6 III. YOUR POWER CHAIR ... 16 IV. ASSEMBLY... 21 COMFORT ADJUSTMENTS... 23 VI. BATTERIES AND CHARGING ... 30 VII. CARE AND MAINTENANCE ... 34 VIII. WARRANTY... 40 Jazzy 610 Series C O N T E N T S www.pridemobility.com...
  • Page 4: Introduction

    SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. Once you understand how to safely operate and care for your power chair, it should give you years of trouble free operation and service.
  • Page 5 I N T R O D U C T I O N PRIDE OWNERS CLUB As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. From our home page, select “Owners Club”...
  • Page 6: I I . S A F E T Y

    PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
  • Page 7 I I . S A F E T Y Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Removal of grounding prong can create electrical hazard.
  • Page 8: General Guidelines

    GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor, physical therapist, etc.).
  • Page 9: Weight Limitations

    Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 10: Freewheel Mode

    WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair. In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to have a maximum slope of 5°...
  • Page 11: Public Streets And Roadways

    Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution.
  • Page 12 WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher than 2 in. (5 cm) unless you have the assistance of an attendant. WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle.
  • Page 13: Removable Parts

    Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VI. “Batteries and Charging.” WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help.
  • Page 14: Prescription Drugs/Physical Limitations

    Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer: ! Turn off the power to the controller.
  • Page 15 WARNING! Although the power chair seat has passed the necessary testing requirements for cigarette smoke, Pride recommends that you adhere to the following safety guidelines: Do not leave lit cigarettes unattended. Keep ashtrays a safe distance from the seat cushions. Always make sure cigarettes are completely extinguished before disposal.
  • Page 16: Iii. "Your Power Chair

    I I I . Y O U R THE JAZZY 610 SERIES POWER CHAIR Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assem- blies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
  • Page 17: I I I . Y O U R P O W E R C H A I R

    I I I . Y O U R Suspension: ATX Suspension (Active-Trac with extra stability) Drive Wheels: 10 in. (25.4 cm), pneumatic or solid available Front Caster Wheels: 5 in. (12.7 cm), solid Rear Caster Wheels: 6 in. (15.24 cm), solid Maximum Speed:¹...
  • Page 18: Electrical Components

    I I I . Y O U R P O W E R C H A I R REAR SHROUD FASTENERS TRAPEZE BARS FRONT COVER MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 610 Series Power Base ELECTRICAL COMPONENTS The electrical components are located inside the power base. The ammeter and the charger power cord receptacle are located on the right side of the power base.
  • Page 19 I I I . Y O U R Controller Connector: This is where the controller connects to the power base. Each controller uses a different type of cable. Regardless of which type of controller is used, the cable must be secured to the seat assembly and not allowed to drag on the floor.
  • Page 20: Manual Freewheel Levers

    I I I . Y O U R MANUAL FREEWHEEL LEVERS The Jazzy 610 has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and maneuver the chair manually. WARNING! Do not use the power chair while the drive motors are disengaged! Do not disengage the drive motors when the power chair is on an incline, as the unit could roll on its own! Only engage the freewheel mode when on a level surface.
  • Page 21: Assembly

    INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
  • Page 22: Seat Installation

    Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. Most seats are attached to the power base with the Universal Mount- ing System (UMS). The UMS consists of universal parts that may be attached to any medium-back or high-back seat, regardless of seat width or seat depth.
  • Page 23: Comfort Adjustments

    C O M F O R T COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest angle, foot platform height and angle, and controller position. NOTE: If your power chair is equipped with a Synergy Seat, Specialty Seat, or TRU-Balance Power Position- ing System, refer to the seat adjustment information contained in separate manuals.
  • Page 24: Seat Position

    C O M F O R T NOTE: Change the seat dump by raising or lowering only one set of towers (front or back). 10. Reinstall the retaining clips from step 8. 11. Remove each screw from the trapeze bars and apply thread lock.
  • Page 25: Seatback Angle Adjustment

    C O M F O R T Seatback Angle Adjustment If your power chair is equipped with an adjustable seatback, you can adjust it to four (4) different angles: 90°, 102°, 105°, or 107°. To adjust the seatback angle: 1. Remove the adjusting screws from each seat hinge. See figure 15.
  • Page 26: Controller Position

    C O M F O R T Controller Position You can move the controller in toward or out away from the armrest, or change the position of the controller for ei- ther left-hand or right-hand use. WARNING! Do not place the controller cable so that it can be pinched in the seat frame or the power base frame.
  • Page 27 C O M F O R T Foot Platform Height Adjustment The foot platform height is easily adjusted to several differ- ent heights. To raise or lower the foot platform: 1. Remove the quick release fasteners from the foot plat- form bracket.
  • Page 28: Swing-Away Footrests

    C O M F O R T Foot Platform Angle Adjustment You can adjust the angle of the foot platform with a hex key. See figure 19. To adjust the foot platform angle: 1. Flip up the foot platform and locate the setscrew and jam nut.
  • Page 29 C O M F O R T Heavy Duty Drop-in Leg Rests You can adjust the forward/back position, as well as the length of the heavy duty drop-in leg rests. See figure 22. To adjust the forward/back position: 1. Remove the adjustment bolts from the side rails. 2.
  • Page 30: Batteries And Charging

    V I . B A T T E R I E S BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge.
  • Page 31: Battery Break-In

    V I . B A T T E R I E S WARNING! If your battery charger has not been tested and approved for outdoor use, then do not expose it to adverse or extreme weather conditions. If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors.
  • Page 32: Frequently Asked Questions (Faqs)

    V I . B A T T E R I E S Frequently Asked Questions (FAQs) How does the charger work? The battery charger takes the standard electrical outlet voltage (alternating current) and converts it to 24 VDC (direct current). The power chair batteries use direct current to run your power chair. When the battery voltage is low, the charger works harder to charge the battery.
  • Page 33 V I . B A T T E R I E S WARNING! Corrosive chemicals contained in batteries. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Why do my new batteries seem weak? Deep-cycle batteries employ a much different chemical technology than that used in car batteries, nickel-cadmium (nicads), or in other common battery types.
  • Page 34: Care And Maintenance

    V I I . C A R E CARE AND MAINTENANCE Your Jazzy 610 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Pride Provider. Preventive maintenance is very important.
  • Page 35: Daily Checks

    V I I . C A R E ! All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. ! The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
  • Page 36 V I I . C A R E Yearly Checks Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. Storage Your power chair should be stored in a dry place, free from temperature extremes.
  • Page 37: Battery Replacement

    V I I . C A R E AXLE KEY DRIVE WHEEL WASHER DRIVE WHEEL NUT Figure 24. Jazzy 610 Drive Wheel Follow these easy steps for a quick and safe repair for both pneumatic and solid tires: 1. Turn off the power to the controller. 2.
  • Page 38 V I I . C A R E A N D M A I N T E N A N C E REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM LABEL FRONT BATTERY REAR BATTERY Figure 26. Battery Installation www.pridemobility.com Jazzy 610 Series...
  • Page 39: Corrective Maintenance

    V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Turn off the power to the controller. 2. Make sure that the power chair is in drive mode. See III. “Your Power Chair.” 3.
  • Page 40: Warranty

    V I I I . LIFETIME LIMITED WARRANTY For the lifetime of your power chair from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship: Structural frame components, including: ! Main Frame...
  • Page 41 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 42 N O T E S www.pridemobility.com Jazzy 610 Series...
  • Page 43 Quality Control - Jazzy 610 Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2897* Product Serial #...
