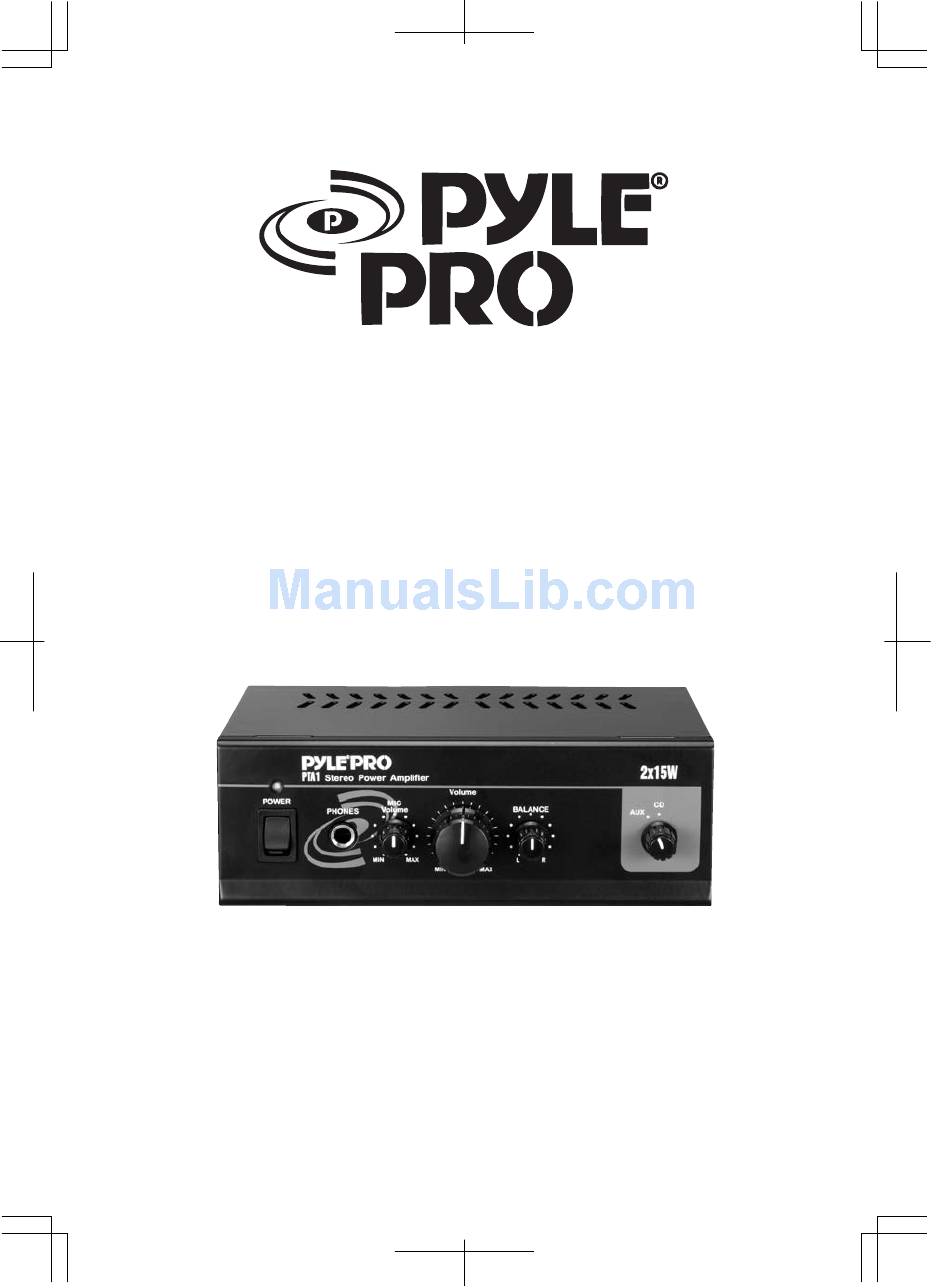

- Page 1 PTA1 2X15 Watt Stereo Power Amplifier www.pyleaudio.com...
- Page 2 It can be used in meeting halls, house, restaurant, schools, stores, or for paging systems. PTA1 features a PAGER-MIXING function that offers the flexibility of using it at paging or musical events. Please read this manual thoroughly before you attempt to set up and use the amplifier.

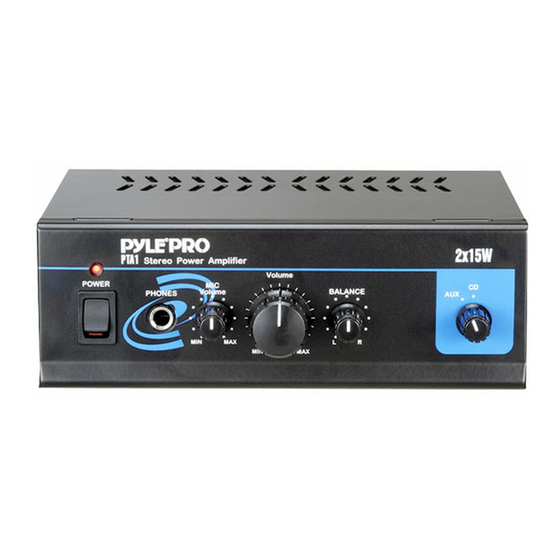

- Page 3 Features and controls 1. Power ON LED Indicator -Lights to indicate power is turned on. 2. 1/4"PHONE JACK -Accepts headphones with 1/4" plug. 3. MIC VOLUME CONTROL -Lets you adjust the volume of connected MIC to the proper setting. 4. MUSIC VOLUME CONTROL -Lets you adjust the volume of music output from the sources of AUX OR CD.
- Page 4 music will be existed at the same time. It is similar like playing at KARAOKE events. 8. 1/4" MIC INPUT JACK -Lets you connect a microphone with a 1/4" plug. 9. AUX/CD RCA INPUT -Lets you connect most high-level audio sources such as CD player, tape deck, tuner, camcorder or VCR.
- Page 5 CARING FOR YOUR PYLE PRO AMPLIFIER Your Pyle Pro Amplifier is an example of superior design and craftsmanship. The following suggestions will help you care for your amplifier so you can enjoy years of use : *Keep the amplifier dry. If it gets wet, wipe immediately. *Use the amplifier only in well-ventilated installations.
-
Page 6: Troubleshooting
Connecting two 4-8 ohm speakers in stereo mode. Connecting four 8 ohm speakers in stereo mode. TROUBLE SHOOTING No power The fuse might be blown. Check the amplifier's fuse and replace it if necessary. No sound Sound source or speakers Check all connections. - Page 7 Limited warranty All PYLE PRO products are carefully constructed and tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for one (1) year from the date of purchase. This warranty is limited to the original retall purchaser of the amplifier.
-
Page 8: Specifications
SPECIFICATIONS Output power, 2 channels driven 4-OHM, 1 KHz, 1% THD. 3Wx2 4-OHM, 1 KHz, 10% THD. 4Wx2 Peak Power 15Wx2 Total Harmonic Distortion, 1 KHz Rated Power 0.3% Input Sensitivity, 1 KHz ,4-ohm Rated Power 150mV 150mV 2. 5mV Signal to Noise Ratio, 1 KHz, 4-ohm Rated Power 75dB 75dB...
