Summary of Contents for Pyle Pro PT-600A

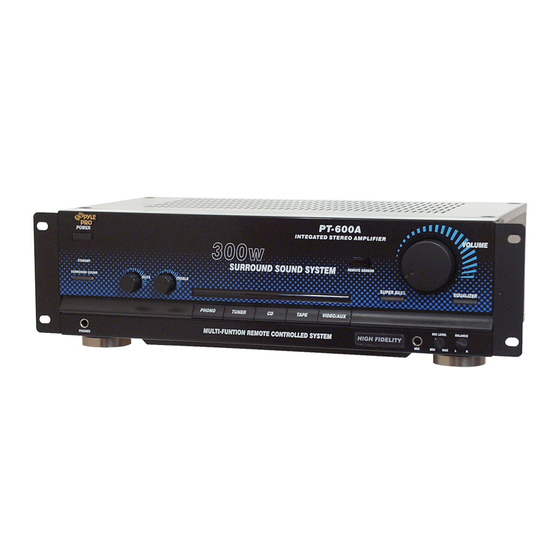

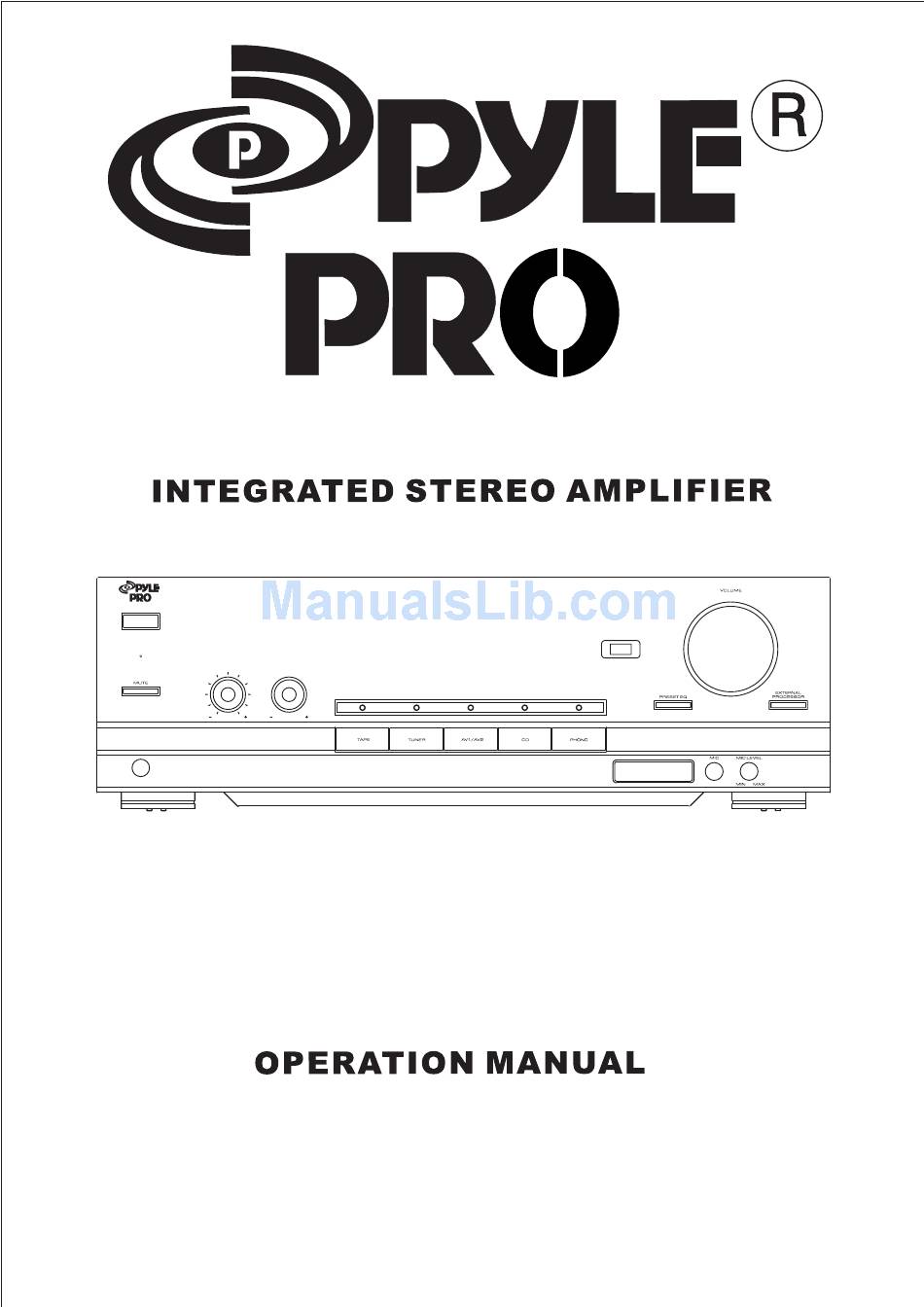

- Page 1 PT-600A POWER INTEGRATED STEREO AMPLIFIER REMOTE SENSOR BASS TREBLE PHONES...
- Page 2 PRECAUTIONS Thank you for purchasing this HI-FI product. Taking time to read these operating instructions carefully before use Do not remove the case and bottom panel will acquaint you fully with all its features and help ensure Any inspections or adjustments inside the unit optimum performance.
- Page 3 CONNECTIONS Connection precautions When connecting, either disconnect the power plug from the power outlet or turn off the unit’s power using the POWER switch. Check the left and right channels and connect properly (Left to L and Right to R). Insert the plugs securely.
- Page 4 CONNECTIONS Speaker systems PHONO Connect the speaker systems to the SPEAKERS terminals Connect the turntable’s output cord L (white) plug to the L on the rear panel of the unit with the speaker cords. PHONO terminal and the R (red) plug to the R terminal. When viewed from the front (the listening position), the If your turntable is equipped with a grounding cable, speaker mounted on the left should be connected to the L...
-
Page 5: Panel Information
PANEL INFORMATION POW ER REMOTE SENSOR BA SS TRE BLE PH O NE S 18 17 16 POWER SWITCH 11. AV1/AV2 Power is supplied to the amplifier when this switch is depressed and This switch is pressed when this unit is connected to the external the power is switched off when the switch is released. -
Page 6: Operating Procedures
OPERATING PROCEDURES REMOTE SYSTEM TAPE TUNER RIGH T LE FT INTEGRATED CIRCUIT TAPE AC 220V - 230V ~50Hz PHONO TUNER PLAY PLAY Ω A U D IO SP E A K E R S6 ~ 8 Before starting operation Check that the controls have been set to the following 2.Operate the program source unit. -
Page 7: Operation
OPERATION REMOTE CONTROL Remote Controlling Instructions The remote control box can directly control majority of system functions of HI-FI SYSTEM. The functions include power control of the whole system, Volume control, sound field control, CD operation control, Tuner operation control and also source control function. -
Page 8: Specifications
SPECIFICATIONS Signal to noise ratio (short-circuit, A-network) Power output Min. RMS, both channels driven, from 40-20 kHz, with no more PHONO……………….60dB than 0.1% total harmonic distortion. TUNER, TAPE PLAY….70 dB 50 watts per channel into 6 ohms. Power requirements Load Impedance…………………..6 ohms Power voltage…….220V ~ 50Hz Total Harmonic Distortion………less than 0.05% at 1/2 rated For U.K………240V ~ 50Hz...
