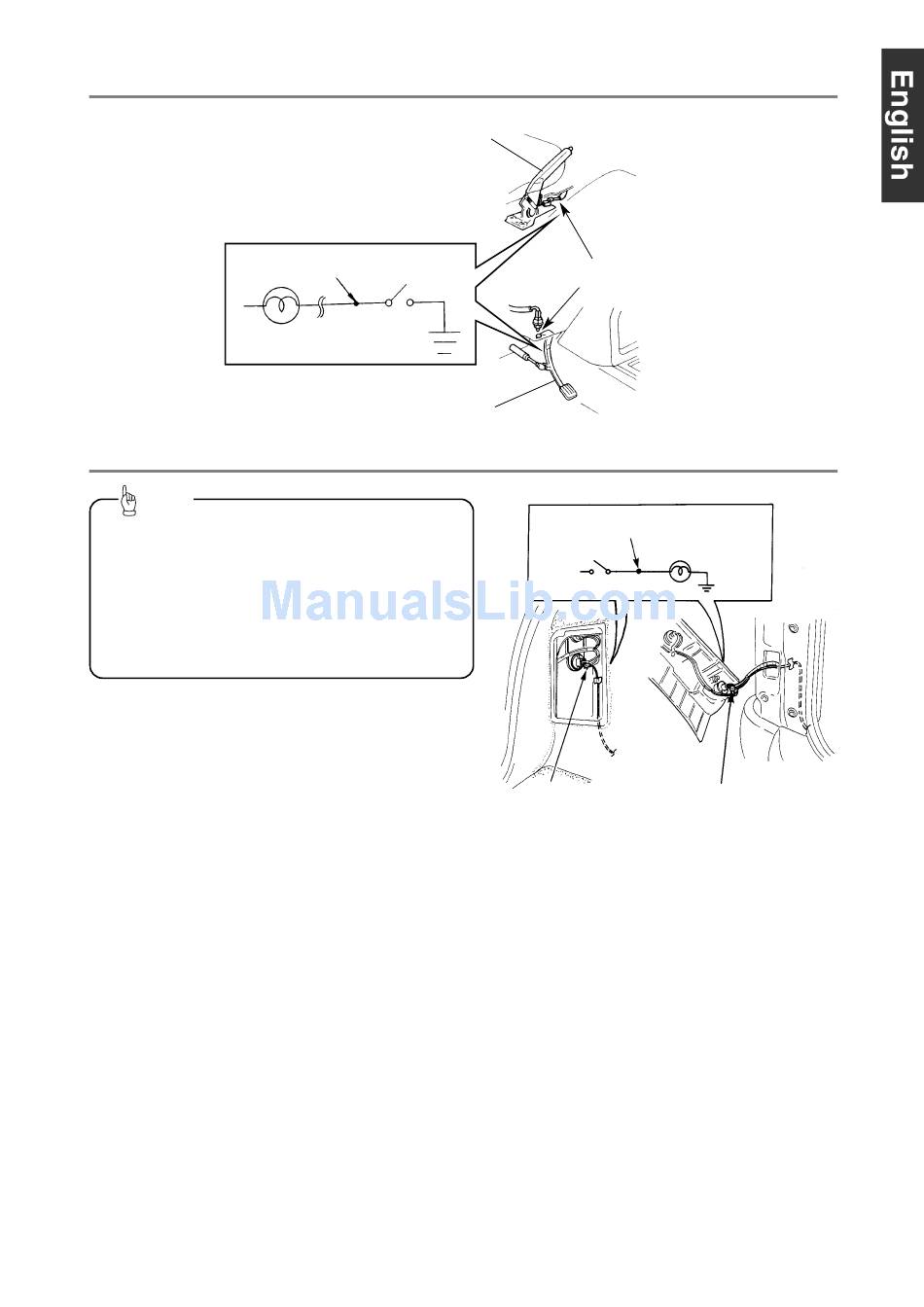

- A connecting the point for parking brake (example) -

Attach a splicing
connector at this location.
Parking brake
signal wire

- A connecting point for the reverse signal (example) -

Tip
• • Be sure to connect the reverse signal wire. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
• • Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
Hand-operated
Parking brake
Parking brake
Signal Wire
Foot-operated
Parking brake
Attach a splicing
connector at this location.
Reverse signal wire
- 11 -
Reverse lamp
Reverse signal wire
