Page 1: User Manual
Manual Wheelchair User Manual 3H01-INS-LAB-RevA09 © GF Health Products, Inc. July 2009 Read this manual before operating your wheelchair. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com... -
Page 2: Table Of Contents
7 MAINTENANCE .................23 8 TROUBLESHOOTING ..............28 9 LIMITED WARRANTY ..............29 10 INDEX ..................31 GF Health Products, Inc. is not responsible for typographical errors. Packaging, warranties, products and specifications are subject to change without notice. Graham-Field, Everest & Jennings, E&J and Advantage are registered trademarks of GF Health Products, Inc. -
Page 3: Introduction
® Field wish to assure you of our continuing commitment to provide in- novation and quality in our products. The Advantage is a manual, folding, lightweight wheelchair, suitable for frequent users who require a light- weight, portable wheelchair, fitted to their anatomy, without the need of customization or alteration to the center of gravity. - Page 4 The person performing adjustments on the Advantage has the responsi- bility of making certain that the user can safely operate the wheelchair with the adjustments selected. This person must evaluate the user's abil- ity, weight, physical condition, the environment in which the wheelchair will be used, and the terrain over which the wheelchair will travel.
-
Page 5: Important Safety Precautions
Protect yourself and your wheelchair by having your Advantage serviced regularly. Whenever any part of your Advantage is not functioning prop- erly, contact your Graham-Field dealer immediately, as a hazardous situ- ation could result, causing personal injury or damage to your wheelchair. - Page 6 WARNING: Unauthorized modification or the use of non-Everest & Jennings® replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous con- dition resulting in serious personal injury. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 7 Wheel locks are only intended to keep the wheelchair in place when it is at a complete stop. WARNING: GF Health Products, Inc. specifically disclaims re- sponsibility for any personal injury or property damage which may occur during any use which does not comply with federal, state, or local laws or ordinances.
-
Page 8: Getting Started

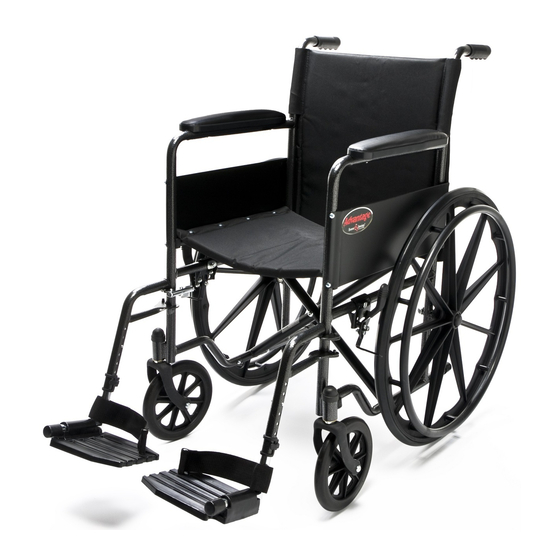

3 GETTING STARTED Please familiarize yourself with main components, identified in Advantage illustration below. Designs and specifications are subject to change without notice. back upholstery handgrip armpad push handle/ back post rear wheel seat upholstery footrest anti-tipper (optional) handrim wheel lock cross brace caster housing frame caster fork caster wheel... -
Page 9: Handling Tips
® to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Advantage over if it is used improperly. We urge you to learn the characteristics of your wheelchair. - Page 10 2. Rotate both casters fully forward: Go forward, and then back the wheelchair toward the object to swing the casters fully forward. 3. Reach only as far as your arm will extend without changing your sitting position. If in doubt, reposition the wheelchair or ask for assistance. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 11 Descent should be made slowly and safely by grasping the handrims; however, use care, as friction heat will be generated. We recommend the use of gloves to reduce the effects of friction heat, but going slower is a better alternative. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 12 If you encounter steps and there is no ramp available, avoid the steps by utilizing the disabled desig- nated elevators now required in most locations. WARNING: Never attempt to negotiate steps, stairs or escala- tors in your Advantage. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
-
Page 13: Adjustments
5 ADJUSTMENTS The Advantage offers several adjustments to make it easier and more comfortable to drive. Section 7, MAINTENANCE, offers preventive main- tenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. - Page 14 ARMS Note: Fixed arms are not removable. Only detachable Advantage arms, as shown below, are removable. Remove arm 1. Depress arm release right arm pin until it unlocks. 2. Hold arm by center of armpad. Lift straight up and off. release pin Install arm Hold arm by center of armpad.
- Page 15 2. Swing footrest inward. 3. Ensure that swingaway release lever is locked in a remove footrest (left shown) rearward position, toward back of wheelchair. WARNING: Ensure that footrests are locked in place before oc- cupying or operating wheelchair. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 16 4. Repeat steps 1-3 for the adjust length other footplate exten- sion. 5. Ensure that both footplate extensions are securely fastened and that minimum ground clearance is 2 inches. WARNING: Ensure that footplates are securely fastened before occupying or operating wheelchair. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 17 3. Ensure that legrest is locked in place and that swingaway release lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure that legrests are locked in place before oc- cupying or operating wheelchair. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 18 2. To return panel to position, hold the panel and rotate downward. The panel will stop at the proper position. WARNING: Ensure that legrest panels are locked in place before occupying or operating wheelchair. Adjust legrest footplate extension length See Adjust footplate extension length in Footrest—Detachable, Swingaway section. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 19 Check the crossbraces to ensure that the bolt and nut securing both crossbraces in the center of the wheelchair are secure (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). Use an M13 wrench and M5 hex key to tighten. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 20 5. Repeat steps 1-4 for other wheel lock. Tighten the adjustment bolts securely to eliminate wheel lock movement on frame. WARNING: Ensure that wheel locks are adjusted so that they lock in place appropriately before occupying or operating wheelchair. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
-
Page 21: Transporting The Advantage
The Advantage can easily be transported by folding the wheelchair: 1. Detach front rigging from wheelchair. 2. Remove the seat cushion, if so equipped. - Page 22 WARNING: Do not place your hand between seat rail and side panel. 2. Attach footrests or legrests to wheelchair. 3. Reinstall the seat cushion, if so equipped. WARNING: Ensure that footrests or legrests are locked in place before occupying or operating wheelchair 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
-
Page 23: Maintenance
Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. When you believe that a component or part of your Advantage is not functioning properly, contact your Graham-Field dealer immediately, as a potentially hazard- ous condition could result. - Page 24 Remember, your Graham-Field dealer knows your wheelchair best when it comes to service and repairs. Contact your dealer with any questions or concerns regarding the safe operation and maintenance of your wheel- chair. Regular maintenance is essential for your safety and continued operation of your wheelchair. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 25 WARNING: When in use, anti-tippers must be installed in the downward position. Check handgrips Check handgrips at least once a week. Ensure that they are not ripped; ensure that they are tight and securely fastened. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 26 Check backposts / push handles Check backposts at least once a month. Ensure that all mounting hard- ware is securely fastened and that the backposts are not bent or dam- aged. Contact your dealer if you observe cracking or peeling paint or plating. 3H01-INS-LAB-RevA09, July 2009 • Advantage User Manual...
- Page 27 If equipped with heel loops, ensure the anchor bolts are tight and secure. Cleaning your Advantage Wipe off the frame frequently, at least once a week, using a soft cloth. Dry the wheelchair immediately if exposed to moisture. Clean the frame every three months with a mild soap and water solution.
-
Page 28: Troubleshooting
8 TROUBLESHOOTING Continual use of your Advantage necessitates maintenance, especially if the factory-set adjustments have been altered. The following trouble- shooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field dealer for assistance. -
Page 29: Limited Warranty
(1) repair or replacement of any defec- tive or nonconforming part or product or (2) a credit and/or refund of the original selling price made to GF Health Products, Inc.'s initial customer on a prorated or depreciated basis. GF HEALTH PRODUCTS, INC.’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE LIMITED TO SUCH RE- PAIR, REPLACEMENT, CREDIT AND/OR REFUND. - Page 30 For warranty service, please contact the authorized dealer from whom you acquired your GF Health Products, Inc. product. In the event you do not receive satisfactory warranty service, please contact GF Health Products, Inc. at the address on the back cover.
-
Page 31: Index
10 INDEX Adjustments 13 Ramps and Inclines 11 Advantage, illustration 8 Reaching / bending 10 Anti-tippers, check 25 Rear wheel adjustment, check 26 Arm, install 14 Rear wheels 13 Arm, remove 14 Arms, check 26 Safety precautions 5 Backposts, check 26 Tires, check 25 Balance 9 Tools, for adjustment, list 13 Tools, for maintenance, list 24 Casters 13 Transfer activities 9 Caster stems, check 27 Transporting the Advantage 21 Caution, significance 4 Troubleshooting 28 Cleaning your Advantage 27 Crossbraces, tighten 19 Upholstery, check 26 Curbs and steps 12 WARNING, significance 4 Elevating legrest, attach 17 Warnings 5 Elevating legrest, remove 17 Warranty, limited 29 Elevating legrest—detachable, swinga- Wheel bearings, check 27 way 17 Wheel lock engagement, check 25 Elevating legrest elevation, adjust 18 Wheel locks, adjust 20 Elevating legrest panel position, adjust... - Page 32 GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 USA tel: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 Made in China www.grahamfield.com...
