Removal and Replacement Procedures

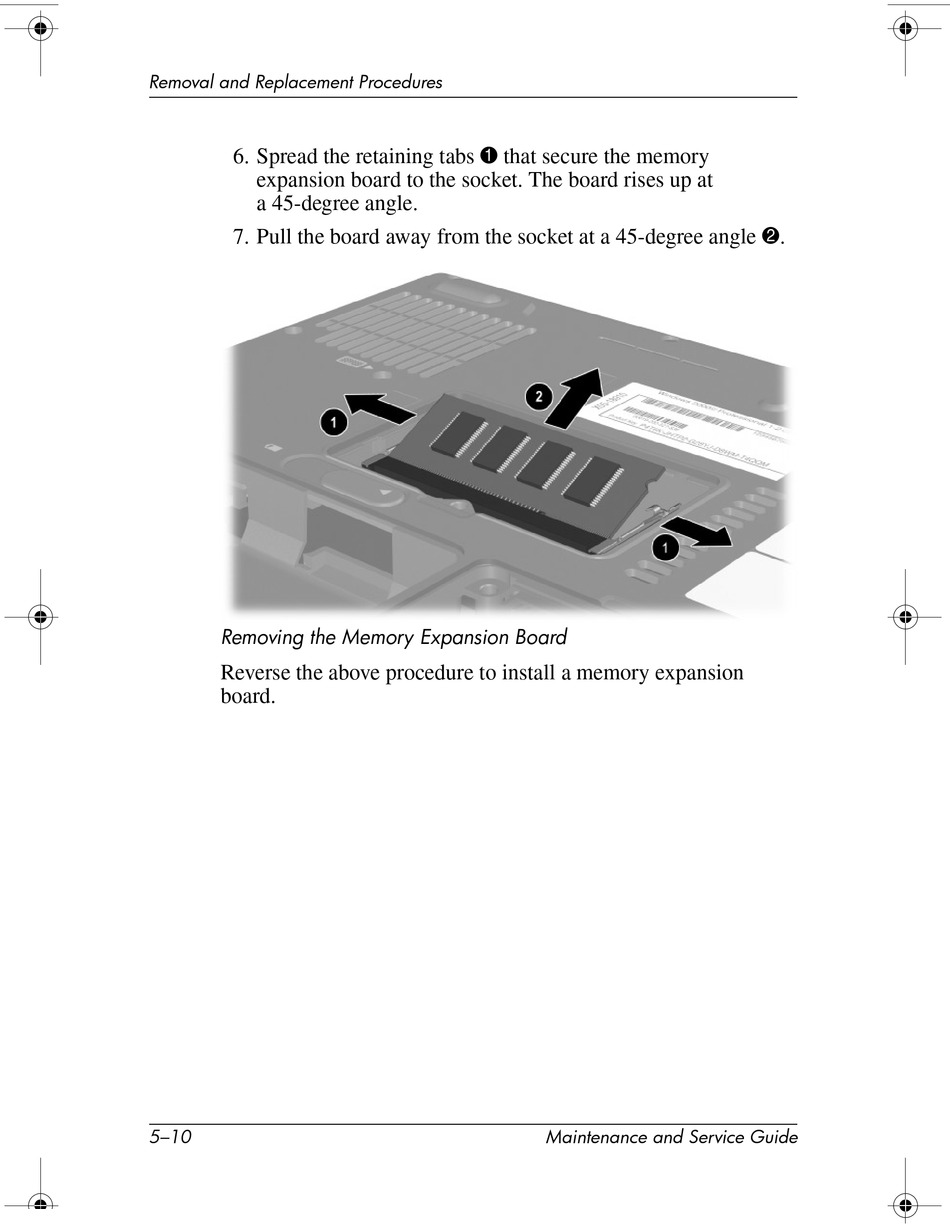

6. Spread the retaining tabs 1 that secure the memory
expansion board to the socket. The board rises up at
a 45-degree angle.
7. Pull the board away from the socket at a 45-degree angle 2.
Removing the Memory Expansion Board
Reverse the above procedure to install a memory expansion
board.
5–10
Maintenance and Service Guide
