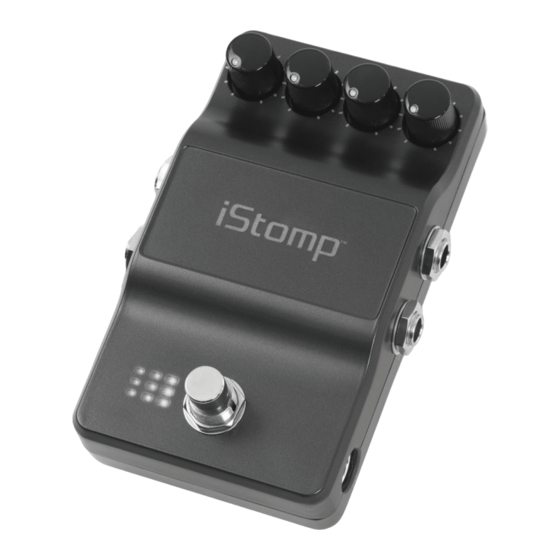

O w n e r ' s M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iStomp and is the answer not in the manual?

Questions and answers

Related Manuals for DigiTech iStomp

Summary of Contents for DigiTech iStomp

  • Page 1 O w n e r ’ s M a n u a l...

  • Page 2: Declaration Of Conformity

    Sandy, Utah 84070, USA of EN60065, EN60742, or Date: December 9, 2011 equivalent.) DSC-iOS conforms to the following Product Specifications: European Contact: Your local DigiTech Sales and Service Office or Safety: IEC 60065 -01+Amd 1 EMC: EN 55022:2006...
  • Page 3 Warning ELECTROMAGNETIC COMPATIBILITY For your protection, read the following: This device complies with part 15 of the FCC Rules and the Product Important Safety Instructions Specifications noted on the Declaration of Conformity. Operation is subject 1. Read these instructions. to the following two conditions: 2.

  • Page 4: Warranty

    DigiTech WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year. This warranty is extended, for the iStomp pedal hardware only, to a period of six years when the product has been properly registered through our website.

  • Page 5: Included Items

    LED indicator, but provides much more flexibility than any other pedal available. Using iOS devices as the programming interface, you can choose from a vast library of pedals and download them directly into the iStomp using the Stomp Shop™ app (available for free on the Apple App Store™).
  • Page 6 Features • 4 knobs for controlling pedal settings • Mono and stereo inputs & outputs • Rugged metal footswitch • DSC Download port • Power supply included • Free Stomp Shop™ App • Growing library of great pedals to choose from •...
  • Page 7 Requirements • Any iOS device capable of running iOS 4.0 or later • iTunes account ® • Internet connection to your iOS device • Stomp Shop™ App (free download from the Apple App Store™) ® iPhone, iPodTouch, and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Page 8 Pedal Interface...
  • Page 9 Indicator LED – This multi color LED indicates when the effect is turned on or off. If a delay pedal is downloaded into the iStomp, this LED will flash when used with Tap Tempo to show the delay time (see page 13 “Delay Tap Tempo” for information on Tap Tempo).
  • Page 10 Footswitch – Press this footswitch to turn the effect on and off. If a delay pedal is loaded into the iStomp hardware, this footswitch can also be used to set the delay time by enabling the Tap Tempo function (see page 13 “Delay Tap Tempo” for more...

  • Page 11: Quick Start

    Quick Start Launch the App Store from your compatible iOS device and install the DigiTech Stomp Shop app. Connect your iOS device to the iStomp (as described on page 8). Launch the Stomp Shop app. Browse through the different pedals and find one you would like to try or buy.
  • Page 12 Device Connection The iStomp connects to the iOS device via the included 30-pin to 8-pin DSC-iOS cable. Plug the 30-pin connector into the sync port on the iOS device. Next, align the 8-pin DIN connector arrow side up and plug into DSC-iOS the iStomp’s DSC download...

  • Page 13: Audio Connections

    When stereo pedals are loaded into the iStomp, you have the option of using the pedal in a mono or stereo configuration.Therefore, you can use the IN 1 and OUT 1 connections (mono), the IN 1 and both OUT 1 and OUT 2 connections (mono in/stereo out), or both IN 1/IN 2 and OUT 1/OUT 2 connections (stereo in/stereo out).

  • Page 14: Connection Diagrams

    Connection Diagrams Mono In / Mono Out PS0913DC Out 2 In 2 Out 1 (Mono) In 1 (Mono) Note: IN 2 disabled when a mono in pedal is loaded.
  • Page 15 Mono In / Dual Mono or Stereo Out PS0913DC Out 2 In 2 Out 1 (Mono) In 1 (Mono) Note: IN 2 disabled when a mono in pedal is loaded.
  • Page 16 Mono or Stereo In / Stereo Out PS0913DC Out 2 In 2 Out 1 (Mono) In 1 (Mono) Note: IN 2 disabled when a mono in pedal is loaded.

  • Page 17: Delay Tap Tempo

    Delay Tap Tempo In some of the delay pedals that the iStomp can be programmed with, the footswitch can be used as a tap tempo switch for setting the delay time during a live performance.Tap the INFO button to see which delay pedals supportTapTempo.To enable theTapTempo function, follow these steps: Press and hold the Footswitch for at least 2 seconds.The Indicator LED...
  • Page 18 . Dotted Eighth Note • ♩ Quarter Note (1:1 tap reference) Experiment with different settings to help you get the most from the delays iStomp has to offer. To exit Tap Tempo mode, press and hold the Footswitch for at least 2 seconds until the Indicator LED stops flashing and lights solid again.
  • Page 19 The pedal will now download into the iStomp hardware and when complete you have a 5 minute demo time to try out the effect.* After the 5 minutes expire, the pedal will go into bypass and revert back to the last effect loaded from My Pedals.
  • Page 20 INFO The INFO button can be tapped to present a window with a description of the pedal, knob controls information, and recommended input/output routing.
  • Page 21 PLAY Curious what a specific Stomp Shop pedal sounds like? Each pedal includes a sound clip to give you an idea what sounds the pedal can generate. Tap the PLAY button and the sound clip will begin playing. Tapping on the effect image will toggle the effect on and off so you can hear what the sound clip sounds like with and without the effect.
  • Page 22 Tap the BUY button and confirm your purchase. The pedal will now download into the My Pedals view of the Stomp Shop app indicating that you now own it. From here you can download the pedal into the iStomp hardware.
  • Page 23 LOAD Changing your iStomp pedal takes less than a minute. Connect your iOS device to the iStomp. In the My Pedals view of the app, select the pedal that you want to download. Tap the LOAD button and confirm downloading the pedal.
  • Page 24 You can customize the LED color for any effect you load into the iStomp hardware. Connect your iOS device to the iStomp Select a pedal that you own in the My Pedals view. Tap the LED button and the LED Color window will appear.
  • Page 25 Stomp Shop.When you buy and download any of these pedals to your iStomp hardware, you can customize the pedal by adding the corresponding effect label to the top of the chassis.

  • Page 27: Specifications

    Specifications Controls: On/Off Footswitch, 4 Control Knobs Audio Jacks: Input 1 (Mono), Input 2, Output 1 (Mono), Output 2 Connector Cable: Proprietary DSC-iOS Cable Input Impedance: 500 kOhm (mono), 1 MOhm (stereo) Output Impedance: 100 Ohms Frequency Response: 20 Hz – 20 kHz +/- 1.7 dB (through DSP) SNR: >101dB (A weighted) Power Consumption:...
  • Page 28 PH (801) 566-8800 FAX (801) 566-7005 DigiTech is a registered ® trademark of Harman Designed in the USA Copyright - Harman Please visit us Printed in China on the World Wide Web at: iStomp Downloadable Pedal www.digitech.com Owner’s Manual - 5001814-B...
