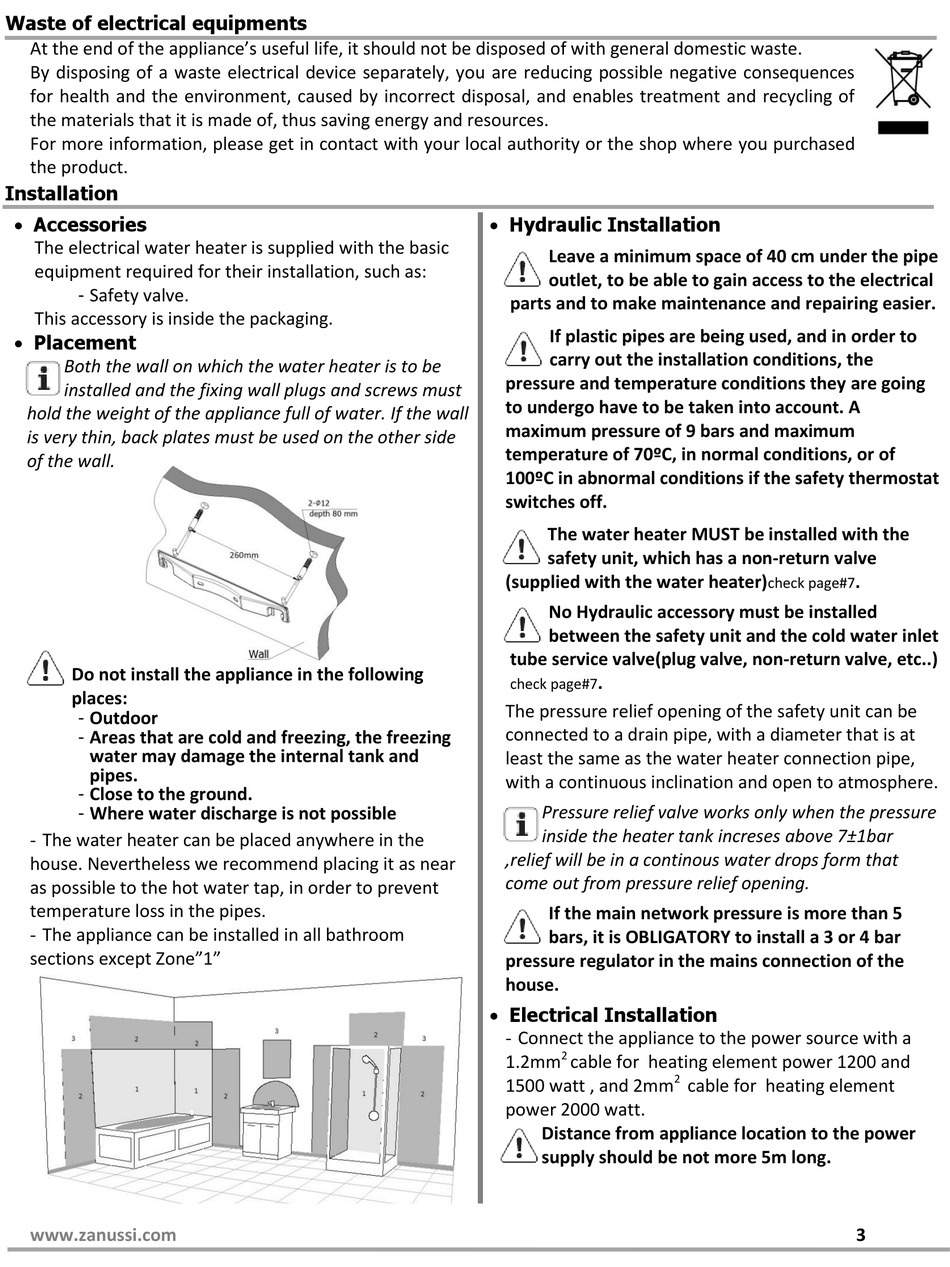

Waste of electrical equipments

At the end of the appliance's useful life, it should not be disposed of with general domestic waste.
By disposing of a waste electrical device separately, you are reducing possible negative consequences
for health and the environment, caused by incorrect disposal, and enables treatment and recycling of
the materials that it is made of, thus saving energy and resources.
For more information, please get in contact with your local authority or the shop where you purchased
the product.

Installation

 Accessories
The electrical water heater is supplied with the basic
equipment required for their installation, such as:
- Safety valve.
This accessory is inside the packaging.
 Placement
Both the wall on which the water heater is to be
installed and the fixing wall plugs and screws must
hold the weight of the appliance full of water. If the wall
is very thin, back plates must be used on the other side
of the wall.
Do not install the appliance in the following
places:
- Outdoor
- Areas that are cold and freezing, the freezing
water may damage the internal tank and
pipes.
- Close to the ground.
- Where water discharge is not possible
- The water heater can be placed anywhere in the
house. Nevertheless we recommend placing it as near
as possible to the hot water tap, in order to prevent
temperature loss in the pipes.
- The appliance can be installed in all bathroom
sections except Zone"1"
www.zanussi.com
 Hydraulic Installation
Leave a minimum space of 40 cm under the pipe
outlet, to be able to gain access to the electrical
parts and to make maintenance and repairing easier.
If plastic pipes are being used, and in order to
carry out the installation conditions, the
pressure and temperature conditions they are going
to undergo have to be taken into account. A
maximum pressure of 9 bars and maximum
temperature of 70ºC, in normal conditions, or of
100ºC in abnormal conditions if the safety thermostat
switches off.
The water heater MUST be installed with the
safety unit, which has a non-return valve
(supplied with the water heater)
No Hydraulic accessory must be installed
between the safety unit and the cold water inlet
tube service valve(plug valve, non-return valve, etc..)
.
check page#7
The pressure relief opening of the safety unit can be
connected to a drain pipe, with a diameter that is at
least the same as the water heater connection pipe,
with a continuous inclination and open to atmosphere.
Pressure relief valve works only when the pressure
inside the heater tank increses above 7±1bar
,relief will be in a continous water drops form that
come out from pressure relief opening.
If the main network pressure is more than 5
bars, it is OBLIGATORY to install a 3 or 4 bar
pressure regulator in the mains connection of the
house.
 Electrical Installation
- Connect the appliance to the power source with a
2
1.2mm
cable for heating element power 1200 and
1500 watt , and 2mm
power 2000 watt.
Distance from appliance location to the power
supply should be not more 5m long.
check page#7
2
cable for heating element
.
3
