  • Page 1: User Guide

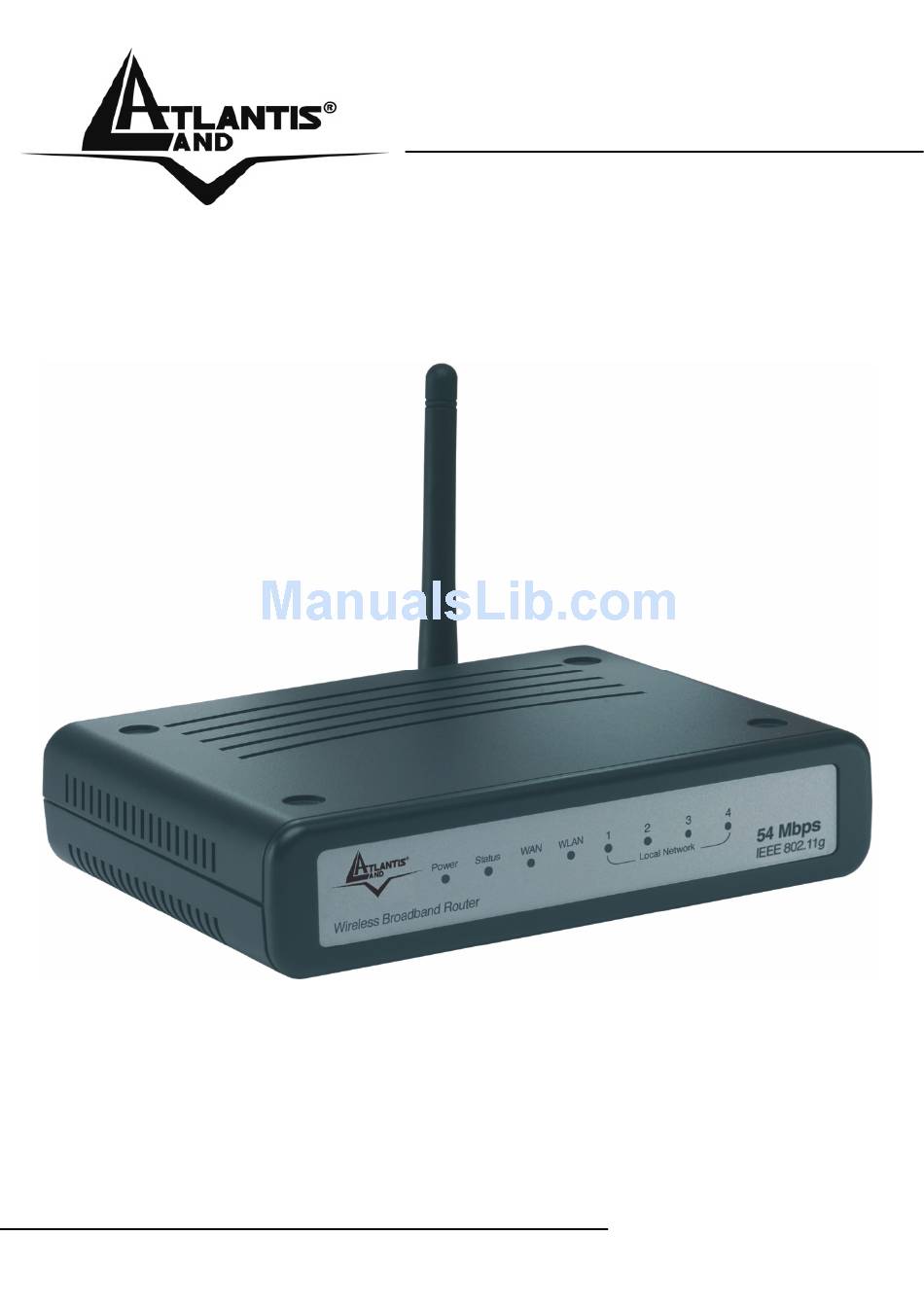

    Wireless Broadband Router A02-RB-W54 USER GUIDE A02-RB-W54(V1.1) _ME01 Where solutions begin Company certified ISO 9001:2000...
  • Page 2 Where solutions begin Company certified ISO 9001:2000...

  • Page 3: Table Of Contents

    Wireless Broadband Router INDEX CHAPTER 1: INTRODUCTION 1.1 An Overview of the del Wireless Broadband Router 1.2 Package Contents 1.3 Technical Features 1.4 System Requirements 1.5 Setup CHAPTER 2: USING WIRELESS BROADBAND ROUTER 2.1 Cautions for using the Wireless Broadband Router 2.2 The Front LEDs 2.3 The Rear Ports 2.4 Cabling...
  • Page 4 Wireless Broadband Router 3.6.1 Basic 3.6.2 DHCP 3.7 Access Control 3.7.1 Filter 3.7.1.2 MAC Filter 3.7.1.3 IP Filter 3.7.1.4 URL Blocking 3.7.1.5 Domain Blocking 3.7.1.6 Protocol Filter 3.7.2 Virtual Server 3.7.3 Special AP 3.7.4 DMZ 3.7.5 Firewall Rule 3.8 System 3.8.1 Password 3.8.2 Time 3.8.3 Device Information...
  • Page 5 Wireless Broadband Router APPENDICE C: TECHNICAL FEATURES APPENDICE D: SUPPORT A02-RB-W54(V1.1)_ME01 (V1.0 January 2007)
  • Page 6 Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners.
  • Page 7 Wireless Broadband Router Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels. CE/EMC Restriction of Liability The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.

  • Page 8: Chapter 1: Introduction

    Wireless Broadband Router CHAPTER 1: Introduction Congratulations on your purchase of Atlantis Land Wireless Broadband Router. This integrated access device combines Internet gateway functions with wireless LAN and Fast Ethernet switch. It provides a complete solution for Internet surfing and office resources sharing, and it is easy to configure and operate for every users.

  • Page 9: Package Contents

    Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS • Easy Management and Remote Management via Web Browser (HTTP) • Range for Indoor of 30 ~ 50 meters (depends on the environment) • Range for Outdoor of 50 ~ 200 meters (depends on the environment) A02-RB-W54 Pag. 2...

  • Page 10: System Requirements

    Fix the direction of the antennas. Try to place the Wireless Router in a position that can best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be. The antenna’s position enhances the receiving sensitivity. A02-RB-W54 Pag. 3...

  • Page 11: Chapter 2: Using Wireless Broadband Router

    • Only use the power adapter that comes with the package. • Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. 2.2 The Front LEDs...

  • Page 12: The Rear Ports

    There are one 2 dBi Gain Antenna in the rear panel for Reverse SMA(5) wireless connection. After the device has turned on, press it to reset the Reset(1) device or restore to factory default settings. Use a pin- A02-RB-W54 Pag. 5...

  • Page 13: Cabling

    While the WAN is link up to the ADSL/Cable modem, the WAN port’s Link/ACT LED will light up. • While the LAN is link up to the computer system, the LAN port’s Link/ACT LED will light up. A02-RB-W54 Pag. 6...
  • Page 14 Wireless Broadband Router A02-RB-W54 Pag. 7...

  • Page 15: Chapter 3: Configuration

    Ethernet network adapter must be installed. If not, please refer to MS Windows related manuals. Any TCP/IP capable workstation can be used to communicate with or through the Wireless Broadband Router to configure other types of workstations, please consult the manufacturer’s documentation. A02-RB-W54 Pag. 8...

  • Page 16: Windows 95/98/Me

    2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC. 3. Click Properties. Select the IP Address tab. In this page, click the Obtain an IP address automatically radio button. A02-RB-W54 Pag. 9...

  • Page 17: Windows Nt4.0

    Panel. In the Control Panel, double- click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK. A02-RB-W54 Pag. 10...

  • Page 18: Windows 2000

    2. Double-click Area Connection. 3. In the LAN Area Connection Status window, click Properties. 4. Select the Obtain an IP address automatically and the Obtain server address automatically radio buttons.). 5. Click OK to finish the configuration. A02-RB-W54 Pag. 11...

  • Page 19: Windows Xp

    2. Double-click Local Area Connection 3. In Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) click Properties. 5. Select the Obtain an IP address automatically Obtain server address automatically radio buttons Click OK to finish the configuration. A02-RB-W54 Pag. 12...

  • Page 20: Factory Default Settings

    3.2.2 LAN and WLAN Ports The parameters of LAN and WLAN ports are pre-set in the factory. The default values are shown below. WLAN 192.168.1.1 IP address Channel=6 255.255.255.0 SSID=default Subnet Mask Encryption=none A02-RB-W54 Pag. 13...

  • Page 21: Accessing The Wireless Broadband Router Web Configurator

    Username and Password is admin. Click OK The screen will show the station summary of the Wireless Broadband Router when you login into that. A Wizard setup will be appear to configure the device fastly and easily. A02-RB-W54 Pag. 14...

  • Page 22: Setup Wizard

    6 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click Next to continue. A02-RB-W54 Pag. 15...
  • Page 23 Wireless Broadband Router Step 1: Setup New Password User can change the password and then click Next to continue. A02-RB-W54 Pag. 16...
  • Page 24 Wireless Broadband Router Step2: Choose time zone Select the time zone from the drop down list. Please click Next to continue. A02-RB-W54 Pag. 17...
  • Page 25 DHCP, please click Enabled. DHCP enabled is able to automatically assign IP addresses. Please assign the range of IP addresses in the fields of Range start and Range end. Please click Next to continue. Please click Next to continue. A02-RB-W54 Pag. 18...
  • Page 26 Wireless Broadband Router Step 4: Set Internet connection The Wireless Broadband Router will attempt to auto detect your Internet Connection. A02-RB-W54 Pag. 19...
  • Page 27 If the Wireless Broadband Router is unable to auto detect your Internet connection, you will need to manually select the Internet connection type: Obtain IP automatically, Fixed IP, PPPoE, PPTP, L2TP or BigPond. Please click Next to continue. A02-RB-W54 Pag. 20...
  • Page 28 If user has enabled DHCP server, choose Obtain IP automatically (DHCP client) to have the router assign IP addresses automatically. If your ISP requires you to enter a specific host name or MAC address, please enter it in. A02-RB-W54 Pag. 21...
  • Page 29 Fixed IP: If the Internet Service Providers assign a fixed IP address, choose this option and enter the assigned IP address, subnet mask, gateway IP and DNS IP addresses for your Broadband Router. Please click Next to continue. A02-RB-W54 Pag. 22...
  • Page 30 Obtain IP Automatically: If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password and User Name, and then the ISP uses PPPoE. Choose this option and enter the required information. Please click Next to continue A02-RB-W54 Pag. 23...
  • Page 31 Specify IP: If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password, User Name and a Fixed IP Address, choose this option and enter the required information. Please click Next to continue. A02-RB-W54 Pag. 24...
  • Page 32 PPTP/L2TP Password, Your Subnet Mask required by your ISP in the appropriate fields. If your ISP has provided you with a Connection ID, enter it in the Connection ID field, otherwise, leave it to zero. Please click Next to continue A02-RB-W54 Pag. 25...
  • Page 33 Click Enable to enable wireless LAN. If user enables the wireless LAN, type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting communication to the router. Please click Next to continue A02-RB-W54 Pag. 26...
  • Page 34 The Setup wizard is now completed. The new settings will be effective after the Wireless router restarted. Please click Restart to reboot the router. If user does not want to make any changes, please click Exit to quit without any changes. A02-RB-W54 Pag. 27...

  • Page 35: Navigating The Broadband Router Web Configurator

    The screen will show the status of the Wireless Broadband Router when you login to the device. There are six main functions included in the left side of the main screen: • • Wireless • • Access Control • System • Wizard A02-RB-W54 Pag. 28...

  • Page 36: Connection Type

    IP address for the WAN, add DNS numbers, and enter the MAC address. 3.4.1 Connection Type Connection Type: Select the connection type, either DHCP client, Fixed IP or PPPoE, PPTP, L2TP or BigPond from the drop-down list A02-RB-W54 Pag. 29...
  • Page 37 Gateway: For the Specify mode, enter the specific gateway IP address that provided by your ISP. DNS 1/2: Manually specific DNS server IP address. For the Obtain IP Automatically mode, leave 0.0.0.0 hear, the DHCP server will provides DNS server automatically. A02-RB-W54 Pag. 30...
  • Page 38 Choose Specify IP if connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password, User Name and a Specify IP Address, choose this option and enter the required information. A02-RB-W54 Pag. 31...
  • Page 39 Wireless Broadband Router Click Apply to save. A02-RB-W54 Pag. 32...
  • Page 40 Choose Specify IP if connected to the Internet using a PPTP/L2TP (Dial- up xDSL) connection, enter the your IP Address, Subnet Mask, Gateway IP address, DNS IP address, Server IP address, PPTP Account and PPTP Password. Click Apply to save. A02-RB-W54 Pag. 33...

  • Page 41: Dynamic Dns

    Then, please selected one of DDNS server than fill the related information in the below fields: Host Name, User Name and Password. To use DDNS client, you have to register a DDNS Account. Click Apply to save. A02-RB-W54 Pag. 34...

  • Page 42: Wireless

    SSID Broadcast to ensure only authorized clients have access. Channel: Select a transmission channel for wireless communications. The channel of any wireless device must match the channel selected here in order for the wireless device to access the LAN and WAN via the router. A02-RB-W54 Pag. 35...

  • Page 43: Security

    Shared Key requires the user to set a WEP key to exchange data with other wireless clients that have the same WEP key. This router also supports WPA, WPA2 and WPA-PSK, WPA2-PSK.. Security: Enable or Disable the wireless LAN security. A02-RB-W54 Pag. 36...
  • Page 44 WEP Key 1 ~ 4: Enables users to create up to 4 different WEP keys. Manually enter a set of values for each key. Select a key to use by clicking the radio button next to the key. Click “Clear” to erase key values. Click Apply to save. A02-RB-W54 Pag. 37...
  • Page 45 Radius Server 1: Enter the IP address, Port used and Shared Secret by the Primary Radius Server. Radius Server 2: Enter the IP address, Port used and Shared Secret by the Secondary Radius Server. (optional) Click Apply to save A02-RB-W54 Pag. 38...

  • Page 46: Advanced

    WLAN. Antenna Transmit Power: Adjust the power of the antenna transmission by selecting from the drop down list: full, half (-3dB), quarter (-6dB), eighth (-9dB) or min. Click Apply to save. A02-RB-W54 Pag. 39...

  • Page 47: Basic

    IP Address: This is the IP address of the router. The default IP address is 192.168.1.1. Subnet Mask: Type the subnet mask for the router in the text box. The default subnet mask is 255.255.255.0 Click Apply to save. A02-RB-W54 Pag. 40...

  • Page 48: Dhcp

    IP address. Add Static DHCP: Selected Enable the Static DHCP allows you to assign a static IP address to the PC that has the IP address and MAC address mapping set in the Static DHCP List. A02-RB-W54 Pag. 41...

  • Page 49: Access Control

    IP filters, create virtual servers, define access for special applications such as games, and set firewall rules. 3.7.1 Filter Using filter to deny or allow the users to access. Five types of filters to select: MAC, IP Filter, URL blocking, Domain blocking and Protocol filter. A02-RB-W54 Pag. 42...

  • Page 50: Mac Filter

    Disabled to disable the MAC filter. • Disable: Disable the MAC filter function. • Allow: Only allow computers with MAC address listed in the MAC Table. • Deny: Computers in the MAC Table are denied Internet access. A02-RB-W54 Pag. 43...
  • Page 51 Update: Click to update information for the user, if you have changed any of the fields. Delete: Select a user from the table at the bottom of the list and click to remove the user profile. Clear: Click to erase all fields and enter new information. Click Apply to save. A02-RB-W54 Pag. 44...

  • Page 52: Ip Filter

    Update: Click to update information for the range if you have selected a list item and have made changes. Delete: Select a list item and click Delete to remove the item from the list. Clear: Click to erase all fields and enter new information. Click Apply to save. A02-RB-W54 Pag. 45...

  • Page 53: Url Blocking

    Add: Click to add the specific URL to the URL blocking list. Delete: Selected a URL from the blocking list then click the Delete button to remove the URL from the URL Blocking list. Click Apply to save. A02-RB-W54 Pag. 46...

  • Page 54: Domain Blocking

    Blocked/Permitted Domains: List domains you will Blocked or Permitted. Apply: Click to add domain to the Blocked/Permitted Domains list. Del: Select a user from the table at the bottom of the list and click Del to remove the user profile. A02-RB-W54 Pag. 47...

  • Page 55: Protocol Filter

    Enable: Click to enable or disable the Protocol filter. Name: Type the name of the user to be denied access. Protocol: Select a protocol (TCP, UDP or ICMP) to use for the virtual server. A02-RB-W54 Pag. 48...

  • Page 56: Virtual Server

    IP address of 192.168.1.2. If the port is not listed as a predefined application, you need to add it manually. The Virtual Sever profiles are listed in the table at the bottom of the page. Enable: Click to enable or disable the virtual server. A02-RB-W54 Pag. 49...
  • Page 57 4660- 4662 TCP , 4665 UDP MSN Messanger Nessuno TCP da 6891-6900 TCP 1863 TCP 6901 UDP 1863, 6901 e 5190 Servizio Numero di Porta / Protocollo File Transfer Protocol (FTP) Data 20/tcp FTP Commands 21/tcp A02-RB-W54 Pag. 50...
  • Page 58 443/tcp rlogin 513/tcp rexec 514/tcp talk 517/tcp and 517/udp ntalk 518/tcp and 518/udp Open Windows 2000/tcp and 2000/udp Network File System (NFS) 2049/tcp 6000/tcp and 6000/udp Routing Information Protocol (RIP) 520/udp Layer 2 Tunnelling Protocol (L2TP) 1701/udp A02-RB-W54 Pag. 51...

  • Page 59: Special Ap

    WAN connection. Click Disabled on a profile to prevent users from accessing the application on the WAN connection. Name: Type a descriptive name for the application. Trigger: Defines the outgoing communication that determines whether the user has legitimate access to the application. A02-RB-W54 Pag. 52...
  • Page 60 Enable: Click to enable or disable the DMZ. DMZ Host IP: Type a host IP address for the DMZ. The computer with this IP address acts as a DMZ host with unlimited Internet access. Click Apply to save. A02-RB-W54 Pag. 53...

  • Page 61: Firewall Rule

    Broadband Router provides basic firewall functions, by filtering all the packets that enter the Wireless Broadband Router using a set of rules. The rules are listed in sequential order--the lower the rule number, the higher the priority the rule has. A02-RB-W54 Pag. 54...
  • Page 62 Priority Down: Select a rule from the list and click Priority Down to decrease the priority of the rule. Update Priority: After increasing or decreasing the priority of a rule, click Update Priority to save the changes. A02-RB-W54 Pag. 55...

  • Page 63: System

    IP addresses….etc. 3.8.1 Password This function enables users to set administrative and user passwords. These passwords are used to gain access to the Wireless Broadband Router interface. Click Apply to save. A02-RB-W54 Pag. 56...

  • Page 64: Time

    This function enables users to set the time and date for the Wireless Broadband Router’s real-time clock, select properly time zone, and enable or disable daylight saving. Local Time: Displays the local time and date. Time Zone: Select the time zone from the drop-down list. A02-RB-W54 Pag. 57...

  • Page 65: Device Information

    This function enables users to view the Wireless Broadband Router’s WAN, Wireless, LAN and System configurations. • WAN: This section displays the WAN interface configuration including the MAC address, Connection status, DHCP client status, IP address, Subnet mask, Default gateway, and DNS. A02-RB-W54 Pag. 58...
  • Page 66 Wireless Broadband Router LAN interface. Click DHCP Release to release all IP addresses assigned to client stations connected to the WAN via the Wireless Broadband Router. Click DHCP Renew to reassign IP addresses to client stations connected to the WAN. A02-RB-W54 Pag. 59...
  • Page 67 Previous Page: to view the page just before the current page Next Page: to view the page just after the current page Clear Log: to delete the contents of the log and begin a new log Refresh: to renew log statistics A02-RB-W54 Pag. 60...

  • Page 68: Log Settings

    This function enables users to set Router Log parameters. SMTP Server: Type your SMTP server address here. Send to: Type an email address for the log to be sent to. Click “Email Log Now” to immediately send the current log. A02-RB-W54 Pag. 61...

  • Page 69: Statistics

    Notice: Displays important notices by the system administrator. Click Apply to save. 3.8.6 Statistics This function displays a table that shows the rate of packet transmission via the Wireless Broadband Router’s LAN, WAN and Wireless ports (in bytes per second). A02-RB-W54 Pag. 62...
  • Page 70 Wireless Broadband Router Click Reset to erase all statistics and begin logging statistics again A02-RB-W54 Pag. 63...

  • Page 71: Restart

    This function enables users to keep the Wireless Broadband Router firmware up to date. Please follow the below instructions: • Download the latest firmware from the Atlantis Land’s Web site, and save it to disk. • Click Browse and go to the location of the downloaded firmware file.

  • Page 72: Configuration

    Upon selecting the saved file, click Load and complete the restore process when the Wireless Broadband Router re-operates after it restarts. Restore Factory Default Settings: Click on Restore button to restore the access point back to its manufacture default settings. A02-RB-W54 Pag. 65...

  • Page 73: Upnp

    The ping test enables users to determine whether an IP address or host is present on the Internet. Type the host name or IP address in the text box and click Ping button to start the Ping test. A02-RB-W54 Pag. 66...

  • Page 74: Remote Management

    WAN via a Web browser. A user name and password are required to perform remote management. HTTP: Enables users to set up HTTP access for remote management. Remote IP Range: Type a range of IP addresses that can be pinged from remote locations A02-RB-W54 Pag. 67...
  • Page 75 Gaming Mode be disabled. PPTP: Enables users to set up PPTP access for remote management. IPSec: Enables users to set up IPSec access for remote management. IDENT: Default is stealth. This enables users to set port 113 stealth. A02-RB-W54 Pag. 68...

  • Page 76: Appendix A: Troubleshooting

    Check the Ethernet cable connections between the Wireless Broadband Router and the computer or hub. Check for faulty Ethernet cables. Make sure your computer’s Ethernet card is working properly. If these steps fail to correct the problem, contact your local distributor for assistance. A02-RB-W54 Pag. 69...

  • Page 77: A.1.3 Led Wlan

    In Internet Explorer, click Tools, Internet Options and then click the Delete Files ... button. When a Delete Files window displays, select Delete all offline content and click OK. (Steps may vary depending on the version of your Internet browser.) A02-RB-W54 Pag. 70...

  • Page 78: A.3 Login

    Make sure to insert Router ADSL IP in Default Gateway field of Wireless Broadband Router. Make sure that ADSL Router is correctly configured (create a port forwarding from port TCP 80 to Wireless Broadband Router IP Address). A02-RB-W54 Pag. 71...
  • Page 79 Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more A02-RB-W54 Pag. 72...
  • Page 80 What is WPA2? Question Recently approved by Wi-Fi Alliance, the new standard WPA2 Answer is an evolution of WPA (Wi-Fi Protected Access), supported by almost compatible IEEE802.11g clients. WPA standard, required to repair WEP weakness, has only a A02-RB-W54 Pag. 73...
  • Page 81 What is the IEEE 802.11g standard? Question Approved in June, 2003 as an IEEE standard for wireless Answer A02-RB-W54 Pag. 74...
  • Page 82 Follow pictures explain this: Does IEEE802.11b clients works properly with Question IEEE802.11g? Answer It is possible to use IEEE802.11b clients with IEEE802.11g Access Point. Performance will be reducing to 11Mbps to guarantee full compatibility with IEEE802.11b. A02-RB-W54 Pag. 75...
  • Page 83 A very long cable should be made useless a positive effect generate by antenna’s gain. Question What type of antenna Can I use to increase AP coverage? Here you can find our indoor antennas: Answer A02-ANT0501 A02-ANT0601 A02-ANT06D01 Please visit our website for any information. A02-RB-W54 Pag. 76...

  • Page 84: Appendix B: Regulations

    APPENDIX B: Regulations Some countries use different laws about ISM band frequency use. Please to make reference to follow table: Channel Country 1-11 USA/CANADA 1-13 ETSI(Europe) 10-11 Spain 10-13 France 1-14 Japan (MKKI Telecom) Israel 5-13 Israel A02-RB-W54 Pag. 77...

  • Page 85: Appendice C: Technical Features

    Operating: 0° ~ 40° C, Storage: -10° ~ 70° C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90% Dimensions 147 x 115 x 35 mm (W x H x D) without Antenna EMI: FCC Class B, CE Mark B A02-RB-W54 Pag. 78...

  • Page 86: Appendice D: Support

    If you have any problems with the Wireless Broadband Router, please consult this manual. If you continue to have problems you should contact the dealer where you bought this device. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
