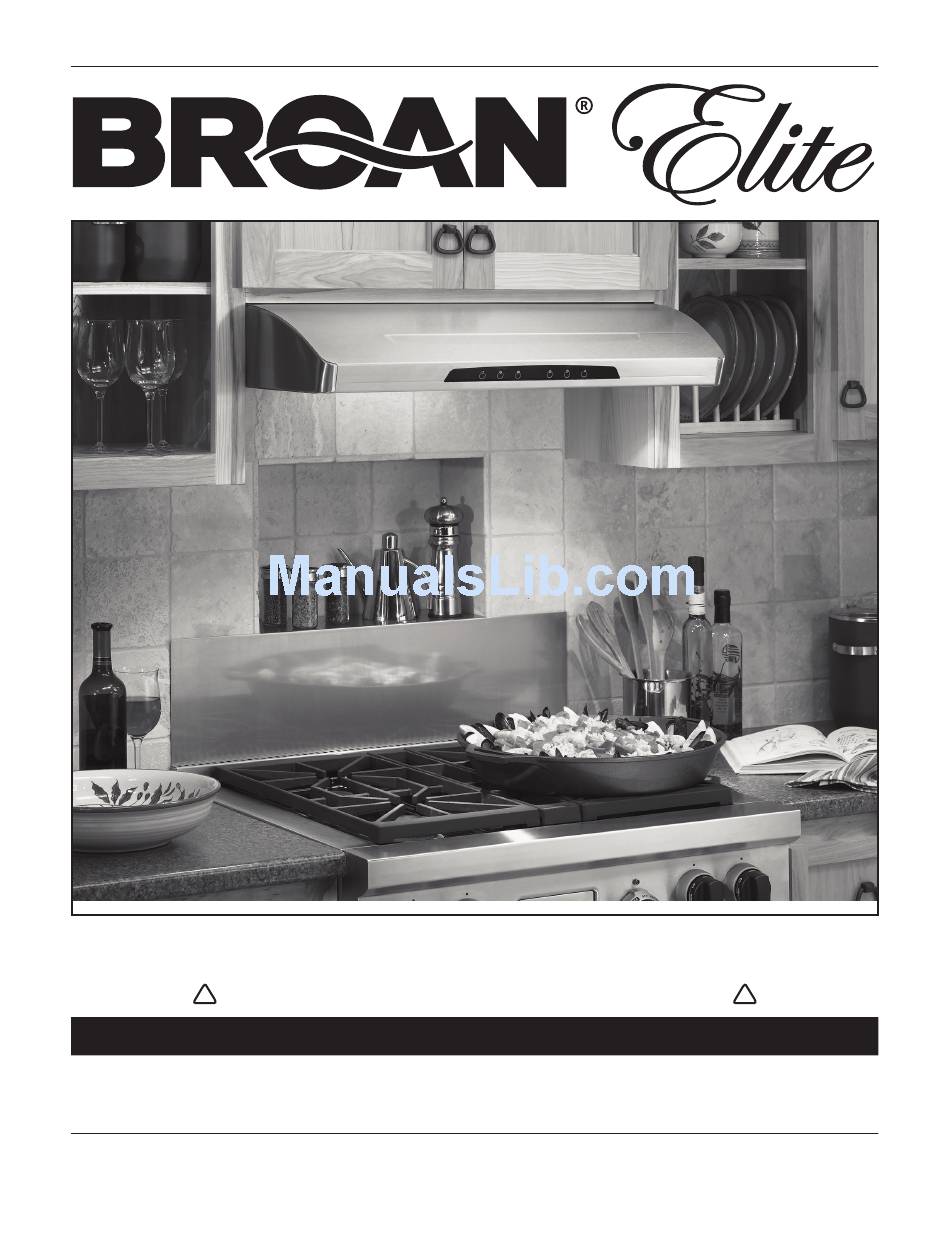

INSTALLATION INSTRUCTIONS
HB0037
MODEL E662
INTENDED FOR DOMESTIC COOKING ONLY
!
!
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
Broan-NuTone Canada Inc., 1140 Tristar Drive, Mississauga, ON L5T 1H9 (1-888-882-7626)
REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register
V06800 rev. F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broan Elite E662
Summary of Contents for Broan Elite E662
-
Page 1: Read And Save These Instructions
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13. Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453) Broan-NuTone Canada Inc., 1140 Tristar Drive, Mississauga, ON L5T 1H9 (1-888-882-7626) REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register V06800 rev. F... - Page 2 WARNING WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC TO REDUCE THE RISK OF INJURY TO PERSONS SHOCK OR INJURY TO PERSONS, OBSERVE IN THE EVENT OF A RANGE TOP GREASE THE FOLLOWING: FIRE, OBSERVE THE FOLLOWING*: Use this unit only in the manner intended by the SMOTHER FLAMES with a close-fitting lid, manufacturer.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BROAN ELITE E662 H ..........4 YSTEM 1. -
Page 4: Broan Elite E662 Hood System
Adapter and damper 3¼” x 14” Adapter and damper 3¼” x 14” (supplied with hood) to 3¼” x 10” (optional) Left and right flow deviators (supplied with cabinet blower) Cabinet blower (supplied with hood) BROAN ELITE E662 HOOD HL0055 - 4 -... -
Page 5: Install Ductwork
1. INSTALL DUCTWORK Plan where and how the ductwork will be installed. Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use 2” duct tape to seal duct joints. NOTE: When performing vertical exhaust ductwork, there must be at least 14” high free inside cabinet in order to allow cabinet blower installation. -
Page 6: Cabinet Preparation
3. CABINET PREPARATION WARNING The cabinet must be sized to support the total weight of the hood. For the E662 hood model, the total weight is 41 lb (19 kg). If the cabinet need to be reinforced, we suggest to add wood blocks the... -
Page 7: Prepare The Hood
5. PREPARE THE HOOD CREW OCATION CREW OCATION 5.1 Remove filters from the hood. Remove (3) screws holding both side panels to the hood and set aside. Remove both side panels. HO0042 5.2 Punch out 2 knock-out holes for electrical connections (2 on top or one on top and one on back of the hood). 5.3 Attach one wire clamp on top of the hood for the provided electrical cable with 3-prong plug. -
Page 8: Cabinet Blower Preparation
7.2 HORIZONTAL DISCHARGE ONLY HD0130 7.2.1 The cabinet blower included with the E662 model is factory set to exhaus vertically. If the horizontal discharge is chosen, remove the metal shutoff plate from back of the hood, by removing the 3 screws. Set aside screws. Discard both left and right plastic diverters assembled to the metal shut off plate. -
Page 9: Install The Blower In The Cabinet
8. INSTALL THE BLOWER IN THE CABINET Install the cabinet in the cabinet and rest it on th e adapter plate. If a framed cabinet is used, insert the blower as show in pictures below. STEP 1 STEP 2 HH0052 HH0053 STEP 3 HH0054... -
Page 10: Connect Wiring
9. CONNECT WIRING WARNING Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. Connect cable into wiring box using provided wire connectors. -
Page 11: Light Bulbs
11. LIGHT BULBS This hood must use 120V, 50W max., type MR16, GU10 shielded halogen lamps. (Purchase separately). WARNING In order to prevent the risk of personal injury, do not install a lamp identified for use only in enclosed fixtures. NOTE: The rings must be removed from bottom banel before installing halogen lamps. -
Page 12: Operation
12. OPERATION Always turn your blower on before you begin cooking to establish an air flow in the kitchen. Allow the blower run for a few minutes to clear the air after you turn off the range. HC0017 A) Blower OFF Delay touch pad D) OFF lighting touch pad B) ON / Blower speed control touch pad E) Halogen light touch pad... -
Page 13: Use And Care
13. USE AND CARE Grease filters and side panels. The grease filters and the bottom panel should be cleaned frequently. Use a warm detergent solution. Remove grease filters by pushing them towards the back of hood and rotating downward. Clean all-metal filters in the diswasher using a non-phophate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions —... -
Page 14: Wiring Diagram
14. WIRING DIAGRAM WARNING Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. 120 V Supply Line Return... -
Page 15: Service Parts
15. SERVICE PARTS E662 MODEL HL0056 PART WIDTHS DESCRIPTION NUMBER 30’’ 36’’ 42’’ V14971 1 1 1 ADAPTER/DAMPER 1 1 1 V06242 LEFT FLOW DEVIATOR V06243 1 1 1 RIGHT FLOW DEVIATOR V15931 1 1 1 CABINET BLOWER V06263 1 1 1... -
Page 16: Warranty
This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone LLC at one of the addresses or telephone numbers stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
