Connecting the Drive Interface and Power Cables

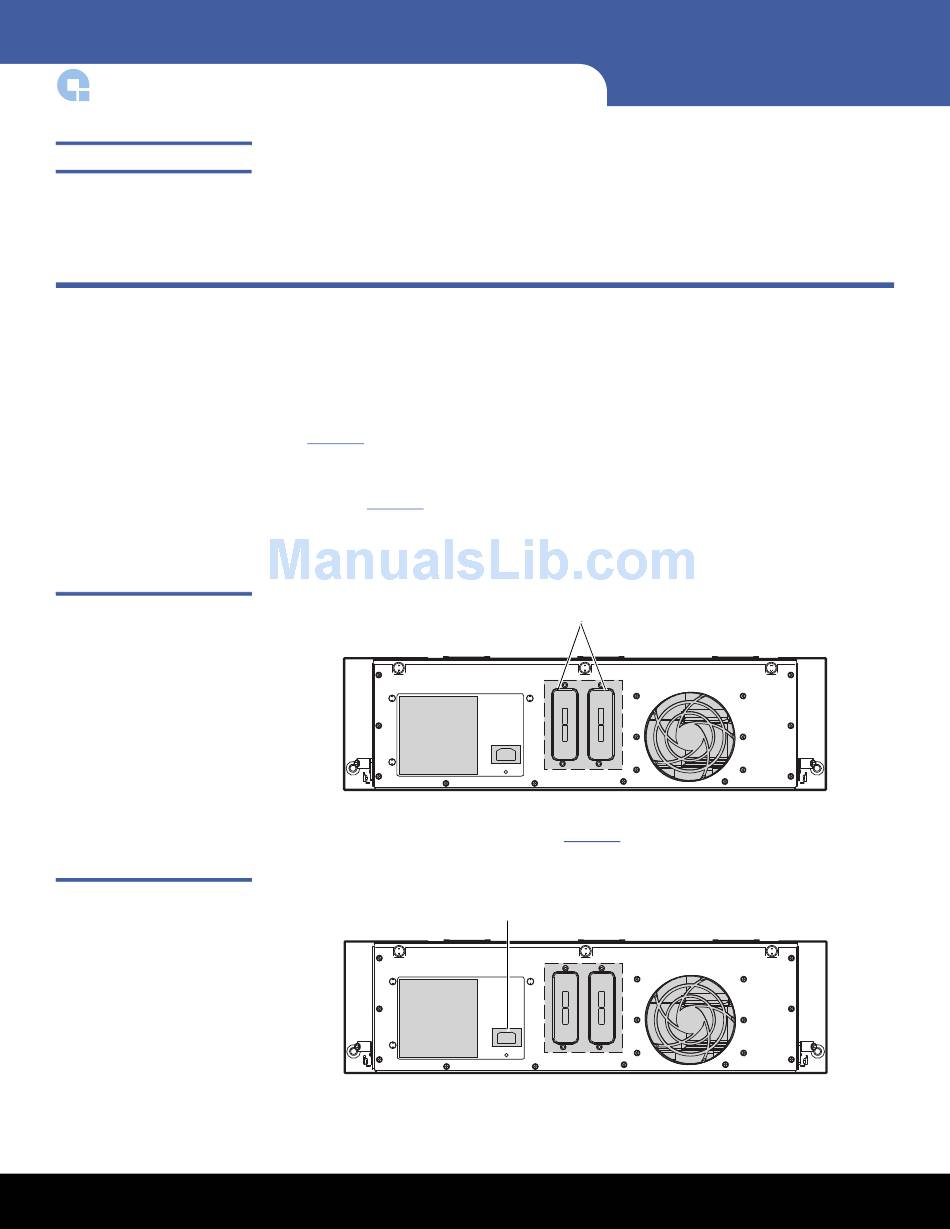

Figure 1 SAS Interface
Connectors
Figure 2 AC Power Connector
2
Power requirements for the 3U Rackmount enclosure are as follows:
• 100 to 240 Volts AC/2 to 4 Amps
• 47 to 63 Hz
1 Shut down and turn off the host server system.
2 Turn off all attached accessory devices, such as printers and other SCSI devices.
3 On the back panel of a serial-attached SCSI (SAS) 3U Rackmount enclosure (see
Figure 1):
a Connect one end of the supplied external SAS interface cable to the external SAS
interface connector on the same side of the enclosure as the installed tape drive
(see Figure 1).
b Connect the other end of the external SAS interface cable to the SAS connector
on the host server.
4 Connect the supplied AC power cable to the AC power connector on the back panel
of the 3U Rackmount enclosure (see
AC power connector
SAS connectors
Figure 2).
