DATA SHEET

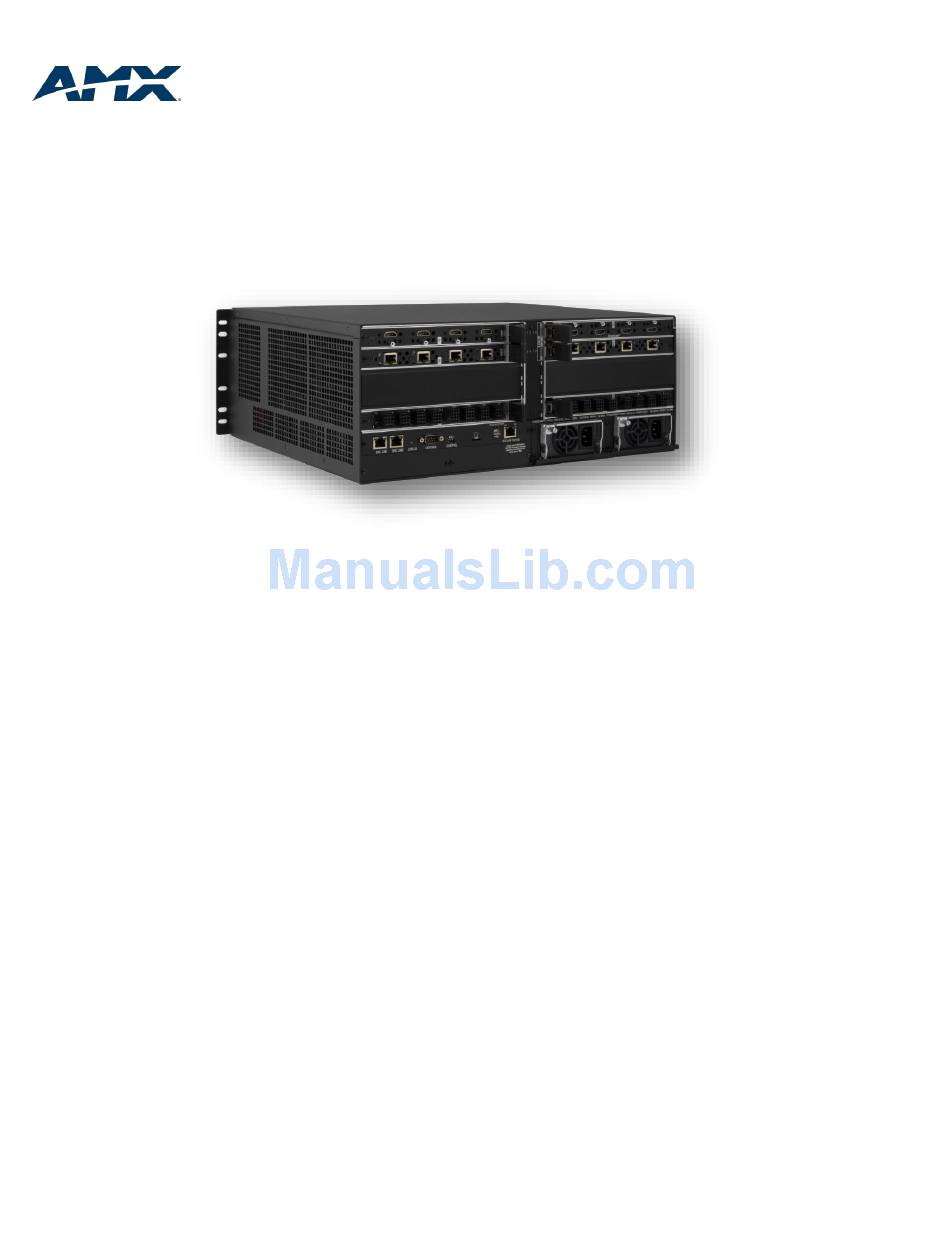

Enova DGX 8 Enclosure
®
AVS-ENOVADGX8-ENC (FG1058-08)
Overview
The Enova DGX 8 Enclosure is a Digital Media Matrix Switcher that includes an
integrated NetLinx Controller, redundant power supplies and can be populated
with Enova DGX video input and output boards in addition to optional audio
insert/extract boards. There are four connections per video board, and each
enclosure holds two video input boards and two video output boards for a
maximum matrix of 8x8.
The Enova DGX 8 is far beyond a modular media switcher with built-in controller - it functions as the
centerpiece of a complete integrated solution that manages and distributes analog and digital audio and video
including HDMI/HDCP, control and Ethernet. Easily integrate HDCP into system designs and enjoy hassle-free
plug-and-play operation. No tools, no delays and no key constraints – it just works with AMX's exclusive
InstaGate Pro® Technology. Built for today's and tomorrow's needs, a comprehensive set of Enova DGX hot
swappable boards can be used in conjunction with DXLink and DGX Transmitters and Receivers to provide an
end-to-end distribution system over twisted pair cable or fiber. An integrated NetLinx Controller and embedded
Ethernet switch enables management of the entire solution including source equipment and display devices
located throughout the environment – all from a single point of control.
In addition to eliminating HDCP delays, InstaGate Pro allows traditionally key limited sources to be switched
freely to all connected HDCP compliant displays – eliminating HDCP key limitations that plague large
applications. Built-in SmartScale® Technology on every output provides video that is perfectly scaled for each
connected display, eliminating the integration challenges that can occur when sources and displays have
different supported resolutions - making it easy to specify, easy to install and easy to use. With the powerful
combination of analog-to-digital signal conversion, video scaling and high speed digital switching the system
delivers perfect video every time – regardless of signal type.
As part of a complete distribution system, easily send analog or digital audio and video including HDMI with
HDCP signals, plus control 10 Km over single mode fiber or 300 meters over multimode fiber; send all this plus
power up to 100 meters over standard twisted pair cable to and from the Enova DGX using the DXLink Twisted
Pair and Fiber Transmitters/Receivers.
