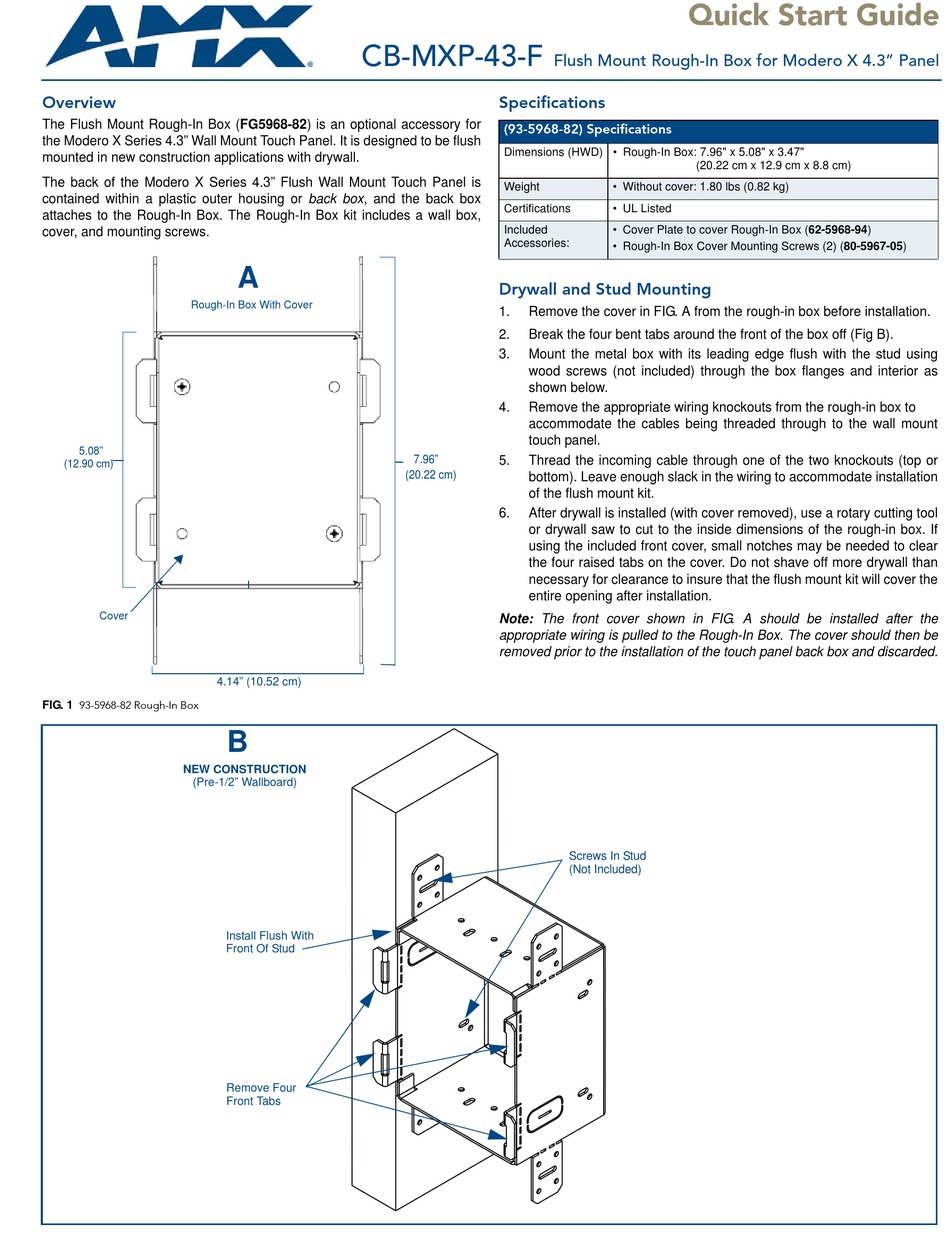

AMX CB-MXP-43-F Quick Start Manual

Overview

The Flush Mount Rough-In Box (FG5968-82) is an optional accessory for
the Modero X Series 4.3" Wall Mount Touch Panel. It is designed to be flush
mounted in new construction applications with drywall.
The back of the Modero X Series 4.3" Flush Wall Mount Touch Panel is
contained within a plastic outer housing or back box, and the back box
attaches to the Rough-In Box. The Rough-In Box kit includes a wall box,
cover, and mounting screws.
Rough-In Box With Cover
5.08"
(12.90 cm)
Cover
4.14" (10.52 cm)
FIG. 1 93-5968-82 Rough-In Box
NEW CONSTRUCTION
(Pre-1/2" Wallboard)
CB-MXP-43-F
A
(20.22 cm)
B
Install Flush With
Front Of Stud
Remove Four
Front Tabs
Flush Mount Rough-In Box for Modero X 4.3" Panel

Specifications

(93-5968-82) Specifications
Dimensions (HWD) • Rough-In Box: 7.96" x 5.08" x 3.47" 
Weight
Certifications
Included 
Accessories:

Drywall and Stud Mounting

1. Remove the cover in FIG. A from the rough-in box before installation.
2. Break the four bent tabs around the front of the box off (Fig B).
3. Mount the metal box with its leading edge flush with the stud using
wood screws (not included) through the box flanges and interior as
shown below.
Remove the appropriate wiring knockouts from the rough-in box to 
4.
accommodate the cables being threaded through to the wall mount
touch panel.
7.96" 5. Thread the incoming cable through one of the two knockouts (top or
bottom). Leave enough slack in the wiring to accommodate installation
of the flush mount kit.
6. After drywall is installed (with cover removed), use a rotary cutting tool
or drywall saw to cut to the inside dimensions of the rough-in box. If
using the included front cover, small notches may be needed to clear
the four raised tabs on the cover. Do not shave off more drywall than
necessary for clearance to insure that the flush mount kit will cover the
entire opening after installation.
Note: The front cover shown in FIG. A should be installed after the
appropriate wiring is pulled to the Rough-In Box. The cover should then be
removed prior to the installation of the touch panel back box and discarded.
Screws In Stud
(Not Included)
Quick Start Guide
(20.22 cm x 12.9 cm x 8.8 cm)
• Without cover: 1.80 lbs (0.82 kg)
• UL Listed
• Cover Plate to cover Rough-In Box (62-5968-94)
• Rough-In Box Cover Mounting Screws (2) (80-5967-05)
