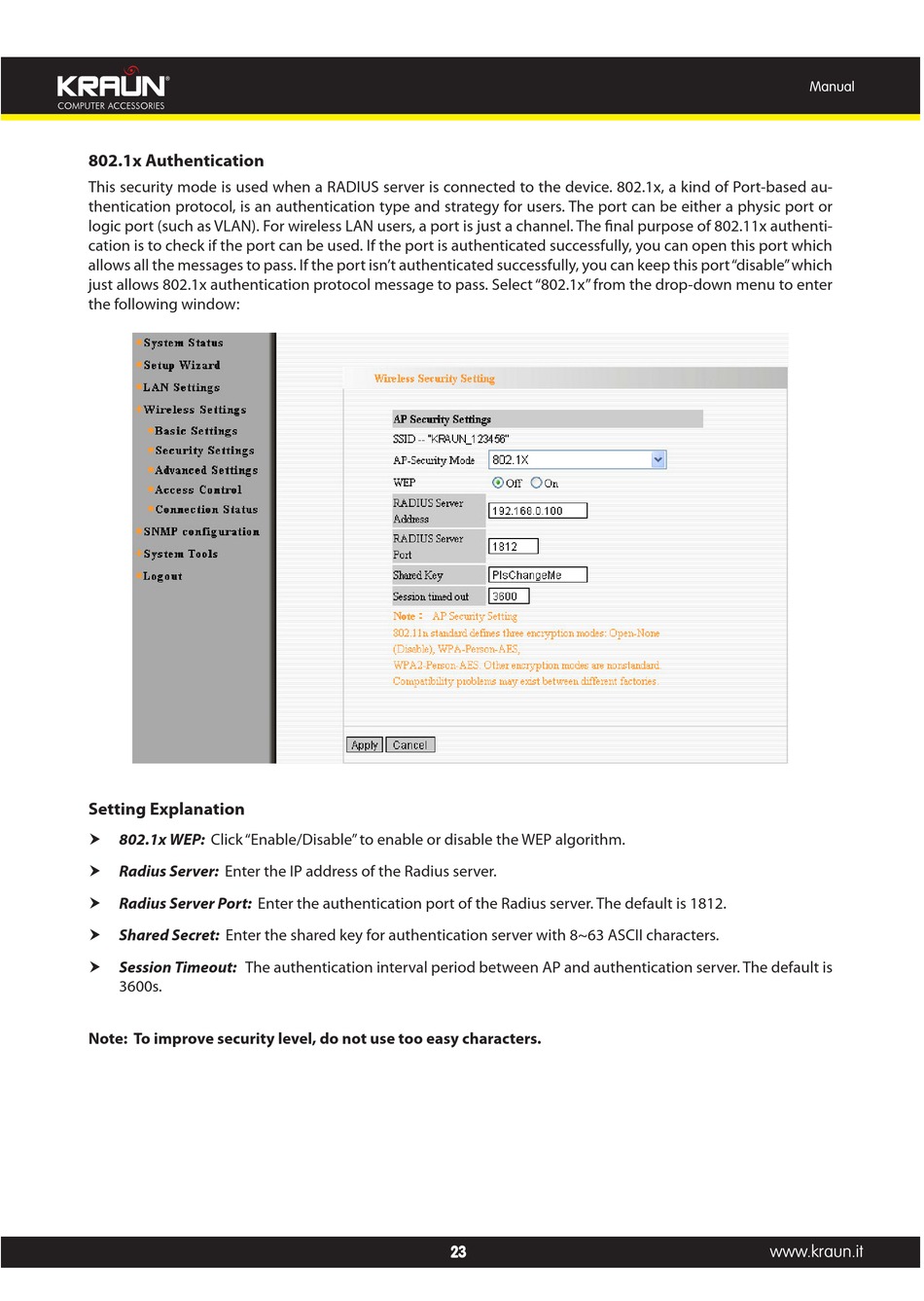

802.1x Authentication

This security mode is used when a RADIUS server is connected to the device. 802.1x, a kind of Port-based au-
thentication protocol, is an authentication type and strategy for users. The port can be either a physic port or
logic port (such as VLAN). For wireless LAN users, a port is just a channel. The final purpose of 802.11x authenti-
cation is to check if the port can be used. If the port is authenticated successfully, you can open this port which
allows all the messages to pass. If the port isn't authenticated successfully, you can keep this port " disable" which
just allows 802.1x authentication protocol message to pass. Select "802.1x" from the drop-down menu to enter
the following window:

Setting Explanation

h h 802.1xhWEP:hhClick "Enable/Disable" to enable or disable the WEP algorithm.
h h RadiushServer:hhEnter the IP address of the Radius server.
h h RadiushServerhPort:hhEnter the authentication port of the Radius server. The default is 1812.
h h SharedhSecret:hhEnter the shared key for authentication server with 8~63 ASCII characters.
h h SessionhTimeout:hh The authentication interval period between AP and authentication server. The default is
3600s.
Note: To improve security level, do not use too easy characters.
