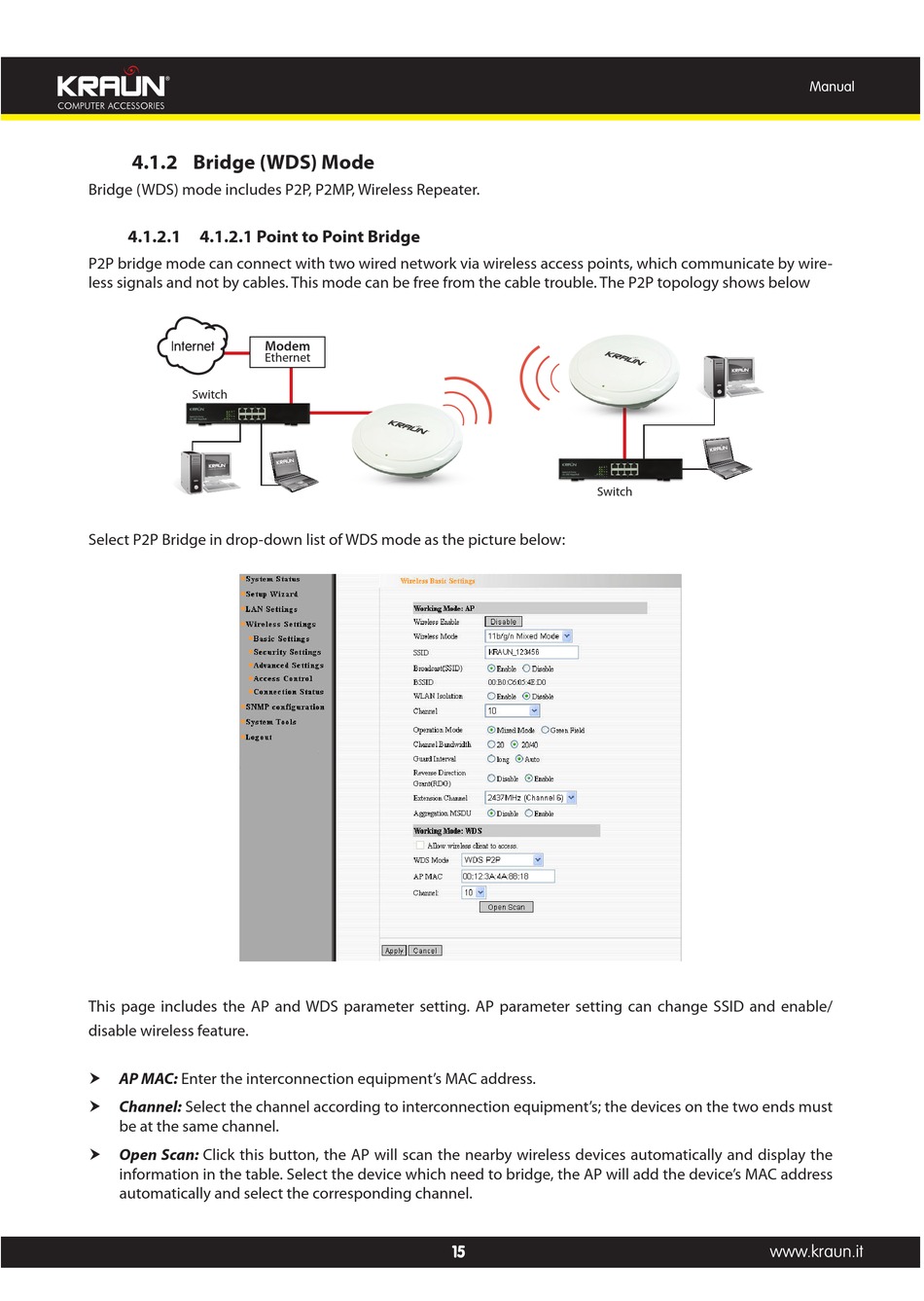

4.1.2 Bridge (WDS) Mode
Bridge (WDS) mode includes P2P, P2MP, Wireless Repeater.
4.1.2.1 4.1.2.1 Point to Point Bridge
P2P bridge mode can connect with two wired network via wireless access points, which communicate by wire-
less signals and not by cables. This mode can be free from the cable trouble. The P2P topology shows below
Switch
Select P2P Bridge in drop-down list of WDS mode as the picture below:
This page includes the AP and WDS parameter setting. AP parameter setting can change SSID and enable/
disable wireless feature.
h h APhMAC: Enter the interconnection equipment's MAC address.
h h Channel: Select the channel according to interconnection equipment's; the devices on the two ends must
be at the same channel.
h h OpenhScan: Click this button, the AP will scan the nearby wireless devices automatically and display the
information in the table. Select the device which need to bridge, the AP will add the device's MAC address
automatically and select the corresponding channel.
Modem
Ethernet
Switch
15
Manual
www.kraun.it
