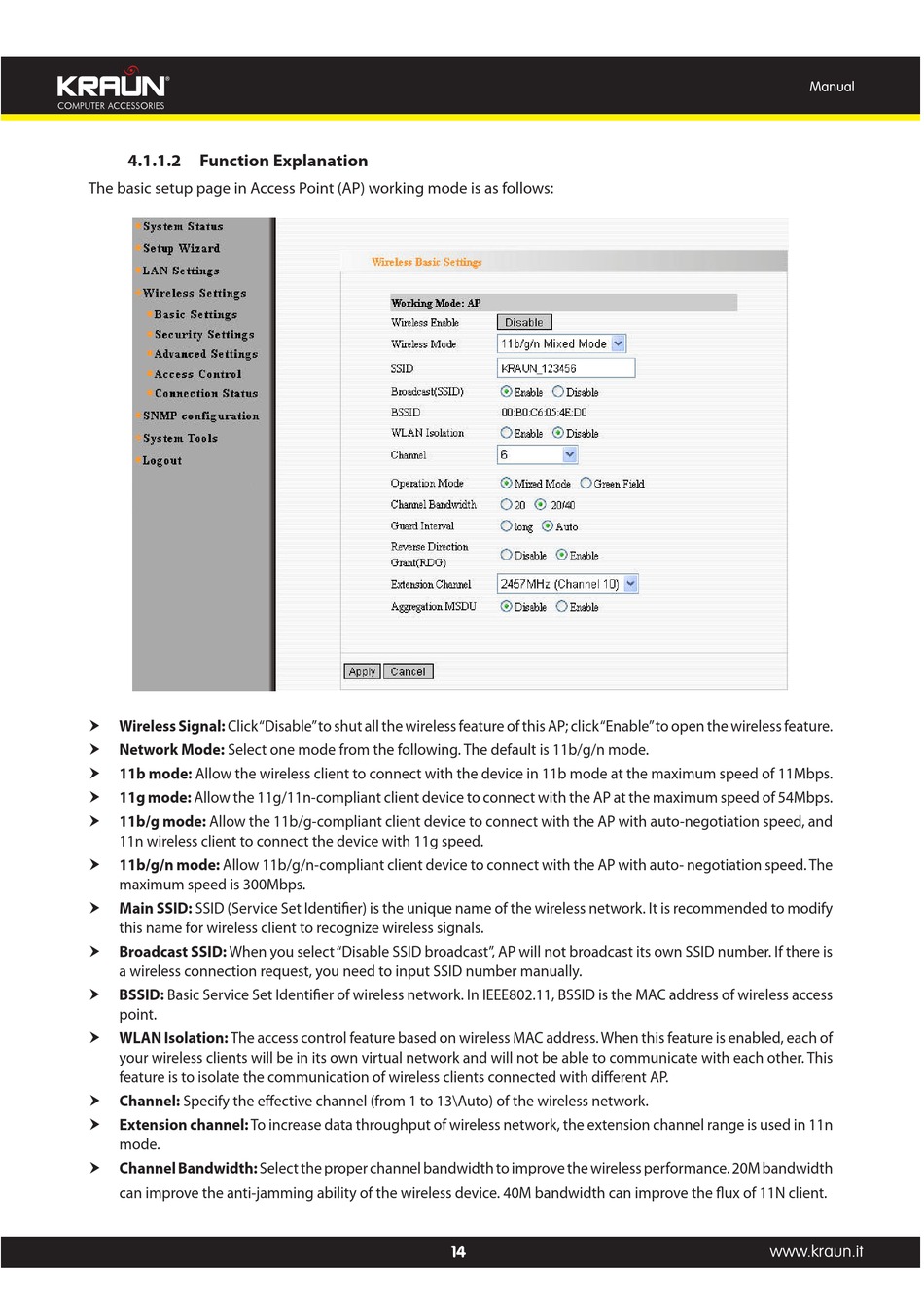

4.1.1.2 Function Explanation

The basic setup page in Access Point (AP) working mode is as follows:
Wireless Signal: Click " Disable" to shut all the wireless feature of this AP; click " Enable" to open the wireless feature.
h
Network Mode: Select one mode from the following. The default is 11b/g/n mode.
h
11b mode: Allow the wireless client to connect with the device in 11b mode at the maximum speed of 11Mbps.
h
11g mode: Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps.
h
11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and
h
11n wireless client to connect the device with 11g speed.
11b/g/n mode: Allow 11b/g/n-compliant client device to connect with the AP with auto- negotiation speed. The
h
maximum speed is 300Mbps.
Main SSID: SSID (Service Set Identifier) is the unique name of the wireless network. It is recommended to modify
h
this name for wireless client to recognize wireless signals.
Broadcast SSID: When you select "Disable SSID broadcast", AP will not broadcast its own SSID number. If there is
h
a wireless connection request, you need to input SSID number manually.
BSSID: Basic Service Set Identifier of wireless network. In IEEE802.11, BSSID is the MAC address of wireless access
h
point.
WLAN Isolation: The access control feature based on wireless MAC address. When this feature is enabled, each of
h
your wireless clients will be in its own virtual network and will not be able to communicate with each other. This
feature is to isolate the communication of wireless clients connected with different AP.
Channel: Specify the effective channel (from 1 to 13\Auto) of the wireless network.
h
Extension channel: To increase data throughput of wireless network, the extension channel range is used in 11n
h
mode.
Channel Bandwidth: Select the proper channel bandwidth to improve the wireless performance. 20M bandwidth
h
can improve the anti-jamming ability of the wireless device. 40M bandwidth can improve the flux of 11N client.
