Summary of Contents for Transcend StoreJet 35U3

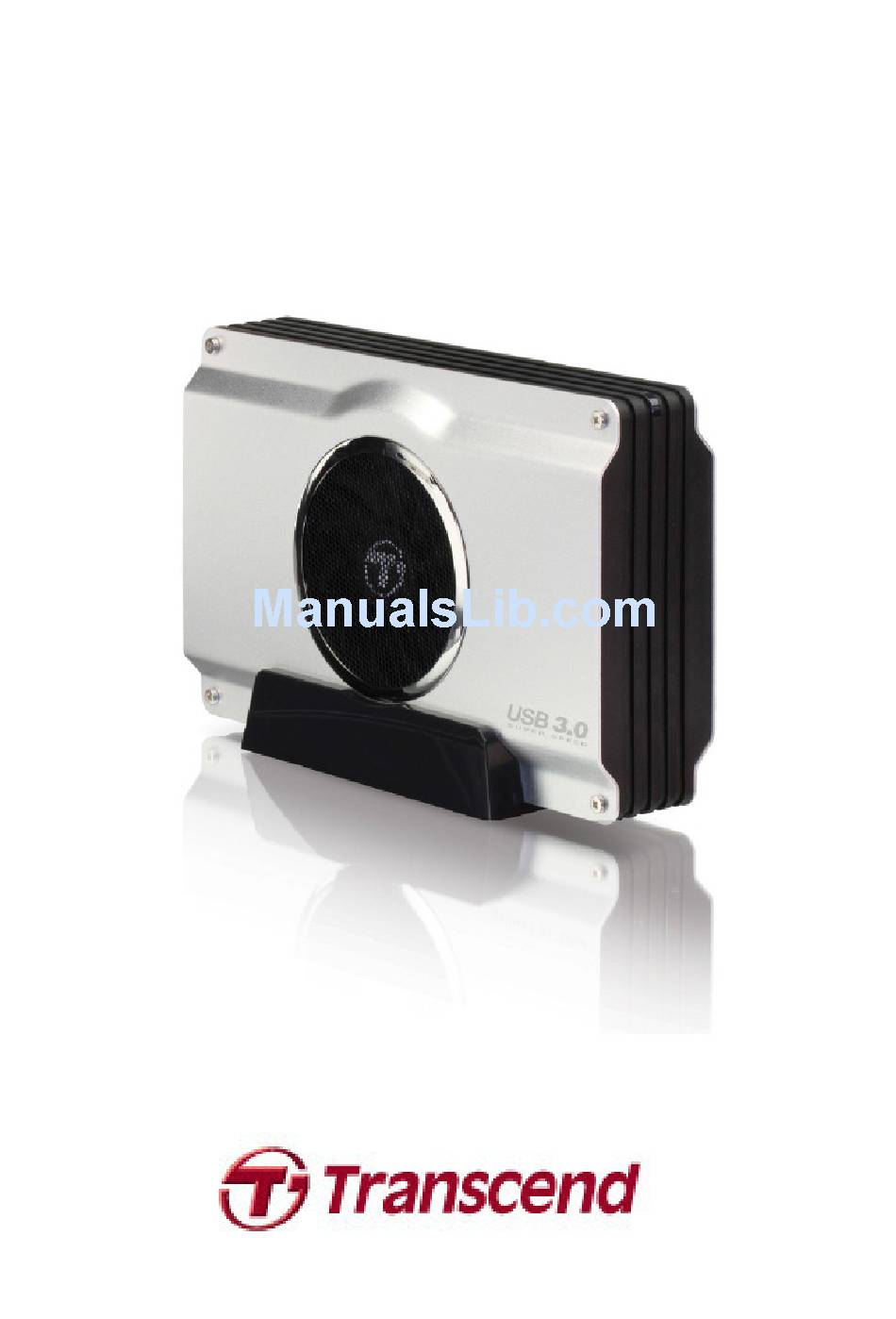

- Page 1 ® StoreJet 35U3 User’s Manual (Ver1.1)
-
Page 2: Table Of Contents
Table of Contents Introduction︱ ︱ ︱ ︱ .........................3 Features︱ ︱ ︱ ︱ ..........................4 System Requirements︱ ︱ ︱ ︱ ......................4 Safety Precautions︱ ︱ ︱ ︱ ......................4 General Use............................ 4 Setup .............................. 4 Backing Up Data ..........................5 Power ............................. 5 Reminders ............................5 Product Overview︱... -
Page 3: Introduction
35U3. Utilizing the next-generation SuperSpeed USB 3.0 standard, the StoreJet 35U3 boasts optimized interface speeds up to 10X faster than Hi-Speed USB 2.0. Thanks to its backwards compatibility with USB 2.0, you can easily access your files from nearly any desktop or notebook computer. -
Page 4: Features
Next to an air conditioner, electric heater or other heat sources o In a closed car that is in direct sunlight Setup Please ensure that you connect the USB cable to the StoreJet 35U3 and your computer correctly • (square end... -
Page 5: Backing Up Data
When not using the Vertical Stand, always lay the StoreJet 35U3 on a flat stable surface with the • cooling fan side facing up. Never set anything on top of the StoreJet 35U3 or cover the cooling fan inlet. •... -
Page 6: Product Overview
Product Overview︱ Case Screws (4 per side) On/Off Switch DC Power Input USB Port Cooling Fan LED Indicator Light... -
Page 7: Installing A Hard Drive
If a hard drive is already installed, you can skip to the “Connecting to a Computer” section. 1. Remove all eight screws from the back and front of the StoreJet 35U3, and then remove both the front and back metal covers. - Page 8 4. Carefully turn the StoreJet 35U3 on its side, making sure the hard drive does not fall out. Secure the hard drive with the provided mounting screws. 5. Reattach the front cover and back cover and replace the eight case screws.
-
Page 9: Connecting To A Computer
Connecting to a Computer︱ The StoreJet 35U3 can be connected to your computer using a USB 2.0 or USB 3.0 port. To get the best performance results from your hard drive, we strongly recommend connecting your StoreJet 35U3 directly to a USB 3.0 port. -
Page 10: Mac Os
3. Plug the other end of the USB cable into an available USB port on your PC. 4. Turn on the StoreJet 35U3’s power switch. Its LED will light up and the cooling fan will automatically spin if the temperature control program confirms the ambient temperature has reached the default value. -
Page 11: Linux
3. Plug the other end of the USB cable into an available USB port on your PC. 4. Turn on the StoreJet 35U3’s power switch. Its LED will light up and the cooling fan will automatically spin if the temperature control program confirms the ambient temperature has reached the default value. -
Page 12: Disconnecting From A Computer
Unplug the StoreJet 35U3 and turn off its power switch. Mac OS Drag and drop the Disk icon that represents your StoreJet 35U3 into the trashcan. Then unplug your StoreJet 35U3 from the USB port and turn off its power switch. -
Page 13: Linux Kernel 2.4 Or Later
Linux Kernel 2.4 or Later Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 35U3 from the USB port and turn off its power switch. -
Page 14: Formatting The Hard Drive
Formatting the Hard Drive︱ WARNING! Formatting the disk will erase all of the data on your StoreJet 35U3. Delete text Windows XP/Vista/7/8 Please download the “StoreJetToolBox” from Transcend’s online Download Center at http://www.transcend-info.com/downloads. When the download is complete, extract the downloaded ZIP file to your computer’s hard drive (not the StoreJet 35U3) and run the StoreJetToolBox.exe application. - Page 15 A confirmation window will pop up to warn you that all data on the drive will be erased. Press “OK” to confirm no data needs to be backed up and start formatting. 10. The format process may take a few minutes. When complete, an “OK” message will appear in the bottom right hand corner of the window.
-
Page 16: Mac Os
Mac OS StoreJet 35U3 Plug the into an available USB port on your MAC computer. Unplug all other external storage devices from your computer. This is to prevent accidental format of a different drive. Click the “Initialize” button. In the Disk Utility window, select the new drive from the list on the left. -
Page 17: Linux
10. Click the “Close” button to finish and exit. Linux Plug the StoreJet 35U3 into an available USB port on your Linux computer. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. -
Page 18: Storejet Eco-Fan Control
StoreJet Eco-Fan Control Please download the “StoreJet Eco-Fan Control” from Transcend’s online Download Center at http://www.transcend-info.com/Support/DLCenter/. HDD temperature Always On: Fan will run continuously (no smart control) Auto control- Normal: Fan will turn on and off regularly (fan spins more often) -
Page 19: Troubleshooting
Mac OS. To store and backup data on your Mac please follow the instructions on formatting the StoreJet 35U3 on a Mac to convert the drive to Mac’s HFS+ format. If you plan to regularly use the drive with both Windows and Mac computers, we recommend formatting the drive to the FAT32 file system. -
Page 20: Product Specification
Product Specification︱ Storage Media 3.5” SATA Hard Drive AC input：100V-240V Power Supply DC input：12V/1.5A （via power adapter） Transmission interface USB 3.0 5℃ (41℉) to 55℃ (131℉) Operating temperature Safety certification CE, FCC ClassB, BSMI Warranty Two-year Limited... -
Page 21: Recycling & Environmental Considerations
Recycling & Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 22: Two-Year Limited Warranty
Please visit http://www.transcend-info.com/Support/Warranty.asp to view the Transcend Warranty Policy. By using the product, you agree that you accept the terms of the Transcend Warranty Policy, which may be amended from time to time. Online registration To expedite warranty service, please access http://www.transcend-info.com/Member/Register.asp...
