Summary of Contents for Transcend StoreJet 35T

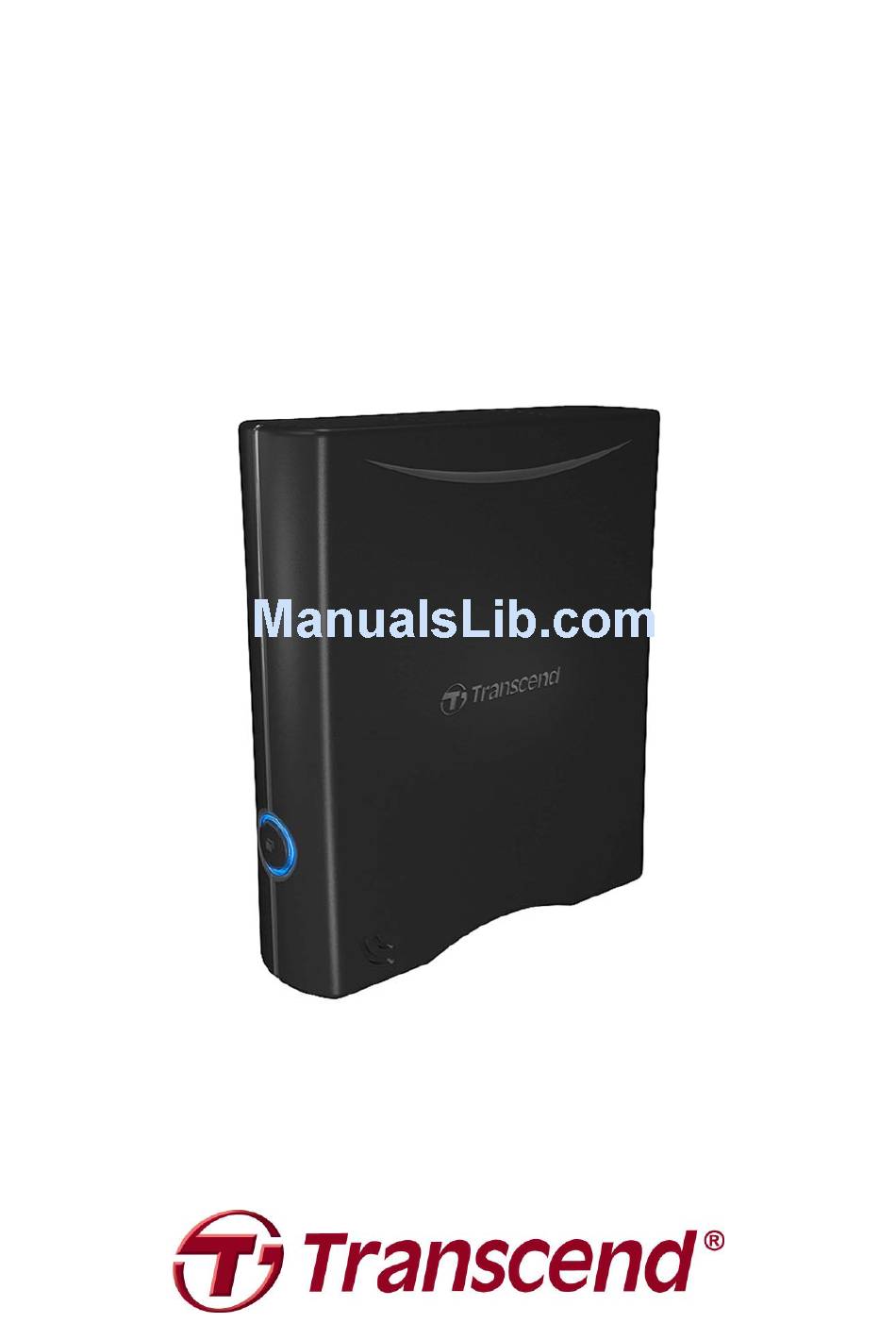

- Page 1 User’s Manual 3.5" External Hard Drive ® StoreJet (Version 1.2)
-
Page 2: Table Of Contents
Introduction︱ ... 1 Package Contents︱ ... 1 Features︱ ... 2 System Requirements︱ ... 2 Safety Precautions︱ ... 3 General Use ... 3 Setup ... 3 Backing-Up and Storing Data ... 3 Power ... 3 Reminders ... 4 Product Overview︱ ... 5 Connecting to a Computer︱... -
Page 3: Introduction
Introduction︱ Congratulations on purchasing Transcend’s StoreJet USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With its OneTouch auto-backup button and TurboHDD USB mode*, the compact StoreJet 35T is quick and easy way to store and back-up essential files, folders, documents, photos, music and videos. -
Page 4: Features
Features︱ Space-saving upright design – no stand needed TurboHDD USB mode increases file transfer speed* OneTouch auto-backup button* 256-bit AES file & folder encryption* Power-saving sleep mode Pre-formatted for extra convenience Fanless low-noise operation High-speed 480Mbps USB 2.0 interface Easy Plug and Play installation – no drivers required Extra-large storage capacity for backing-up files ®... -
Page 5: Safety Precautions
Safety Precautions︱ These usage and safety guidelines are IMPORTANT! Please follow them carefully. General Use • Unpack the contents of the StoreJet 35T package carefully. • Avoid exposing your StoreJet 35T to extreme temperatures above 55℃ or below 5℃ during operation. •... -
Page 6: Reminders
Reminders • Always follow the procedures in the “Disconnecting from a Computer” section to remove the StoreJet from your computer. • Never switch the StoreJet 35T between “Turbo USB Mode” and “Normal USB Mode” while transferring data. -
Page 7: Product Overview
Product Overview︱ OneTouch Backup Button Dual Color LED Indicator Anti-slip Rubber Feet DC Power Input Jack USB Port Security Lock Attachment... -
Page 8: Connecting To A Computer
Connecting to a Computer︱ Connecting to Windows Attach the included 2-pin or 3-pin (country/region dependant) power connector to the USB Power Adapter by sliding it until it clicks into place. Connect the Power Adapter cord to the round-shaped DC IN jack on the back of the StoreJet 35T and plug the Power Adapter into your home’s power outlet. -
Page 9: One Touch Auto-Backup Button
*G: is an example drive letter, the drive letter in your Windows computer may differ Note: “New Volume” is an example drive. The drive name on your Mac computer may differ Once connected, you can use the StoreJet 35T as an external hard drive to transfer data to and from your computer. -
Page 10: Turbohdd Usb Mode
TurboHDD USB Mode The StoreJet 35T features a special high-speed USB mode that can speed up file transfers. To enable TurboHDD USB, you must install the “TurboHDD USB” program located in the “TurboHDD USB” directory on your StoreJet drive. Once installed, double-click the “TurboHDD” icon in the Windows system tray and select the TURBO icon. -
Page 11: Disconnecting From A Computer
Disconnecting from a Computer︱ NEVER disconnect the StoreJet from a Computer when its LED is flashing. ® Windows 1. Select the Hardware 2. The Safely Remove Hardware pop-up window will appear. Select it to continue. 3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely removed from the system.”... -
Page 12: Linux
® Linux Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 35T from the USB port. -
Page 13: Formatting The Hard Drive
Formatting the Hard Drive︱ The StoreJet 35T comes pre-formatted to the FAT32 file system, which is compatible with virtually any computer system, including all versions of Windows your StoreJet drive on various different types of computers, game consoles, or media playback devices, we recommend keeping the existing FAT32 file system. - Page 14 7. Press “Start.” A confirmation window will appear. Press OK to begin formatting the drive.
-
Page 15: Windows 7/Vista
9. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right hand corner of the window. 10. Click the “Close” button to finish and exit. ® Windows 7/Vista Note: You must have Administrator Rights to format in Windows Vista or Windows 7. 1. - Page 16 6. The User Account Control window will appear. Select “Allow” to continue. 7. In the StoreJet Format Utility window, click the “Refresh” button. 8. The program will automatically detect the StoreJet 35T drive.
- Page 17 9. Press “Start”. 11. A confirmation window will appear. Press OK to begin formatting the drive.
-
Page 18: Mac ® Os
10. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right-hand corner of the window. 11. Click the “Close” button to finish and exit. ® 1. Plug the StoreJet 35T into an available USB port on your MAC computer. 2. - Page 19 7. Input a name for your new drive (otherwise, your drive will be named “Untitled”) 8. Click the “Erase” button in the bottom right corner of the window 9. Click “Erase” again to confirm.
-
Page 20: Linux
10. Click the “Close” button to finish and exit. ® Linux 1. Plug the StoreJet 35T into an available USB port on your Linux computer. 2. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. 3. -
Page 21: Troubleshooting
Troubleshooting︱ If a problem occurs with your StoreJet 35T, please first check the information listed below before taking your StoreJet 35T in for repair. If you are unable to remedy a problem after trying the following suggestions, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our website at www.transcend.com.tw. - Page 22 ® formatted with the Windows NTFS file system, which may not be 100% compatible with Mac ® To store and backup data on your Mac please follow the instructions on formatting to convert the drive to Mac OS file system. If you plan to regularly use the drive with both Windows and Mac computers, we recommend formatting the drive to the FAT32 file system (the StoreJet 35T comes pre-formatted with FAT32 from the factory).
-
Page 23: Specifications
® StoreJet Specifications︱ Size (L x W x H) Weight Storage Media Power Supply Max. Transfer Speed Operating Temperature Certificates Warranty Period Ordering Information︱ Device Description StoreJet 35T StoreJet 35T StoreJet 35T 152.40mm ×44.80mm ×172.40mm 1040g 3.5" SATA Hard Disk Drive AC input: 100V-240V DC input: 12V/2A via Switching Power Adapter... -
Page 24: Recycling & Environmental Considerations
Recycling & Environmental Considerations︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 25: Transcend Limited Warranty
Please do not break or remove the warranty sticker on your Transcend products, as this will void your product warranty. All Transcend information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. During the... - Page 26 *The Transcend logo is a registered trademark of Transcend Information, Inc. *All logos and marks are trademarks of their respective companies.
