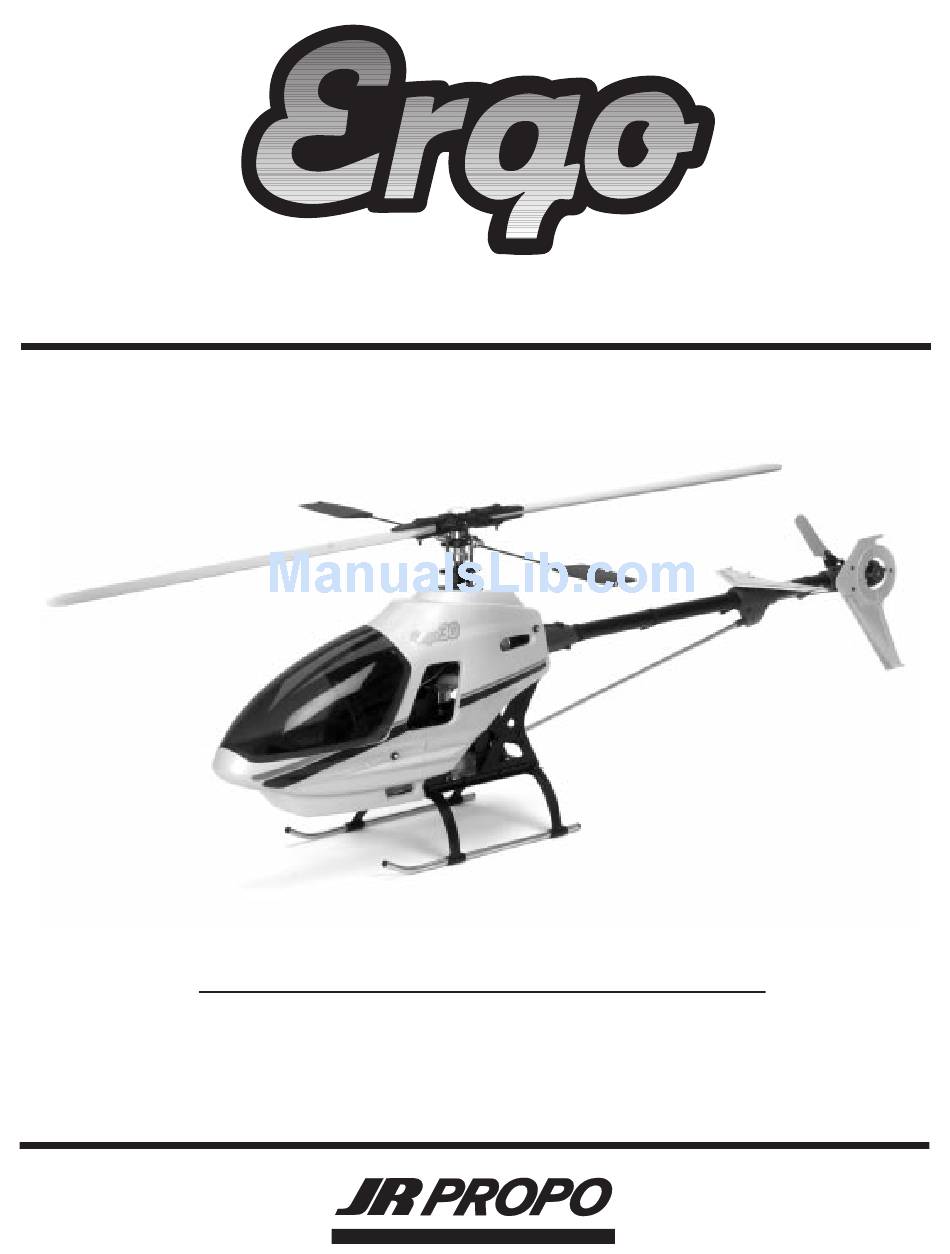

.32-.36 AND .46 ASSEMBLY INSTRUCTIONS
ERGO SPECIFICATIONS
Overall Length
Overall Height
Main Rotor Diameter
46.5"
Tail Rotor Diameter
16.38"
Gear Ratio
48.5" (.32-.36)
Gross Weight
50" (.46 3D)
Heli Division
9.17"
9.78:1:5.18
6.75-7.0 lbs.
