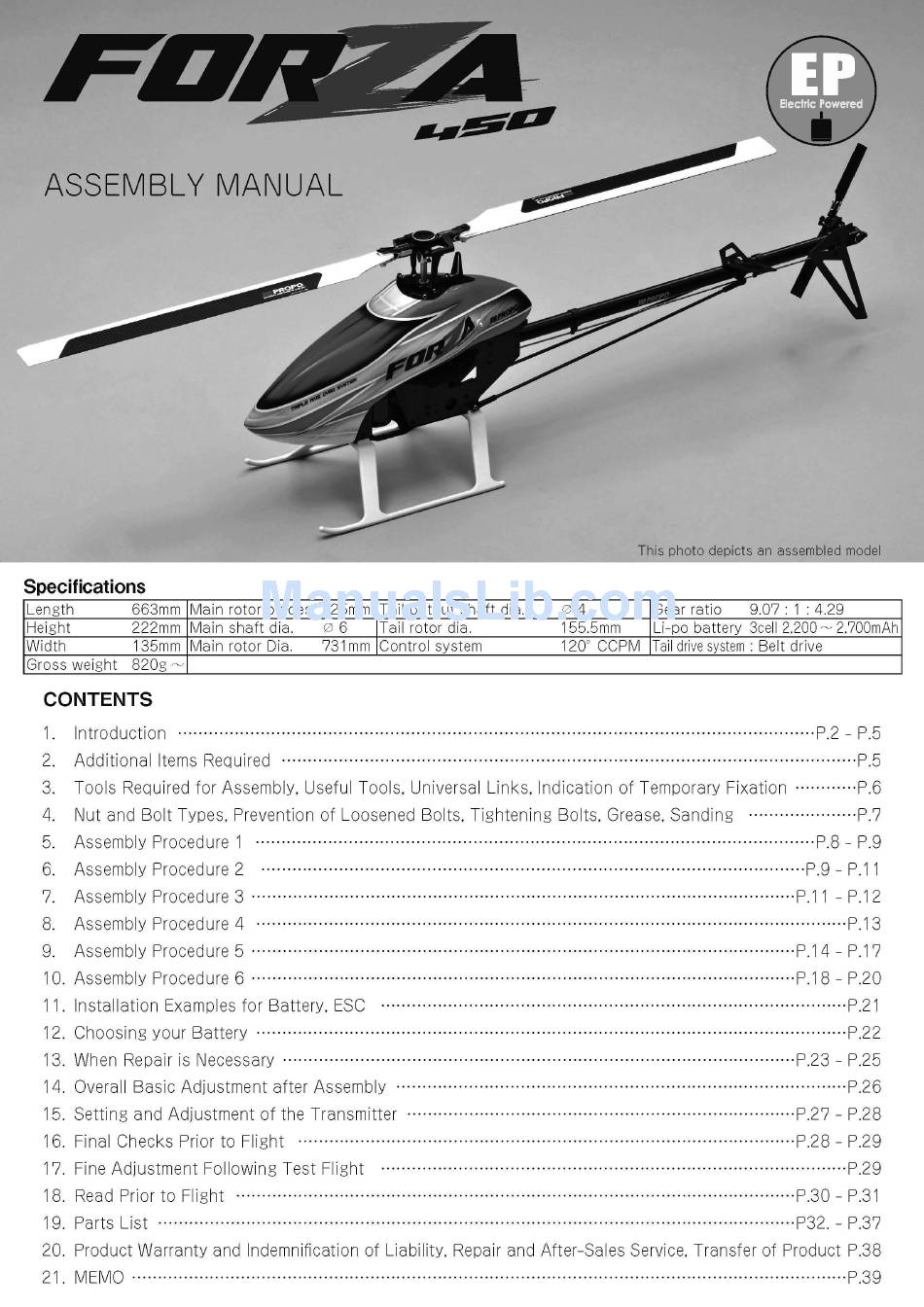

ASSEMBLY MANUAL
Thi
s
ph ot
o
depi ct
s
an assembl ed model
Specifications
Length
663mm Main rotor blades 325mm Tail output shaft dia.
04
Gear ratio
9.07 : 1 : 4.29
Height
222mm Main shaft dia.
06
Tail rotor dia.
155.5mm
Li-po battery 3cell 2.200
~
2.700mAh
Width
135mm Main rotor Oia.
731mm Control system
120° CCPM Tail drive system: Belt drive
Gross weight
820g
~
CONTENTS
1.
Introduction ···························································································································P.2- P.5
2.
Additional Items Required ···············································································································P.5
3.
Tools Required for Assembly, Useful Tools. Universal Links. Indication of Temporary Fixation ············P.6
4.
Nut and Bolt Types. Prevention of Loosened Bolts. Tightening Bolts. Grease. Sanding ·····················P.7
5.
Assembly Procedure 1 ············································································································P.8- P.9
6.
Assembly Procedure 2 ·········································································································P.9- P.11
7.
Assembly Procedure 3 ·········································································································P.11 - P.12
8.
Assembly Procedure 4 ··················································································································P.13
9.
Assembly Procedure 5 ·········································································································P.14- P.17
10. Assembly Procedure 6 ·········································································································P.18- P.20
11. Installation Examples for Battery, ESC ··························································································P.21
12. Choosing your Battery ··················································································································P.22
13. When Repair is Necessary ···································································································P.23- P.25
14. Overall Basic Adjustment after Assembly ·······················································································P.26
15. Setting and Adjustment of the Transmitter ···········································································P.27- P.28
16. Final Checks Prior to Flight ································································································P.28- P.29
17. Fine Adjustment Following Test Flight ··························································································P.29
18. Read Prior to Flight ············································································································P.30- P.31
19. Parts List ···························································································································P32.- P.37
20. Product Warranty and Indemnification of LiabilitY. Repair and After-Sales Service. Transfer of Product P.38
21. MEMO ··········································································································································P.39
