  • Page 1 Product User’s Guide...
  • Page 2 Venue Performance Series User’s Guide...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section 1. Safety Instructions..................Page 4 Section 2. Before You Begin ..................Page 7 Section 3. Introduction to VP Series Powered Loudspeaker Systems ....Page 8 Specifications by model Section 4. VP Series Transducers ................Page 11 Section 5. Enclosure Care and Maintenance ............Page 12 Section 6.

  • Page 4: Section 1. Safety Instructions

    SECTION 1 : SAFETY INSTRUCTIONS Important 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 5 CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CSA COMPLIANCE NOTICE CSA Certification Applies to Amplifier Module Only JBL Professional...
  • Page 6 JBL DRIVEPACK DECLARATION OF CONFORMITY ® Safety and EMC Compliance Specifications EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio- Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits;...

  • Page 7: Section 2. Before You Begin

    SECTION 2 : BEFORE YOU BEGIN The VP Series loudspeakers covered by this manual are not intended for fixed installation in outdoor or high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture.

  • Page 8: Section 3. Introduction To Vp Series Powered Loudspeaker Systems

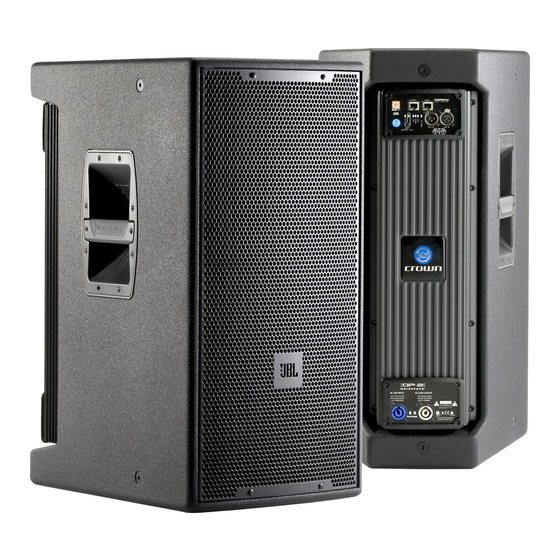

    SECTION 3 : INTRODUCTION TO VP SERIES POWERED LOUDSPEAKER SYSTEMS VP (Venue Performance) Series The VP Series is a family of powered integrated audio loudspeaker systems featuring the JBL DrivePack ® amplifier modules, designed in cooperation with Crown International. The JBL DrivePack features cutting- edge technology such as patented high efficiency Class-I power amplifier circuitry.
  • Page 9 Transducer Section: Transducer Section: Low Frequency Section: JBL 2262G, 304 mm (12 in) dia., 76 mm (3 in) Dual Low Frequency Section: JBL 2262G, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled Coil neodymium Differential Drive®, Direct Cooled...
  • Page 10 12 dB Max Peak Output: 138 dB SPL 1m Transducer Section: Low Frequency Section: JBL 2265G, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled Bandpass Nominal Impedance: 4 ohms Mid Frequency: JBL CMCD-82H, 200 mm (8 in) Dual Coil Differential Drive ®...

  • Page 11: Section 4. Vp Series Transducers

    2452H-SL High Frequency Compression Driver JBL’s new 2452H-SL features a lightweight neodymium magnet structure, 4” damped laminate diaphragm and a 1.5” exit. It is designed to deliver crystal-clear sound with superb dynamic range. The 2452H-SL is an 8 Ohm device.

  • Page 12: Section 5. Enclosure Care And Maintenance

    SECTION 5 : ENCLOSURE CARE AND MAINTENANCE VP Series enclosures are constructed of 5/8-in. multi-ply exterior grade Baltic birch. Each enclosure model is inter- nally braced. The exterior is covered with JBL’s exclusive DuraFlex™ finish. PAINTING JBL VP SERIES SYSTEM PRODUCTS Each JBL Professional VP Series system model is readily paintable.

  • Page 13: Section 6. Rigging And Suspension

    None of the information presented herein is intended as a representation or warranty on the part of JBL. Anyone making use of this information assumes all liability arising from such use.
  • Page 14 JBL is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures or any other abuse.

  • Page 15: Industry Resources

    Working Load Limit The working load limit (WLL) of any JBL VP Series suspendable loudspeaker shall be maintained as long as no more than 136 kg (300 lb) is suspended by a minimum of TWO (2) PRIMARY SUSPENSION points (Track Suspension), or 46 kg (100 lb) is suspended by TWO (2) of the SECONDARY SUSPENSION points (M10 forged Shoulder Eyebolts).

  • Page 16: Section 7. Jbl Drivepack Technology

    100-120VAC or 200-240VAC power source. On the power-up sequence the JBL DrivePack® input module senses line voltage and sets the high voltage line select relay within about 2 seconds. The system is ready for operation when the Green Ready LED on both the AC Input module and DPIP module is steadily illuminated.
  • Page 17 READY indicator pulses slowly. Recovery from sleep mode is instantaneous when an audio signal is detected Thermal Management: JBL DrivePack systems are cooled by Passive Convection. No fans are used in any part of the thermal ® management system. To maintain efficient cooling it is a good practice to assure open space around the DrivePack units.
  • Page 18 ® 240V Europe CEE 7/7 Schuko type AC plug to PowerCon connector cord sets are provided with this JBL DrivePack product for light-duty shop testing or system configuration type use. One spare gray Neutrik (P/N NAC3FCB) PowerCon connector is included in the AC Power Cord Set for your convenience to create a pass-through AC power cable.
  • Page 19 CAUTION: Continuous voltages 10% beyond high line at either 120VAC or 240VAC operation ranges can disrupt performance of the JBL DRIVEPACK! To avoid activation of amplifier low line/ high line protection which will interrupt audio performance, the system operator should maintain AC supply voltages within the rated voltage windows.

  • Page 20: Ohms

    JBL DrivePack systems are equipped with ® a modular input bay and input modules are available in three versions in the VP Series: the DPIP, DPAN and the DPCN. Audio Signal Distribution Connecting source audio signals to the input modules on JBL DrivePack systems is similar to daisy-chaining multiple external amplifier...

  • Page 21: Ohms

    The standard DPIP input module features analog audio inputs and sophisticated onboard digital signal processing technology. Precision Bandpass limiting, pre-equalization filters and automatic self-test functions ensure optimized performance. JBL engineers have calibrated DSP speaker management and limiter parameters to insure smooth phase response and transfer function curves right out of the box.
  • Page 22 HiQnet compatibility. It enables remote control and monitoring via HiQnet System Architect™ software. Network Control and Monitoring is enabled by the JBL DP-DCP (DrivePack Device Control Panel) supplied within HiQnet System Architect. Network capabilities include monitoring of status, input and output levels, clipping, temperature, load faults and gain reduction.

  • Page 23: Ohms

    14) The MAC address is a unique 12 digit hexadecimal hardware address assigned to every network device by the manufacturer and is not changeable by the user. This unique physical address enables each device on the network to identify and communicate directly with other devices connected to the network. JBL Professional...
  • Page 24 flexibility to cover any situation. The HiQnet System Architect™ software user interface provides remote access to digital speaker preset files in the JBL DrivePack . As with the DPAN, user-addressable features include ten user defined presets, up to ®...

  • Page 25: Ohms

    14) The MAC address is a unique 12 digit hexadecimal hardware address assigned to every network device by the manufacturer and is not changeable by the user. This unique physical address enables each device on the network to identify and communicate directly with other devices connected to the network. JBL Professional...
  • Page 26 In addition, Master Control Panels and Master Monitor Panels within System Architect software allow for convenient grouping of control and monitoring functions for multiple JBL DrivePack enclosures with DPDA input modules. This functionality provides a powerful remote control/monitoring interface that is especially useful when working with larger multi-box line array or subwoofer systems.

  • Page 27: Ohms

    The Orange Activity LED indicates activity on the inbound Ethercon connection. 14) AUDIO OUT a) Analog mode: passive pass through b) AES mode: 110 ohms, buffered 15) AUDIO IN a) Analog mode: Balanced , 20Kohms input impedance b) AES mode: Differentially balanced, 110 ohms input impedance JBL Professional...

  • Page 28: Section 8. Hiqnet System Architect™ Software Configuration Guide

    Protective Jackets for Input and AC Power Modules Each V Series system is supplied with a pair of protective jackets that are designed to fit snugly onto the input and AC power modules of the DP2 or DP1 electronics assembly. These jackets are made of reinforced, weatherized nylon fabric with Velcro attachment strips and drawstrings to secure the opening once installed.
  • Page 29 7. Repeat the process for the other connector panel. Figure 5 JBL Professional...
  • Page 30 SECTION 8 : SYSTEM ARCHITECT SOFTWARE The VP Series has optional advanced network control capabilities with the DPAN or DPCN input modules. VP Series loudspeaker systems so equipped utilize Harman Professional’s HiQnet™ protocol to enable a complete configuration, control, and monitoring solution. HiQnet protocol provides remote access to loudspeaker preset files in the JBL DrivePack...
  • Page 31 “Obtain an IP address automatically” option. Click OK through all your open network windows to close them. Step 2) Apply power to your JBL DrivePack and wait for it to boot up. With DHCP enabled, the DrivePack and your computer should both automatically negotiate an IP Address.
  • Page 32 Step 5) Exit the wizard by clicking on Finish. Step 6) The JBL loudspeaker system will have appeared in the System Architect Venue view by this time. Now double-click on the JBL loudspeaker to see the product-specific device control panel within System Architect.
  • Page 33 IP address and subnet mask to the same range as your network. DISABLE DHCP/AUTO HIQNET ADDRESS IN SYSTEM ARCHITECT™: Step 1) Click on any previous VP Series icons showing in venue view, and press the Delete key. Step 2) Select Menu TOOLS->NETWORK WIZARD, click NEXT Step 3) The master computer should discover the HiQnet™...

  • Page 34: Glossary Of Terms

    GLOSSARY OF TERMS Auto HiQnet Address: When devices boot up, System Architect software, when configured to do so, will automatically negotiate and assign a unique HiQnet™ address to each device. The devices will then keep this address until there is a conflict at start up or the user manually assigns the device a new address. Auto-IP Address: Devices and computers, if set to use a DHCP server, and a DHCP server is not present on the network, will automatically negotiate a default IP address in the form of 169.254.xxx.xxx.
  • Page 35 The Conductor On a CobraNet network, the Conductor coordinates transmission of audio packets throughout the entire network. When two or more CobraNet devices are interconnected properly, one of them will be selected the Conductor based on their respective Conductor. JBL Professional...
  • Page 36 Priority A higher Conductor Priority over-rides a lower priority. If an operating Conductor is removed from the net- work for any reason (e.g. power turned off), the remaining devices again arbitrate and select a new Conduc- tor. All CobraNet devices have the capacity to serve as the Conductor. The Conductor periodically broadcasts a well-defined message to all CobraNet™...
  • Page 37 4. Go to the ‘Font size’ drop-down menu and select “Normal”. 5. Click on the Apply button, then “OK” to close the Display Properties panel. 6. End. APPENDIX C: Setting MS Windows Regional and Language Options to U.S. (United States) English JBL Professional...
  • Page 38 1. Open the Windows control panel. 2. Double-click on Regional and Language Options icon; Regional Options panel will open. 3. Click on the Languages tab. 4. Next, click on the ‘Details’ button. Venue Performance Series User’s Guide...

  • Page 39: Section 9. Jbl Professional Warranty

    5. The Text Services and Input Languages panel will open. 6. Go to the Default input language drop-down menu and select English (United States), U.S... Click on the OK button to close the Text Services and Input Languages panel. 7. End. JBL Professional...

  • Page 40: Section 10. Factory Contact Information

    Venue Performance Series User’s Guide...
  • Page 41 Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8850). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization.
  • Page 42 Mailing Address: Outside the USA: JBL Professional Contact the JBL Professional Distributor in 8500 Balboa Blvd. your area. A complete list of JBL Professional Northridge, CA 91329 USA international distributors is provided at our U.S.A. website - www.jblpro.com Shipping Address:...
  • Page 43 NOTES JBL Professional...
  • Page 44 Venue Performance Series User’s Guide...
  • Page 45 JBL Professional...
  • Page 46 Venue Performance Series User’s Guide...
  • Page 47 JBL Professional...
  • Page 48 Part Number: 361997-003 VP PROD GUIDE 8500 Balboa Boulevard 1010 Northridge, CA 91329 USA Visit us online at www.jblpro.com...
