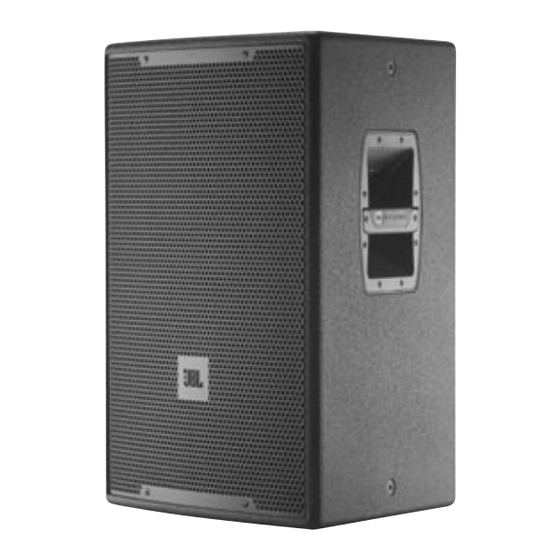

Summary of Contents for JBL VP7215

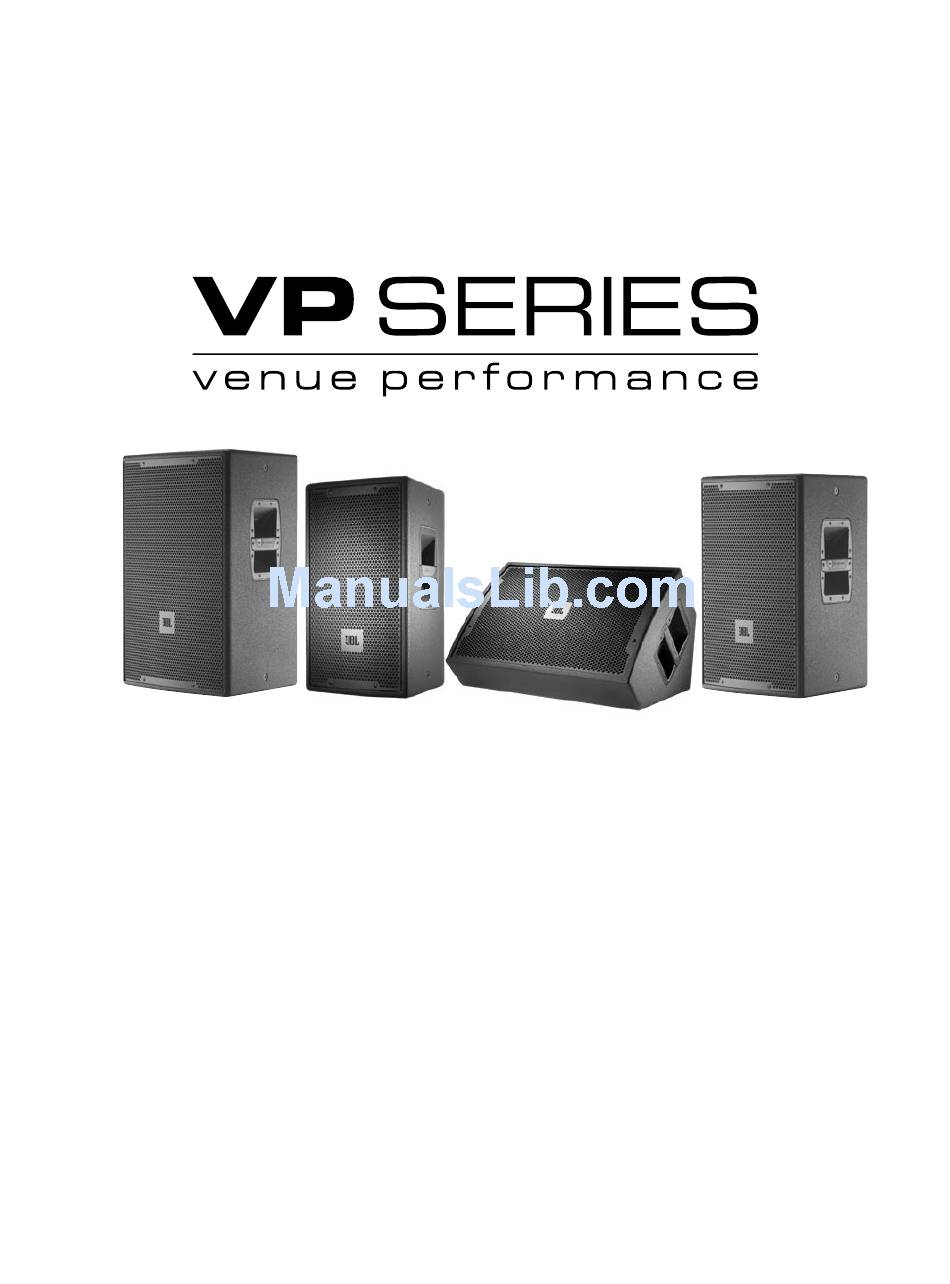

- Page 1 VP7215/95DPC VP7210/95DP VP7212MDP VP7212/95DPC DrivePack DPC-2 ® Product User’s Guide...
- Page 2 Venue Performance Series User’s Guide...
-
Page 3: Table Of Contents
Section 6. Suspension Hardware ................Page 12 Safety Precautions Industry Resources Section 7. JBL DrivePack Technology ..............Page 15 ® AC Power Module, Electrical Information Section 8. Input Panel Information................Page 19 Section 9. JBL Professional Warranty ...............Page 24 Section 10. Factory Contact Information ..............Page 25 JBL Professional... -
Page 4: Section 1. Safety Instructions
SECTION 1 : SAFETY INSTRUCTIONS Important 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 5 CAUTION: Changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment. CSA COMPLIANCE NOTICE CSA Certification Applies to Amplifier Module Only JBL Professional...
- Page 6 JBL DRIVEPACK DECLARATION OF CONFORMITY ® Safety and EMC Compliance Specifications EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio- Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits;...
-
Page 7: Section 2. Before You Begin
Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB. Package Contents • Product User’s Guide (this document) • JBL DrivePack self-powered loudspeaker ® • A.C. Power North America/Europe Cord-Set •... -
Page 8: Section 3. Introduction To Vp Series Powered Loudspeaker Systems
JBL Differential Drive woofers. The full-range models feature the JBL 2452H- ® SL large format 1.5” exit compression driver. This high frequency driver is coupled to a JBL Progressive Transition (PT) Waveguide for excellent pattern control, smooth frequency response, and low distortion. -
Page 9: Jbl2452H-Sl, 100 Mm (4 In
134 dB SPL 1m 135 dB SPL 1m Transducer Section: Low Frequency Section: JBL 2261FF, 254 mm (10 in) dia., JBL 2262FF, 381 mm (12 in) dia., JBL 2262FF, 381 mm (12 in) dia., JBL 22625FF, 381 mm (15 in) dia.,... -
Page 10: Section 4. Vp Series Transducers
The dual voice coil design places the neodymium magnets inside the voice coil assembly, completing the magnetic circuit without the heavy surrounding steel structure of conventional drivers. For more information, see JBL Tech Note Vol. 1 Number 33, “Differential Drive Transducers” Venue Performance Series User’s Guide... -
Page 11: Section 5. Enclosure Care And Maintenance
The exterior is covered with JBL’s exclusive DuraFlex™ finish. PAINTING JBL VP SERIES SYSTEM PRODUCTS Each JBL Professional VP Series system model is readily paintable. The DuraFlex finish provides a lightly textured surface that any household or industrial paint readily adheres to. The result is a speaker enclosure that is able to blend unobtrusively into the decor of any stage set or environment. -
Page 12: Section 6. Suspension Hardware
None of the information presented herein is intended as a representation or warranty on the part of JBL. Anyone making use of this information assumes all liability arising from such use. - Page 13 JBL is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures or any other abuse.
-
Page 14: Industry Resources
Safe Suspension Practices The JBL VP Series suspendable loudspeakers are supplied with built-in brackets. The system is designed to facilitate the suspension of the loudspeaker by a qualified person familiar with rigging hardware and industry practices. Improper installation may result in damage, injury or death. -
Page 15: Section 7. Jbl Drivepack Technology
Input panel via the AUDIO IN XLR connector. The JBL DPC-2 is equipped with a manual select 115V/230V Power Supply and can operate anywhere in the world that has an available 100-120VAC or 200-240VAC power source. Upon initial power-up of the DrivePack, the AC soft-start process will begin and the Blue Power LED illuminates when boot-up is completed. - Page 16 240V Europe CEE 7/7 ® Schuko type AC plug to PowerCon connector cord sets are provided with this JBL DrivePack product for light- duty shop testing or system configuration type use. One spare gray Neutrik (P/N NAC3FCB) PowerCon connector is included in the AC Power Cord Set for your convenience to create a pass-through AC power cable.
- Page 17 CAUTION: Continuous voltages 10% beyond high line at either 120VAC or 240VAC operation ranges can disrupt performance of the JBL DRIVEPACK! To avoid activation of amplifier low line/ high line protection which will interrupt audio performance, the system operator should maintain AC supply voltages within the rated voltage windows.
- Page 18 Amplifier Protection Features Thermal Management: JBL DrivePack systems are cooled by Passive Convection. No fans are used in any part of the thermal ® management system. To maintain efficient cooling it is a good practice to assure open space around the DrivePack units.
-
Page 19: Section 8. Input Panel Information
JBL DrivePack systems is similar to daisy-chaining multiple external amplifier channels together. Assuming an output device source impedance of 100 Ohms, up to 20 JBL DrivePack units typical can be linked together on one output source without using a distribution amp. JBL Professional... - Page 20 The standard DPC-2 input panel features analog audio inputs and sophisticated onboard digital signal processing technology. Precision Bandpass limiting, pre-equalization filters and automatic self-protection functions ensure optimized performance. JBL engineers have calibrated DSP speaker management and limiter parameters to ensure smooth phase response and transfer function curves right out of the box.
-
Page 21: Ohms
Gray Outlet connectors are not interchangeable. CAUTION: Looping more than three DPC-2 systems together is not recommended! Do not exceed 80% current rating of any AC connector at any time! Refer to AC Power Rating Tables in this document for current draw information. JBL Professional... - Page 22 The VP7212MDP input panel is optimized for high impact stage monitor use and features analog audio inputs and sophisticated onboard digital signal processing technology. Precision Bandpass limiting, pre-equalization filters and application specific DSP presets ensure flexible and reliable performance. JBL engineers have calibrated DSP speaker management and limiter parameters to ensure smooth phase response and transfer function curves right out of the box.
- Page 23 Gray Outlet connectors are not interchangable. CAUTION: Looping more than three DPC-2 systems together is not recommended! Do not exceed 80% current rating of any AC connector at any time! Refer to AC Power Rating Tables in this document for current draw information. JBL Professional...
-
Page 24: Section 9. Jbl Professional Warranty
Venue Performance Series User’s Guide... -
Page 25: Section 10. Factory Contact Information
Service Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893- 8850). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. - Page 26 Mailing Address: Outside the USA: JBL Professional Contact the JBL Professional Distributor in 8500 Balboa Blvd. your area. A complete list of JBL Professional Northridge, CA 91329 USA international distributors is provided at our U.S.A. website - www.jblpro.com Shipping Address:...
- Page 27 JBL Professional...
- Page 28 Part Number: 363642-003 VP PROD GUIDE 8500 Balboa Boulevard 0908 Northridge, CA 91329 USA Visit us online at www.jblpro.com...
