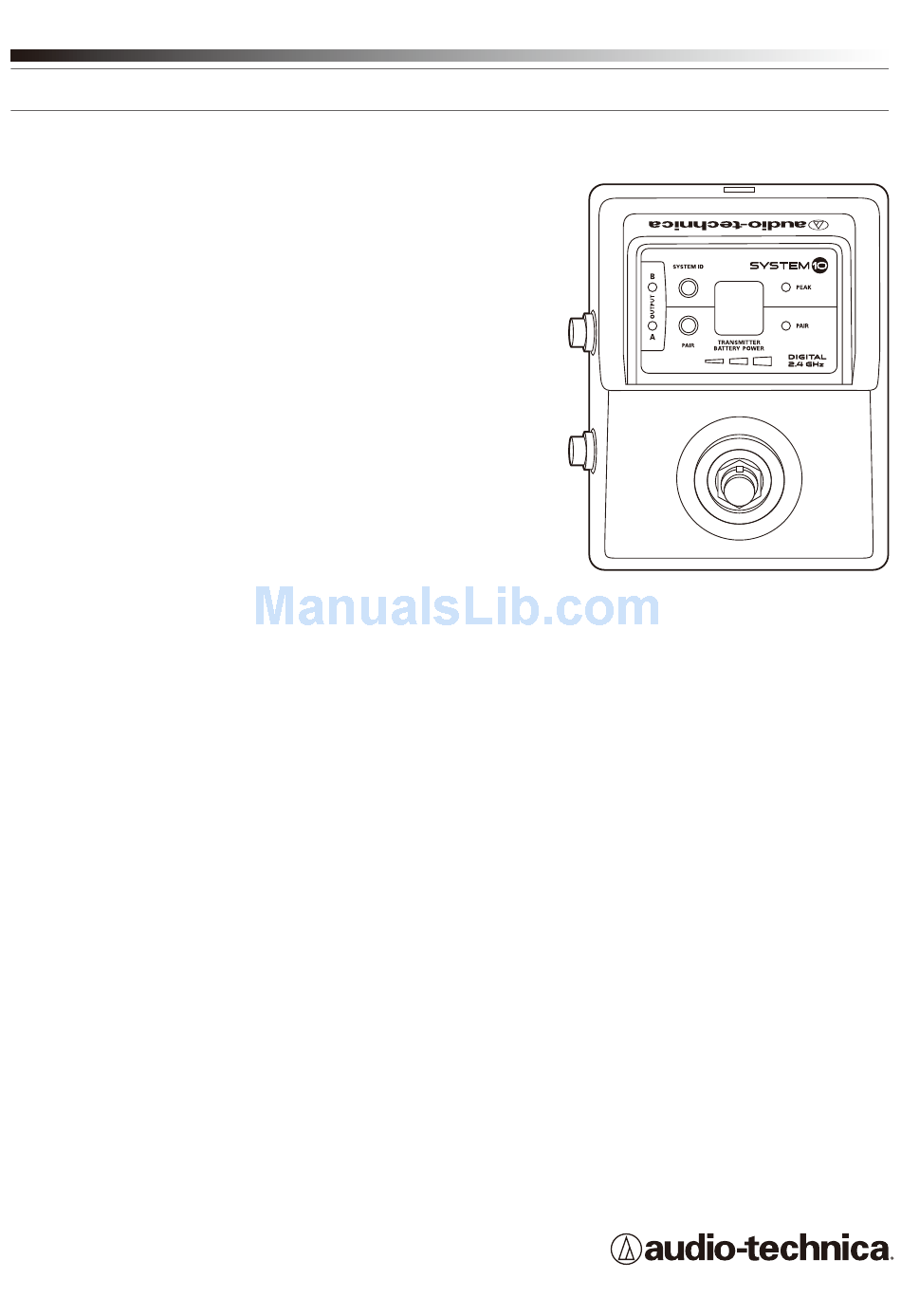

- Page 1 System 10 Stompbox Digital Wireless System Installation and Operation ATW-1501 Stompbox Wireless System...
- Page 2 System 10 Stompbox Installation and Operation Thank you for choosing an Audio-Technica professional wireless CAUTION system. You have joined thousands of other satisfied customers who RISK OF ELECTRIC SHOCK have chosen our products because of their quality, performance and DO NOT OPEN reliability.
-
Page 3: Receiver Installation
System 10 Stompbox Installation and Operation Receiver Installation Each System 10 Stompbox professional digital wireless system includes an ATW-R1500 Stompbox receiver, an ATW-T1001EX Location UniPak body-pack transmitter with an AT-GcW guitar cable, and ® For best operation, the receiver should be at least 3' (1 m) away from hook &... - Page 4 System 10 Stompbox Installation and Operation Microphone / Instrument Level Control Pairing Switch Screwdriver System ID Display Battery Compartment Figure C — ATW-T1001EX UniPak Transmitter ® UniPak ® Transmitter Battery Installation 1. Slide off the battery cover. 2. Carefully insert two fresh AA alkaline batteries, observing polarity markings.
-
Page 5: System Operation
System 10 Stompbox Installation and Operation System Operation Note: System ID is an identical number assigned to a paired receiver and transmitter for identification purposes. The System ID number is not related to transmitting frequency. Due to the dynamic Turn down the mixer/amplifier level before starting up the wireless nature of System 10 automatic frequency selection, the actual system. -
Page 6: System Frequencies
System 10 Stompbox Installation and Operation Ten Tips to Obtain the Best Results System Operating Frequencies 1. Use only fresh alkaline or fully charged rechargeable batteries. Automatic Frequency Selection System 10 Stompbox wireless systems operate in automatically select- 2. Position the receiver so that it has the fewest possible obstructions ed frequencies in the 2.4 GHz range, far from TV and DTV interference. -
Page 7: Specifications
System 10 Stompbox Installation and Operation Specifications OVERALL SYSTEM UNIPAK TRANSMITTER ® Operating Frequencies 2.4 GHz ISM band RF Output Power 10 mW Dynamic Range >109 dB (A-weighted), typical Spurious Emissions Following federal and national regulations Total Harmonic Distortion <0.05% typical Input Connection Four-pin Locking Connector Operating Range... - Page 8 System 10 Stompbox Installation and Operation To reduce the environmental impact of a multi-language printed document, product information is available online at www.audio-technica.com in a selection of languages. Afin de réduire l’impact sur l’environnement de l’impression de plusieurs langues, les informations concernant les produits sont disponibles sur le site www.audio-technica.com dans une large sélection de langue.
