Overview
Notes
• W hen you adjust to the ZOOM & FOCUS of the lens, Please remove the front cover
from the camera, by turning the cover counterclockwise.
• T o adjust the zoom & focus loosen the individual levers before tightening them
again.
• T o ensure the weatherproof integrity is maintained, ensure the front cover is
tightened correctly.

BACK

❿
Power input terminal : Connect the power as specified for each model here.
❽
Video output terminal : Video signals are output through this port. Connect
9
this port to the Video IN port of a monitor.
RS-485 control terminal :
❿
You can control SETUP MENU through this port by using external controllers like a
Remote controller that RS-485 Communication is supported. For details, see page 14.
COLOR CCD CAMERA
➑
9
10
User Guide

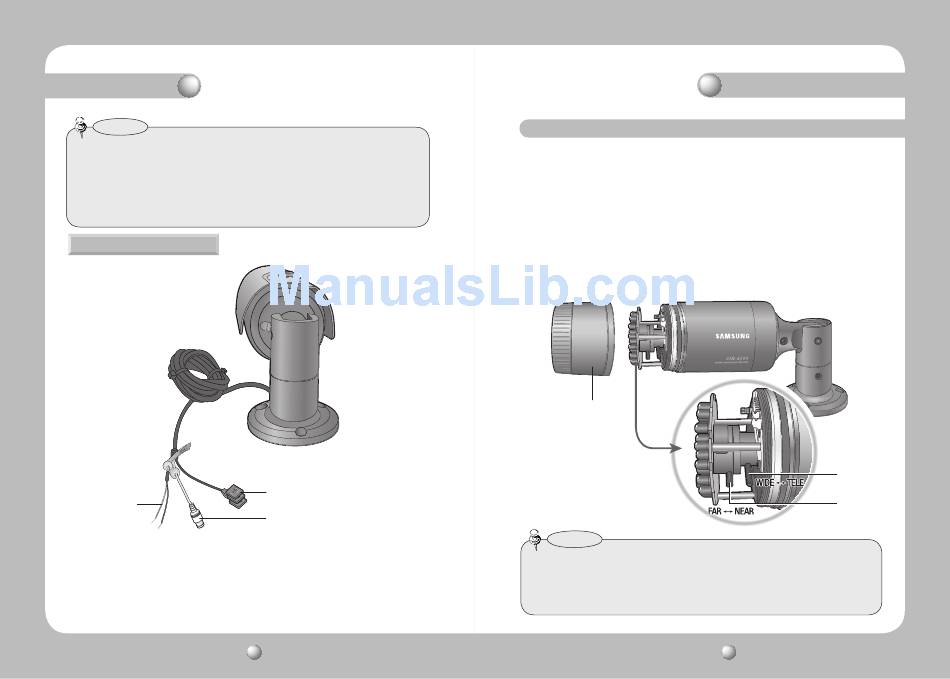

Adjust the lens's zoom and focus
1. Remove the sunshield from the camera.
2. Remove the front cover from the camera by turning it counterclockwise.
3. Unlock the Zoom or Focus lever before adjusting the lens.
4. Adjust the zoom & focus by moving the lever counterclockwise for (NEAR & TELE)
and clockwise for (WIDE & FAR) position.
5. After adjustment, tighten the zoom or focus levers, taking care not to adjust the
zoom/focus position.
6. Please, close and tighten the front cover.
7. Replace the sunshield.
Front cover
Notes
• I f the front cover is cross threaded or not correctly tightened the camera housing
will not be weatherproof.
• W hen you combine the front cover, combine the triangle of front cover and triangle
of main body confront each other.
COLOR CCD CAMERA

Adjust to Lens

ZOOM lever
Focus lever
11
User Guide
