Tripp Lite IBAR12-20ULTRA Specifications

Model #: IBAR12-20ULTRA
Isobar Surge Suppressor- Rackmount surge, spike and line noise protection
Description

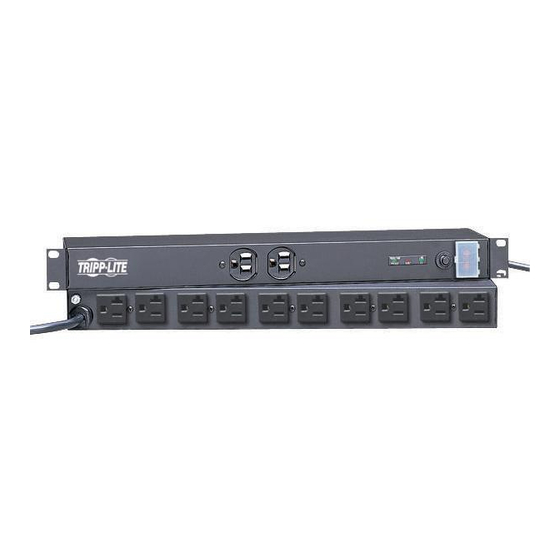

Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input
plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack
space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are
arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear
mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line
fault and protection status. Lifetime warranty with $25,000 ultimate lifetime Insurance (USA & Canada Only) coverage .
PLUG/OUTLETS: Input: NEMA 5-20P / Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)
ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping / 1280 joules / 60,000 amps
FORMAT: Supports 19 in. rackmount (uses 1 rack space / 1U), wallmount, under-counter and more
Applications
Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as
internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more
Package Includes
IBAR12/20ULTRA Surge Suppressor
Warranty information
Instruction manual
Highlights
12 outlets (15- and 20-amp)/15 ft. cord
1280 joule rating
All metal housing with LEDs
Adjustable rackmount hardware
$25,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
Estimated Retail Pricing: $220.00
