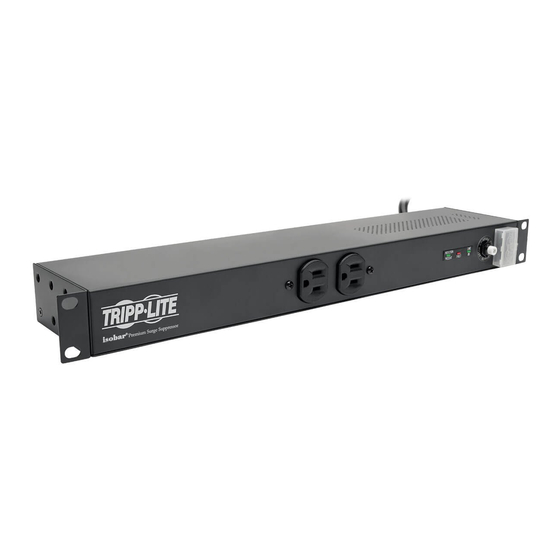

Rackmount Power Strips and Isobar
Rackmount Surge Suppressors/
Designed to Occupy One Standard 19 in. Rack Space
IMPORTANT SAFETY INSTRUCTIONS. This manual contains information concerning the proper installation
and use of Tripp Lite's Rackmount Power Strips and Isobar Surge Suppressors. SAVE THESE INSTRUCTIONS.
Devices with surge protection feature an internal protection that will disconnect the surge protective
component at the end of its useful life but will maintain power to the load—now unprotected.
(IBAR12, ISOBAR12ULTRA, RS-1215, RS-1215-RA, RS-1215-HG, DRS-1215):
DO NOT exceed the MAXIMUM LOAD of 15 amps that can be drawn from
each AC outlet. DO NOT exceed the MAXIMUM LOAD of 15 amps that can be
drawn from all the outlets combined.
(IBAR12/20ULTRA, IBAR12-20T, RS-1215-20): DO NOT exceed the MAXIMUM LOAD of 15
amps that can be drawn from each AC outlet located on the front of the IBAR12/20ULTRA
and IBAR12-20T. DO NOT exceed the MAXIMUM LOAD of 20 amps that can be drawn from
each AC outlet on the RS-1215-20, or each AC outlet located on the rear of the
IBAR12/20ULTRA and IBAR12-20T. DO NOT exceed the MAXIMUM LOAD of 20 amps that
can be drawn from all the outlets combined.
Rackmount Installation
To Mount Unit in Rack: Put four user-supplied rackmount
screws (A) through the unit's mounting ears (B) and into
the rack rails as shown. The user must determine the fitness
of the rackmount screws to hold the unit in the rack before
installation.
Wallmount/Under Counter Installation
1. Detach Mounting Ears: Unscrew the screws (A) holding
the unit's mounting ears (B) to the sides of the unit.
2. Reorient Mounting Ears: Use the screws from Step 1 (A)
to reattach the mounting ears (B) to the unit as shown.
Use only the manufacturer-supplied screws or their
equivalent (#6-32, ¼" flat head) to reattach the mounting
ears. The screws should be put through diagonally
opposite holes on the ear.
3. Mount Unit on Surface: Put four user-supplied screws
(C) or similar mounting hardware through the unit's
mounting ears (B) and into the mounting surface as
shown. The user must determine the fitness of the user-
supplied mounting hardware to support the unit before
mounting.
Line-Noise Filters
Español: p. 5 • Français: p. 9
Owner's Manual
®
Step 1
Steps 2 & 3
Advertisement
Table of Contents
Related Manuals for Tripp Lite Rackmount Power Strips and Isobar Rackmount Surge Suppressors/ Line-Noise Filters
Summary of Contents for Tripp Lite Rackmount Power Strips and Isobar Rackmount Surge Suppressors/ Line-Noise Filters
- Page 1 IMPORTANT SAFETY INSTRUCTIONS. This manual contains information concerning the proper installation and use of Tripp Lite’s Rackmount Power Strips and Isobar Surge Suppressors. SAVE THESE INSTRUCTIONS. Devices with surge protection feature an internal protection that will disconnect the surge protective component at the end of its useful life but will maintain power to the load—now unprotected.
-
Page 2: Specifications
If the Line Fault indicator light illuminates and power is not present at the outlets, the ISOBAR’s surge-suppression components have been compromised as a result of surge damage. For service, call Tripp Lite Customer Support at (773) 869-1234. Fully explain the perceived problem to the customer support person. They will either remedy the problem over the phone or give you instructions about return, repair or exchange. -
Page 3: Manual De Operación
All claims under this warranty must be submitted in writing to Tripp Lite within 30 days of the occurrence or the claim will not be considered. -
Page 4: Especificaciones
ISOBAR como resultado de un daño provocado por la sobretensión. Para darle servicio, llame al departamento de Atención al Cliente de Tripp Lite al (773) 869-1234. Deberá explicar con detalle el problema detectado al personal de atención al cliente. Ellos resolverán el problema por teléfono o le darán instrucciones acerca del proceso de... -
Page 5: Guide De L'utilisateur
El límite para el reembolso en dólares será igual al valor del equipo de protección de Tripp Lite. La cobertura no será válida si no se proporciona un entorno adecuado para el dispositivo de protección, incluyendo, pero sin limitarse a, la carencia de una... - Page 6 été endommagés en raison de dommages causés par la surtension. Communiquez avec le Service à la clientèle de Tripp Lite au (773) 869-1234 pour la réparation. Expliquez en détail le problème au représentant du service à la clientèle.
- Page 7 à sa seule discrétion. La réparation visée par la présente garantie ne peut être obtenue qu'en renvoyant le produit (frais d'expédition ou de livraison prépayés) à : Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Le vendeur paiera les frais d'expédition de retour.
