Lennox ComfortSense L3011C Operation Manual

E2008 Lennox Industries Inc.
Dallas, Texas, USA
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE

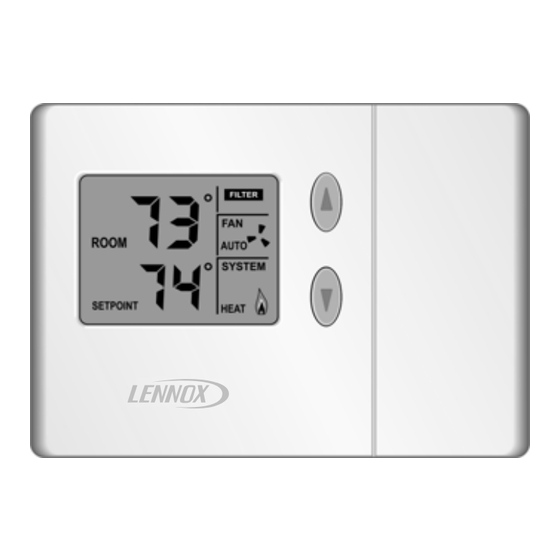

L3011C Thermostat

The Lennox ComfortSenset 3000 Series model L3011C
non-programmable electronic thermostat is easy-to-use,
has a large, easy-to-read display, and provides excellent
temperature control. The thermostat also includes a pro-
grammable filter change reminder, and a system check in-
dicator which will notify the user of the need for equipment
service.
Thermostat model L3011C t is suitable for non-heat pump,
single−stage heat/single cool applications that are
matched with a gas or electric furnace.

General

These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
Check equipment for shipping damage. If you find any
damage, immediately contact the last carrier.

Introduction

This document describes the operation of Lennox model
L3011C thermostat. Refer to the installation manual for
instructions regarding installation and wiring of the thermo-
stat.
02/08
*2P0208*
OPERATION MANUAL
ComfortSenset 3000 Series
Model No. L3011C
Non-Programmable Thermostat
CONTROLS
506079−01
02/08
Supersedes 504,865M

Table of Contents

L3011C Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Thermostat Power-up
Heating Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Temperature Setpoint
Fan Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Default Thermostat Settings
Technical Specifications
Thermostat Output Table

Initial Thermostat Power-up

When power is initially applied to the thermostat, the dis-
play will appear as shown in figure 1.
88
ROOM
SETPOINT
Figure 1. Display − Initial Power−Up
All display segments are momentarily activated. This oc-
curs as a normal part of thermostat initialization. Within a
few seconds, the display will appear as shown in figure 2
(figure shows temperature in Fahrenheit units).
*P506079-01*
Litho U.S.A.
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
FILTER
SERVICE
FAN
ON
88
AUTO
SYSTEM
COOL
OFF
EMG.
HEAT
506079−01
1
1
1
1
2
2
3
3
4
4
5
5
5
6
