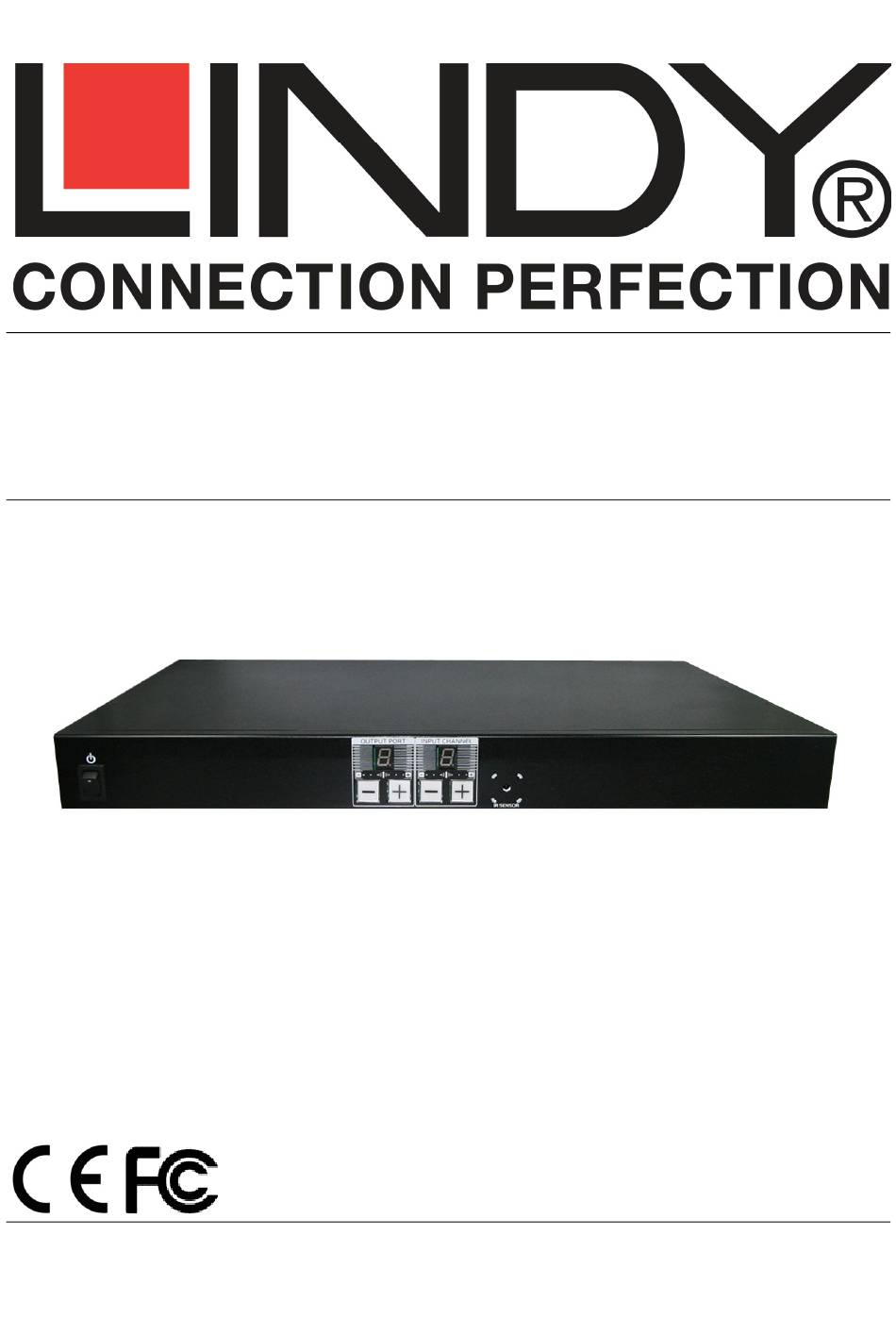

- Page 1 8x8 DVI Matrix Manual English LINDY No. 38088 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION January 2012...

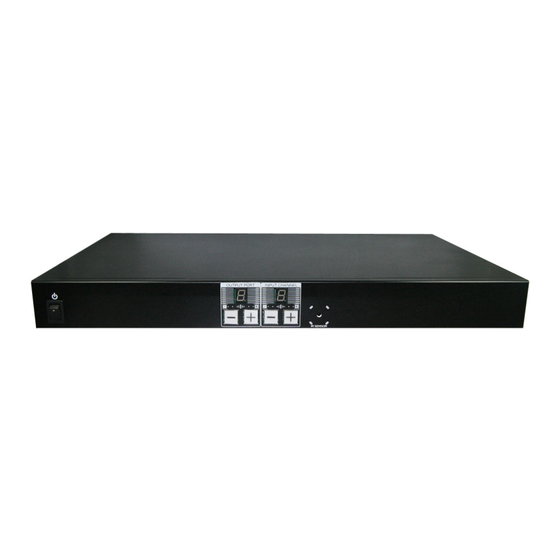

- Page 3 Manual Thank you for purchasing the LINDY 8x8 DVI-D Single Link Matrix with remote control. This high performance matrix offers maximum convenience in DVI distribution when you have multiple DVI sources and displays to connect together. Each of the eight DVI inputs can be directed to any of the eight DVI outputs, so your displays can show up to eight different sources at the same time.
- Page 4 2. For USB control, set Pins 1, 2 & 3 to “off” and Pin 4 to “on”. 3. Firmware update mode can only be used via RS-232 with the PC set to COM1. Power off your LINDY 8x8 DVI Matrix and connect your serial cable to the RS-232 port and serial port of your PC.
- Page 5 Manual 5. Scan: Press the “scan” button, select “scan”, then select the detected port and click OK. 6. Setting: Press the “setting” button then press the “get” button to read back the device ID. Press the “set” button to write the device ID. 7.
- Page 6 Manual 10. Fast Select: Input Num – Output Num: This will set all input Ports to its corresponding output port ie. 1 to 2, 2 to 2 Input 1-8 – All Output: Quickly send the same source to all outputs Command Set RS-232 Transmission format: •...
-
Page 7: Weee (Waste Of Electrical And Electronic Equipment)
Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No. 38088 Edition January 2012 www.lindy.com...
