Jensen CD-1213 Installation Manual

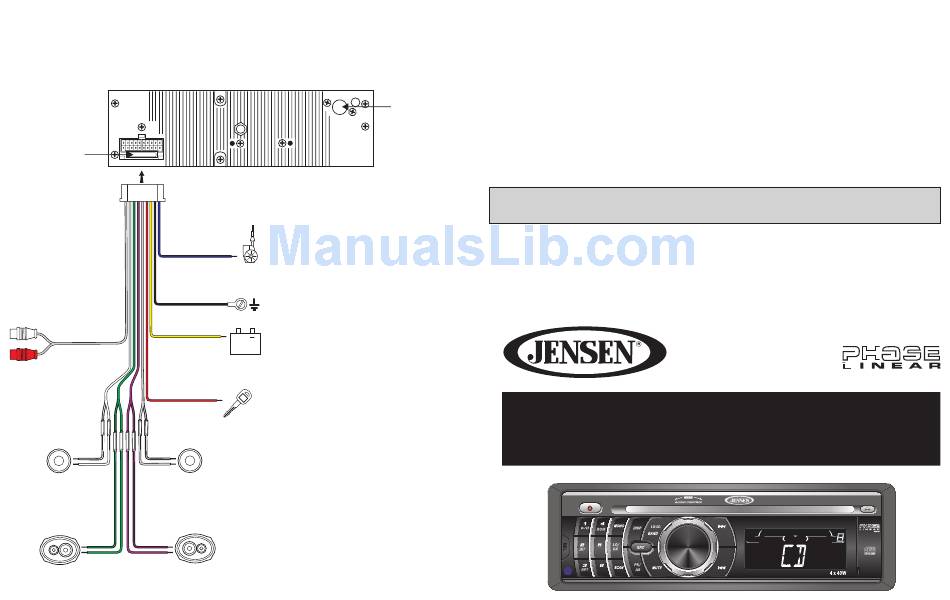

Wiring Diagram
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have
the installation handled by an experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
15 Amp Fuse
15
NOTE: When replacing a
fuse, make sure the new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio. This
Dark Blue
head unit uses one 15
amp fuse located below
the wiring connector (15
amp fast blow ATO).
Black
Yellow
Grey
RCA Outputs to Amplifi er
Red
Left Front Speaker
Grey/Black (-)
White/Black (-)
White (+) Grey (+)
Left Rear Speaker
Green/Black (-) Violet/Black (-)
Green (+) Violet (+)
Power Antenna (dark blue wire) Connect to
the power antenna or an amplifi er. If not used,
tape the bare end of wire.
Ground (black wire)
Connect to the ground terminal or a clean,
unpainted part of the chassis.
Memory/Battery (yellow wire)
+
Connect to the battery or to a 12 volt power
source that is always live. The radio will not
work if this wire is not connected.
Accessory/Ignition (red wire)
Connect to the existing radio wire or radio fuse.
Right Front Speaker
Right Rear Speaker
What's in the Box
• CD1213 Head Unit
• Cosmetic Trim Ring
• Wiring Harness Power/Speaker
• Mounting Hardware
• Remote Control
• 3.5mm Media Cable
• Owners Manual
Antenna
• Installation Guide
WARNING! Never install this unit where operation and viewing could interfere with safe driving
conditions.
Tools and Supplies
You will need these tools and supplies to install your
CD1213:
• Torx type, fl at-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver,
socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
CD1213
Installation Guide
CD1213
SERIES
AUX IN
