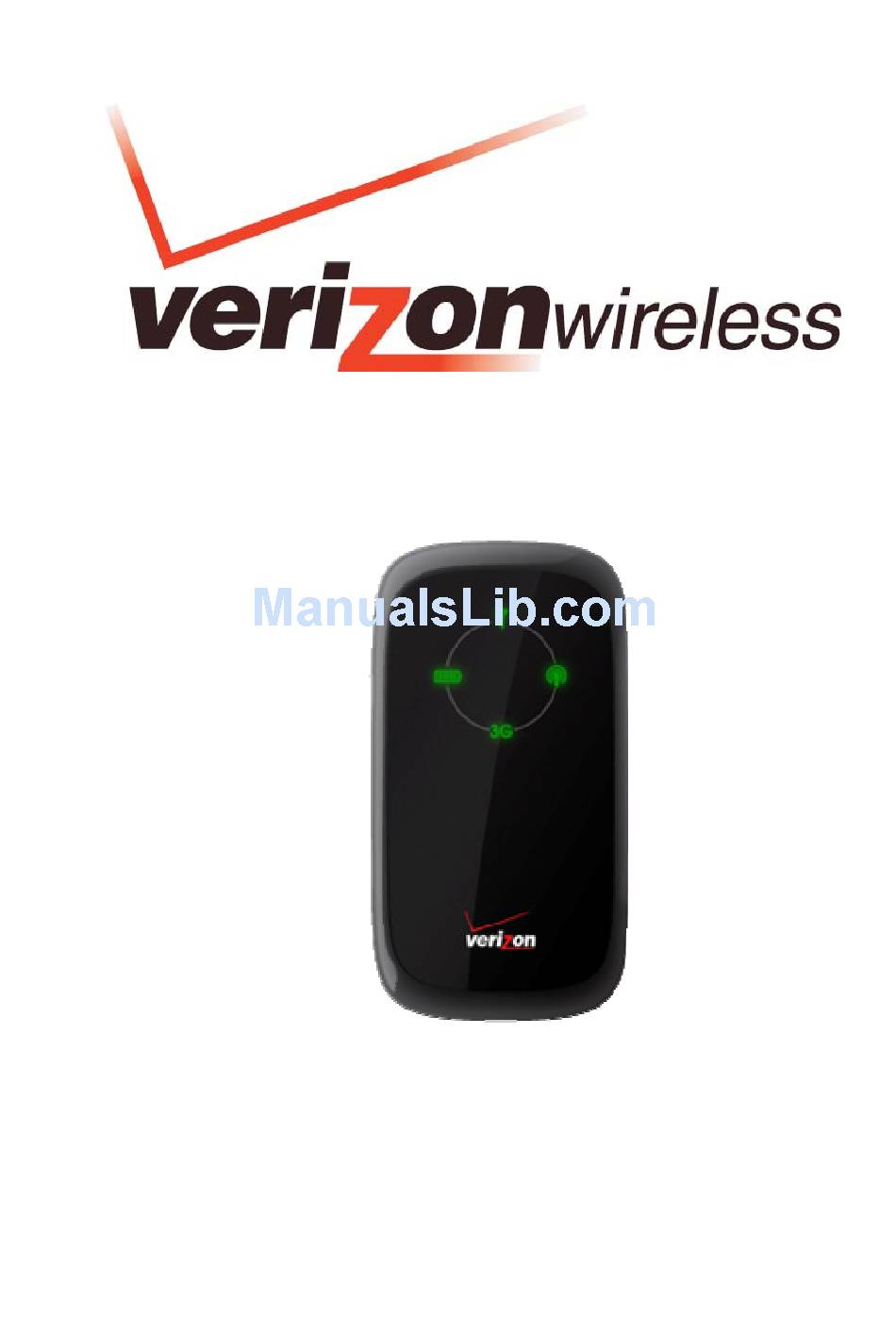

- Page 1 MOBILE BROADBAND / GLOBALACCESS VERIZON WIRELESS FIVESPOT™ GlobalReady™ 3G Mobile Hotspot USER Guide...
-
Page 2: Table Of Contents
Inserting and charging the battery ....................... 10 Installing the SIM Card* ..........................11 Connection options............................12 Setting up the Fivespot for the First Time ......................13 Connecting to the Internet ........................... 15 Fivespot Wi-Fi Setting ............................18 Welcome Page ............................. 18 Home Page .............................. -
Page 3: Welcome
The Fivespot is a global data device that operates on the reliable Verizon Wireless Mobile Broadband and GlobalAccess networks* in America, Europe or Asia. 3G Mobile Hotspot is enabling you to connect multiple devices at high speeds to the Internet, your corporate Intranet, Wi-Fi-enabled devices and email virtually anywhere! Fivespot Technology Bands: CDMA 1X/EVDO Rev0/A 800/1900 MHz;... -
Page 4: Wireless Communications
Wireless Communications Important Notice Due to the transmitting and receiving properties during wireless communications, the data can occasionally be lost or delayed. This can be due to the variation in radio signal strength that results from changes in the characteristics of the radio transmission path. -
Page 5: Limitation Of Liability
In some countries, operating such communications devices while in control of a vehicle is an offense. Limitation of liability The information contained in this document is subject to change without notice and should not be construed as a commitment by Verizon wireless Inc. Copyright ©2010 by Verizon wireless, Inc. All rights reserved. -
Page 6: Fivespot Hardware: Overview
Fivespot Hardware: Overview Thank you for choosing Verizon Wireless Fivespot™ Global Ready™ 3G Mobile Hotspot by ZTE with Mobile Broadband, Global Access and 3G Mobile Hotspot! With Fivespot Global ready 3G Mobile Hotspot, you can: • Connect to High Speed Wireless Data(Mobile Broadband) •... -
Page 7: Additional Features Include
2-Way Short Messaging Service (SMS) (VZAccess Manager only) GPS/LBS support About your Fivespot Global Ready 3G Mobile Hotspot 1. Power Key Press and hold the Power key for three seconds to switch the device on, or press and hold the Power key for 10 seconds to switch the device off. -
Page 8: Care Of Your Fivespot
The device must work with the battery even though it is connected with a charger or PC USB port. Care of Your Fivespot As with any electronic device, Fivespot must be handled with care to ensure reliable operation. Verizon Wireless recommends the following handling guidelines: Do not apply adhesive labels to Fivespot;... - Page 9 - with the reliability and coverage of Verizon Wireless Mobile Broadband. NOTE: When multiple users are connected to the Fivespot, all their data usage will be aggregated and applied to the Mobile Broadband customer’s monthly allowance. • Verizon Wi-Fi—Mobile Broadband customers on America’ s Largest and Most Reliable 3G Network have Internet access at thousands of Verizon Wi-Fi hotspots across the U.S., Canada and Mexico—without using a single...
-
Page 10: Getting Started
Getting Started This section provides information and instructions for setting up the Fivespot 3G Global Hotspot for the first time. Before you begin using your device, you must first install VZAccess Manager on your computer. The comprehensive Quick Reference Guide that was included in the box when you purchased your device and the VZAccess Manager Software User Guide details the installation and configuration of your Fivespot with VZAccess Manager. -
Page 11: Installing The Sim Card
1. Remove SIM Card from the outer card, beingcareful not to touch the gold contacts. 2. Remove the battery cover from your wireless device. Remove the battery. Hold the card with the Verizon Wireless/Vodafone logo facing you and the gold contact points properly aligned with the SIM Card slot. -
Page 12: Connection Options
IMPORTANT: Prior to using GlobalAccess service outside of the U.S., you must: 1. Ensure VZAccess Manager is properly installed on your computer. 2. Ensure a GlobalAccess service plan is activated on your Fivespot. Connection options There are two connection options for this device: USB Mode: Connect the device to your notebook via the included USB cable, then power on your device. -
Page 13: Setting Up The Fivespot For The First Time
2. Insert the USB cable into the Mini USB port on your device and the other end into the USB port of your computer. 3. To turn your Fivespot on, press and hold the Power button until the signal icon is lit. - Page 14 2. Insert the USB cable into the Mini USB port on your device and the other end into the USB port of your computer. 3. To turn your Fivespot on, press and hold the Power button until the signal icon is lit. The VZAccess Manager CD icon appears.
-
Page 15: Connecting To The Internet
With your new wireless device and your computer, a wireless Internet connection can always be at your fingertips. Refer to the User Guides on your device to see how easy it is to get connected. The Fivespot may be used with or without the USB cable. - Page 16 1. Use your normal Wi-Fi application on your computer to establish a connection to your device. 2. Look for the network (SSID) named “Verizon AC30 XXXX.” printed on the back of your Fivespot. The final 4 characters are unique to your device.
- Page 17 Using the Fivespot in USB mode: 1. Ensure VZAccess Manager and activation are complete per “The Basics” section prior to leaving the U.S. 2. Ensure the SIM Card is inserted into the Fivespot. 27ICS 3. Launch VZAccess Manager, if not already running.
-
Page 18: Fivespot Wi-Fi Setting
Fivesot. - The Wi-Fi settings must match those in use on the Fivespot. If using the default settings, refer to the Quick Start Guide for the default values. If you have previously changed the default profile on the Fivespot, or are using a different profile, use the values previously set on the Fivespot. -
Page 19: Home Page
SIM card status : SIM card is detected. NOTE: The parameter “Global Access” have several values: HOME: Registered on the network of Verizon Wireless. EXTENDED NETWORK: Registered on the network of other operators. INTERNATIONAL: Roaming outside the USA. ROAMING: Roaming. -
Page 20: Basic Setup
SSID is used to uniquely identify your WLAN. If you enable SSID Broadcast, the gateway will broadcast the SSID, and any Wi-Fi enabled device nearby can detect it. Encryption will keep your Fivespot away from unauthorized monitor and access, select one encryption mode from the list, and then set key for it. - Page 21 Click Refresh to update the wireless information. NOTE: The parameter “Global Access” have several values: HOME: Registered on the network of Verizon Wireless. EXTENDED NETWORK: Registered on the network of other operators. INTERNATIONAL: Roaming outside the USA. ROAMING: Roaming. Network Select Select WAN Settings→Network Select to access:...
-
Page 22: Hotspot
device will automatically connect to WAN when it is powered on. 2. Auto Connect (GlobalAccess Mode): The device will automatically connect to WAN when it is powered on no matter on which network it is registered. 3. Manual Connect: Connect/Disconnect to Internet manually. Click Apply to confirm your configuration Hotspot Select Hotspot→LAN to access:... -
Page 23: Wi-Fi Settings
Wi-Fi Settings Connected Devices Select Wi-Fi Settings→Connected Devices to access: Basic Select Wi-Fi Settings→Basic to access: Network Mode: If all of the wireless devices connect with this device in the same transmission mode, performance will be improved by choosing the appropriate wireless mode. Network Name(SSID): Service Set Identifier(SSID). - Page 24 Unless one of these encryption modes is selected, wireless transmissions to and from your wireless network can be easily intercepted and interpreted by unauthorized users. The security modes are described below: OPEN: You can authenticate successfully with a SSID, whether it is valid or empty. SHARED: The WLAN clients who have the same WEP key with wireless gateway can pass the authentication and access the wireless network.
-
Page 25: Firewall
Firewall MAC/IP/Port Filtering Select Firewall→MAC/IP/Port Filtering to access: If you select Enable, the filter settings will appear:... - Page 26 Default Policy: Set how to handle the packet if none of the rules matches. MAC address: Set the MAC address that will be filtered. Dest IP Address: Set the destination IP address that will be filtered. Source IP Address: Set the source IP address that will be filtered. Applications: Set which application will be used for filtering.
- Page 27 clear what you select or input. To add a new rule: a) Select Enable and click Apply in the Basic Settings area. b) Input the detail information in the Mac/Ip/Port Filtering area. c) Click Apply in the Mac/Ip/Port Filtering area. Port Forwarding Select Firewall→Port Forwarding to access: If you select Enable, the Virtual Server Settings will appear:...
-
Page 28: Advanced
add a new rule. Click Delete to delete the rule which you selected. Click Reset to clear what you select or input. System Security Select Firewall→System security to access: You can enable or disable “log in from WAN” function. Click Apply to confirm your configure, or click Reset to cancel your configuration. - Page 29 Click Restore to set Wi-Fi related settings to their factory default values, then the device will restart automatically. Click Reboot to restart the device.
-
Page 30: Fivespot Specification
Fivespot Specification Technical Specifications TABLE 1 Name: Global Mobile Hotspot Model: Verizon Wireless Fivespot™ 3G FCC，CE，CDG，GCF，CTIA1725， Approvals: Wi-Fi Weight 2.82oz Dimensions: 3.92in*2.11in*0.55in CDMA2000® 1xEV-DO, UMTS (HSDPA HSUPA), Wireless wide-area Network GSM/GPRS/EDGE Chip Set Qualcomm MSM7625™ Interface Type: Mini USB Port TABLE 2 CDMA2000 1xRTT/CDMA2000 1xEV-DO, Rev. - Page 31 1500MHz Wi-Fi Bands 2400MHz-2483.5MHz TABLE 3 Operating Temperature 32°F to 95°F Storage Temperature -4 to 122°F Relative Humidity 5%~ 95% Drop 3.937FT drop, no damage – fully operational Vibration Stability 5HZ-500HZ.0.1 octave/second NOTE: Do not leave the device or the battery in places where the temperature could exceed 122°F, e.g. on a car dashboard or a windowsill, behind glass in direct sunlight, etc.
-
Page 32: Troubleshooting
Troubleshooting Wi-Fi Mode I cannot access the internet at all. Please check your configuration settings. Please wait 1~ 2 minutes for the device to initialize. Check your service indicator LED’s. I forget the Wi-Fi password that I set before Please press the power key continually 10 times within 15 seconds, then AC30 will reboot automatically with the default Wi-Fi password being restored. -
Page 33: Health And Safety Information
Health and safety information Mobile operation Important safety information regarding radio frequency (RF) radiation exposure. To ensure compliance with RF exposure guidelines the phone must be used with a minimum of 20 cm separation from the body. Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits. -
Page 34: Limited Warranty And Liability
Limited Warranty and Liability ZTE Corporation warrants for the 12 month period immediately following receipt of the Device by Purchaser that the Device will be free from defects in material and workmanship under normal use. THESE WARRANTIES ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. -
Page 35: Glossary
Glossary 1xRTT Short for single carrier (1x) Radio Transmission Technology. A high speed wireless technology based on the CDMA platform. 1xRTT has the capability of providing broadband-like speeds of up to 144 Kbps. 1xRTT is also referred to as CDMA2000. 1xEVDO Part of a family of CDMA2000 1x digital wireless standards. - Page 36 Mbps Megabits per second Personal Digital Assistant. A handheld device used for organization, notes, address books, etc. Rev A CDMA EV-DO Rev. A is a leading-edge wireless technology with higher data rates and higher system capacity. It is a fully backward compatible standard and remains interoperable with deployed EV-DO networks and devices around the world.
-
Page 37: Trademarks And Service Marks
Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners.
