Hotpoint RGA520EW Datasheet

RGA520PW—20" Compact Gas Range

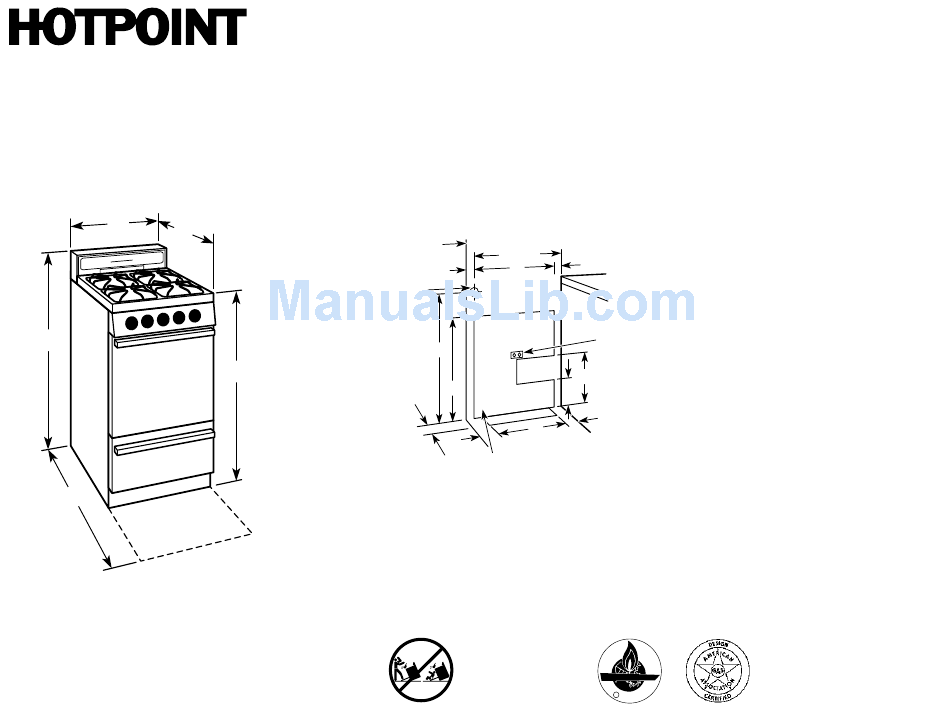

Dimensions (in inches)
20
24-3/4
40-1/2
40-1/4*
Created 2/97
Location for
hardpipe
connection
36
Check local codes
before making
connections
*Depth including
up-front angled
control panel
Installation Information (in inches)
Left side
of range
18-1/4
16
2
to range
33
24
12
4
2-1/2
Recommended gas hook-up locations
behind range. Gas fittings and shut-off
cock should not protrude more than
2-1/2" from wall to allow range to fit
against wall
For answers to your GE Monogram,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center ® service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
2
Polarized 120V.
Outlet to be
located 6" to
24" from floor
14
8
4
™ GE Profile, ™
CANADIAN GAS ASSOCIATION
R
APPROVED
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
