3. Place the speaker (without the grill ring) in the hole and position with
mounting screw holes straight across from each other. Mark the mounting holes
and draw a line around the top of the speaker basket.
4. Remove the speaker from the hole.

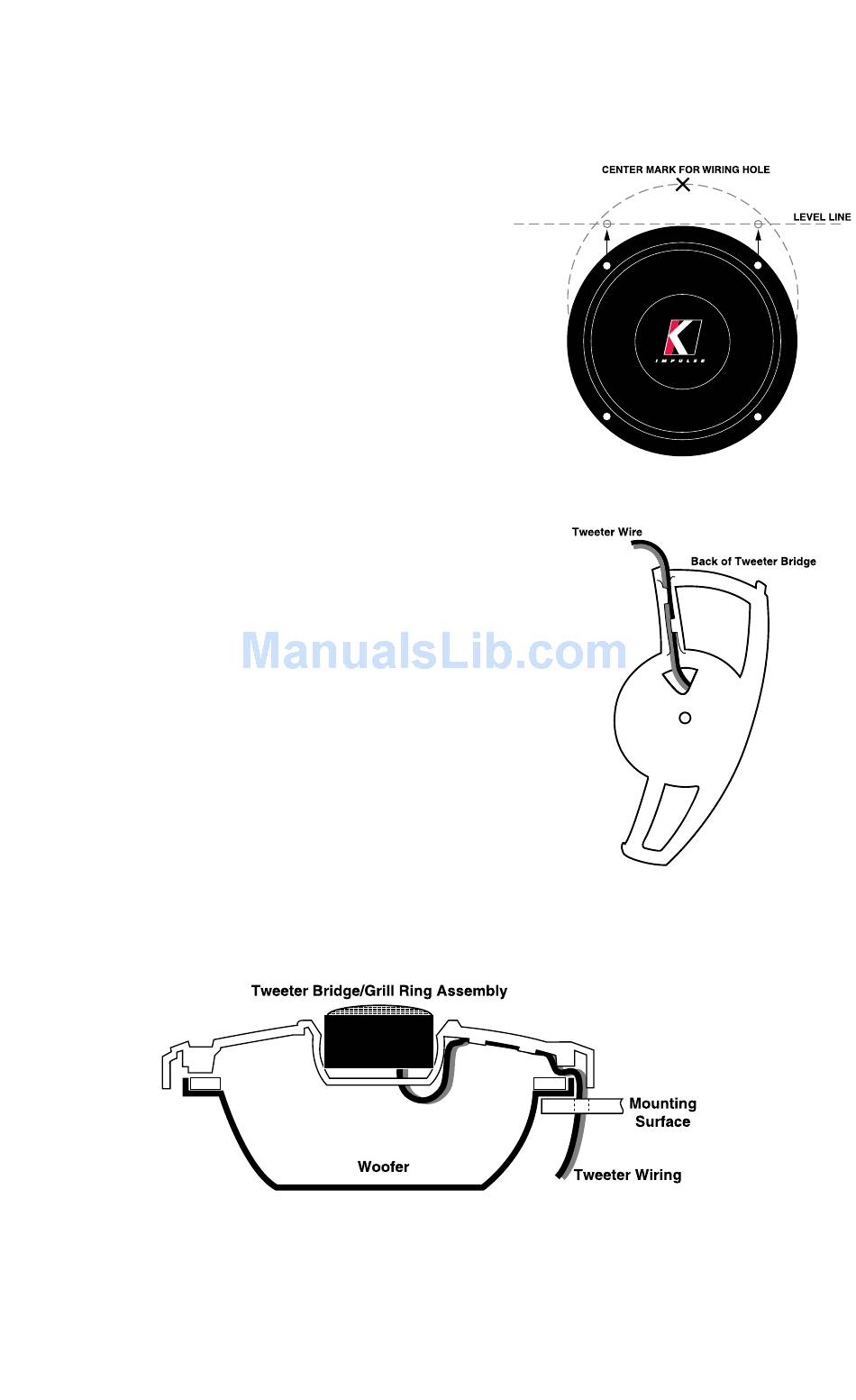

5. Drill a 1/4" hole on the line you just drew,
approximately halfway between the top two
mounting hole locations. Please note that the
position of this hole is critical; too high and it
will be visible once the grill is installed, too low
and the tweeter wire may get pinched. If there
is metal beneath the panel where this hole is to be
drilled, put a 1/4" grommet in the hole from the
back side.
6. Do the preliminary wiring by bringing the con-
nector end of the woofer and tweeter wires within
reach inside the woofer hole.
7. Snap the tweeter into the tweeter bridge,
making sure the K logo is positioned correctly and
that the wires exit through the larger hole in the
tweeter cup.
8. Snap the tweeter bridge assembly into the grill ring.
9. Route the tweeter wires through the groove on the
back of the tweeter bridge as shown in the diagram.
10. Push the tweeter wires through the hole you drilled
in Step 5. Working through the woofer cutout (watch for
sharp edges!), connect the tweeter wires to the wires
attached to the tweeter output on the crossover using the
supplied butt connectors.
11. Connect the woofer wires from the crossover directly
to the driver.
12. After positioning the tweeter bridge/grill ring assem-
bly on the front of the woofer, carefully place the entire
assembly in the mounting hole. Please note: at this time carefully push any extra wire back
into the 1/4" hole, making sure that the wire goes around the speaker without getting
pinched.
13. Secure the entire assembly to the mounting surface using the supplied screws.
14. Carefully push the grill in place.
15. Once your system is operational, you can experiment with swiveling the tweeters for
the best sound quality.
