READ AND UNDERSTAND ALL OF THESE INSTRUCTIONS BEFORE
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
TABLE OF CONTENTS
...............................................................
........................................................................
INSTALLATION!
48KSS269 Installation Guide
...................................................
.................................................... 10
.................................................... 12
2
3
5
7
Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kicker 48KSS269
Summary of Contents for Kicker 48KSS269
-
Page 1: Table Of Contents
Assembling and Mounting the KSC270 ……………………………………………………………... Mounting the KSS69 Woofer …………………………………………… Mounting the KSS69 Woofer Using the Adapter ………………………………………..10 48KSS269-27XO Mid-Range Tweeter Crossover ………………………………………..12 48KSS269-69XO Mid-Range Woofer Crossover READ AND UNDERSTAND ALL OF THESE INSTRUCTIONS BEFORE INSTALLATION! EOP2021-CS9 REV-A.3... -
Page 2: Parts List
30mm LONG SHEET METAL MOUNTING SCREW BUTT CONNECTOR 48KSS269-27XO 2.75” MID-RANGE/TWEETER CROSSOVER 6”x9” KSS69 MID-BASS WOOFER 6”x9” MID-BASS WOOFER BACK GASKET/SPACER 48KSS269-69XO 6”x9” MID-BASS WOOFER CROSSOVER 6”x9” MID-BASS WOOFER MOUNTING TEMPLATE 6”x9” MID-BASS WOOFER MOUNTING ADAPTER FOAM DAMPENER FOR MOUNTING ADAPTER JEEP JL FLANGE... -
Page 3: Assembling And Mounting The Ksc270

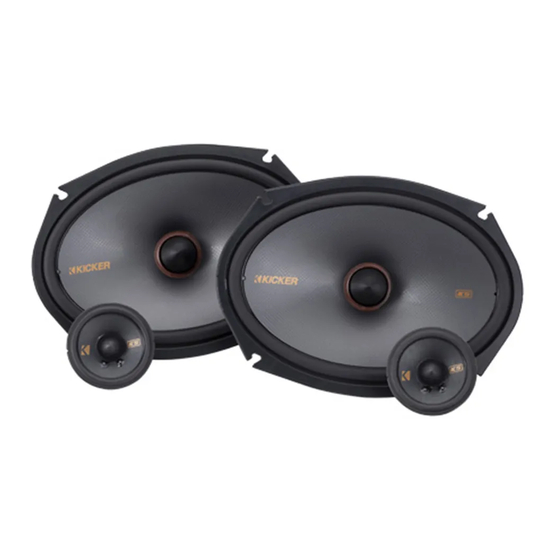

Kicker 48KSS269 system packs pair the Kicker KSC270 mid-range tweeter with a 6”x9” mid-bass woofer for replacement of factory speakers. The KSC270 utilizes a choice of three different mounting flanges allowing for bolt-in replacement for some GM, Chrysler, Subaru, Toyota, and Jeep models. This document demonstrates mounting and wiring of the KSS270 mid- range tweeter and 6”x9”... - Page 4 4. Place retainer on top of speaker and inside the flange. If black adhesive is used, press retainer into adhesive on the flange. 5. Rotate speaker to desired orientation in the flange. 6. Fasten speaker to mounting location using the factory hardware or supplied screws. EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 4 of 13...
-
Page 5: Mounting The Kss69 Woofer
MOUNTING THE KSS69 WOOFER 1. Prepare the speaker harness to accept the Kicker KSS speaker. Review “48KSS269- 69XO MID-RANGE WOOFER CROSSOVERS” section of the document. 2. Use the mounting template to cut and drill holes for custom mounting locations. De cautious not to drill into any components behind the surface. - Page 6 4. Apply the black adhesive into the gap of the bezel where the grille’s tabs insert and engage the bezel. 5. Carefully insert grille into the gap in the bezel. EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 6 of 13...
-
Page 7: Mounting The Kss69 Woofer Using The Adapter
Factory mounting hardware will be reused. 2. Using side cutters remove any tabs that may impede installation of adapter or reassembly of factory components. Cutting locations are molded into the backside of the adapter. EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 7 of 13... - Page 8 BODY PANEL FOAM SPEAKER HOLE BODY PANEL FOAM 4. Fasten the adapter to the mounting panel using the factory hardware. BODY PANEL SPEAKER HOLE FOAM EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 8 of 13...
- Page 9 (windows tracks, lock actuators, etc.) in some applications. If necessary, use the back gasket/spacer. 6. Fasten the mid-bass woofer to the adapter using the supplied screws. BODY PANEL FOAM EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 9 of 13...
-
Page 10: 48Kss269-27Xo Mid-Range Tweeter Crossover
Kicker supplies crossovers for KSC270 to optimize the sound of the speakers. The 48KSS269-27XO crossover is terminated so that it will only connect to the KSC270 speaker. NOTE: The KSS270 crossover is labeled with the part number 48KSS269-27XO. - Page 11 1. Connect the crossover terminals and receptacles to their respective mating connector and wire color on the KSS270 mid-range tweeter. The 48KSS269-27XO crossover terminals are opposites so they only connect to the correct circuit. 2. Slide the clear cover over the terminals to prevent a short circuit.
-
Page 12: 48Kss269-69Xo Mid-Range Woofer Crossover
48KSS269-69XO MID-RANGE WOOFER CROSSOVERS The Kicker 48KSS269 system-pack pairs the KSC270 with a 6”x9” mid-bass woofer. Kicker supplies crossovers with the 48KSS269 system-pack to optimize the sound of the 6”x9” mid-bass woofer when paired with the KSS270 mid-range tweeter. The 48KSS269-69XO crossover is terminated so that it will connect directly to the KSS69 mid-bass woofer. - Page 13 3. Connect the crossover input to the outputs of the head unit or amplifier using the supplied butt connectors. The positive lead is the wire with gray insulation labeled with a “plus” symbol. The negative lead has gray insulation with a black stripe on it. EOP2021-CS9 REV-A.3 48KSS269 Installation Guide Page 13 of 13...
