Johnson Controls T701DFP-1 Owner's Manual

7-day programmable thermostat
Hide thumbs Also See for T701DFP-1:

Advertisement

Table of Contents

See also: Instruction and Installation Manual
Enlarged version
2 or 4 pipe systems
7-Day Programmable
Thermostat
Owner's Manual
model T701DFP-1

Fan Coil

Thermostat
Remote sensor ready
Self-prompting programming
Auto 2-pipe changeover
when used with accessory
changeover sensor
Dry contact equipped
Backlit display
TM
One For All
works with
most all fan coil systems
Electric heat ready
Non-volatile memory
Dual setpoint with
adjustable deadband
Keypad lockout
Configurable display
Display either F or C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T701DFP-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls T701DFP-1

Summary of Contents for Johnson Controls T701DFP-1

  • Page 1: Fan Coil

    T701DFP-1 Fan Coil Thermostat 2 or 4 pipe systems Remote sensor ready 7-Day Programmable Self-prompting programming Thermostat Auto 2-pipe changeover when used with accessory changeover sensor Dry contact equipped Backlit display One For All works with most all fan coil systems...

  • Page 2: Table Of Contents

    WARNING ostat and installing the new thermostat. P/N T701DFP-1 North American Emissions Compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.

  • Page 3: Front Panel

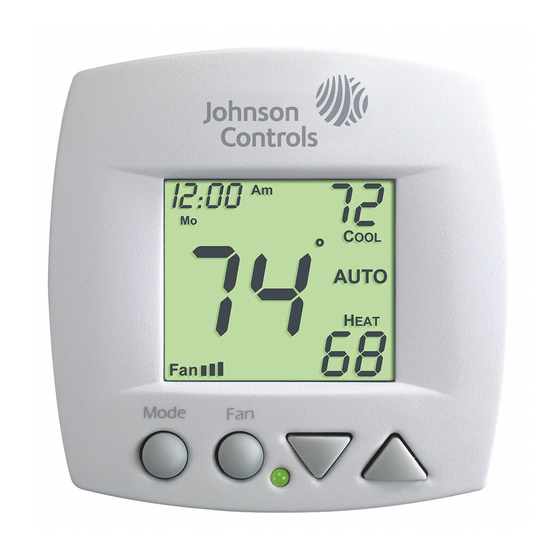

    Front Panel I2:00 AUTO Mode Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan/Override Button Heat or Cool Indicator Heat = Red, Cool = Green Page 2...

  • Page 4: Display

    Display UTSIDE Mode Indicators - Page 7-10 Selects the operational mode of the equipment. HEAT - Indicates the heating mode. COOL - Indicates the cooling mode. AUTO - Indicates the system will automatically changeover between heat and cool modes as the temperature varies. PROGRAM ON - Indicates the time period program is enabled to run.
  • Page 5 Display I2:00 Start Stop SuMoTuWeThFrSa Setup unoccupied Locked Override AUTO UTSIDE Override icon - Pages 12 & 21 Indicates the program is currently being overridden for up to six hours. Occupied & Unoccupied icons - Pages 13-16 Indicates the program number: Occupied 1,2,3 or Unoccupied.
  • Page 6 Display I2:00 Start Stop SuMoTuWeThFrSa Setup unoccupied Locked Override AUTO UTSIDE Start & Stop icons - Pages 14-16 Appear when programming occupied time periods. Locked icon - Page 30 Indicates keypad has been locked. Outside icon - Pages 21 & 31 Indicates the temperature displayed is from the optional outside sensor.

  • Page 7: Quick Start Set The Clock And Go

    Quick Start Set the Clock and Go Press the MODE and FAN buttons MODE at the same time for two seconds to enter Setup screens. During Setup and Programming: Pressing the UP or Setting the Clock DOWN button will Tip: To change modify the flashing I2:00 hours quickly,...

  • Page 8: Selecting The Heat Or Cool Mode

    Selecting the Heat or Cool Mode 4-Pipe Operation Select Mode by Pressing the MODE Button I2:00 Heating Only The HEAT setting indicates the temperature that the room has to fall to before the Press heating source will turn on to heat the room. MODE I2:00 Cooling Only...
  • Page 9 Selecting the Heat or Cool Mode 2-Pipe Operation Heat Only Step #6 = 1 in the Advanced Setup section, page 19. I2:00 Heating Only The HEAT setting indicates the temperature that the room has to fall to before the heating source will turn on to heat the room.
  • Page 10 Selecting the Heat or Cool Mode 2-Pipe Operation Cool Only Step #6 = 2 in the Advanced Setup section, page 19. I2:00 Cooling Only The COOL setting indicates the temperature that the room has to rise to before the cooling source will turn on to cool the room.
  • Page 11 Selecting the Heat or Cool Mode 2-Pipe Operation Heating and/or Cooling Step #6 = 3 in Advanced Setup (page 19), and a changeover sensor is used. Step #6 = 4 or 5 in Advanced Setup (page 19). Operation is the same as a 4-pipe system (page 7). I2:00 HEAT indicates the temperature that the room has to fall to before...

  • Page 12: Basic Operation

    Basic Operation Selecting Your Desired Temperature (adjusting the setpoints) AUTO OR PROGRAM MODE Pressing the UP or DOWN button in Auto or Program mode will adjust both the heat and cool set temperatures simultaneously. Adjust the desired I2:00 set temperature with the AUTO buttons.

  • Page 13: Overriding The Daily Schedule

    Basic Operation Overriding the Daily Schedule Pressing and holding the FAN button for 5 seconds may be used to interrupt the normal time schedule programming of the thermostat. The override feature may only be used when the thermostat is running the time schedule, in Program On mode.
  • Page 14 Programming Occupied & Unoccupied Periods Press the MODE button. While holding MODE, press the UP button for two MODE seconds to enter time period programming. Select the maximum # of occupied periods to be occupied used on any one day. Typically, most installations use only Occupied 1.
  • Page 15 Programming Occupied & Unoccupied Periods Adjust the heating set- unoccupied point for Unoccupied periods. (OF, 35 - 99 ) Press MODE Select day of the occupied week for Occupied 1. (Mo - Su) Press MODE 7:00 Start occupied Adjust the start time for Occupied 1.
  • Page 16 Programming Occupied & Unoccupied Periods The copy command becomes available after the maximum # of occupied periods are programmed in a day. This example uses 1 as the maximum occupied periods ever programmed in one day. Select Yes or No to copy t h e p r e v i o u s d a y ’s program to this day.
  • Page 17 Programming Occupied & Unoccupied Periods 5:00 Stop occupied Adjust the stop time for occupied 1. Select Occupied 1 to occupied run on this day (On), or not to run this day (Off). Press MODE Select Yes or No to copy the previous day’s program to this day.
  • Page 18 Programming Occupied & Unoccupied Periods PROGRAMMING NOTES You will be prompted to enter both heat and cool setpoints even if the thermostat is configured for heat only, or cool only. If only 1 Occupied period is selected, the Occupied 2 & 3 steps will be skipped.

  • Page 19: Advanced Setup

    Advanced Setup NOTE: Each step Press the MODE and MODE # is located at the FAN buttons at the top right corner of same time for 10 the display for easy seconds to enter reference. A d v a n c e d S e t u p screens.

  • Page 20: Display

    Advanced Setup Select Display operation: Setup 1 = Single Setpoint 2 = Dual Setpoint See Page 32 Note: When Single Setpoint is selected, the heating or cooling setpoint will always be displayed. To display the room temperature, press and hold the MODE Press button for two seconds.
  • Page 21 Advanced Setup Select operation when fan is in the Auto mode: On = continuous low speed fan AUTO Off = only energize during a heating or cooling cycle. Press MODE See Page 28, Note #2 Adjust the deadband Setup for the 1st stage. (1 - 6 ) Press See Page 25...
  • Page 22 Advanced Setup Setup Select thermostat operation in degrees Fahrenheit or Celsius. Press MODE Sensor Reading Setup Select sensor operation: On = read only Duct sensor UTSIDE Off = control to Duct Press sensor MODE 2 00 Adjust the amount of Setup time override will be a c t i v e d u r i n g t h e...
  • Page 23 Advanced Setup Occupied Setup Select Dry Contact operation: occupied Occupied = the thermo- stat will enter the Occup- ied mode when the Dry Contact Contact is closed. Unocc- upied Unoccupied = the thermostat will enter the Unoccupied mode when the Dry Contact is closed. Step #16 only appears if step #15 = Unoccupied.
  • Page 24 Advanced Setup Advanced Setup Table Step Factory Description Range Default Time of Day 24 hour 12:00 am Day of the Week Mo - Su Display Blanking On / Off Single or Dual Setpoint 1 / 2 2- or 4-Pipe System 2 / 4 2-Pipe System Operation 1 - 5...

  • Page 25: I2:00

    About Advanced Features & Operation CALIBRATION - Under normal circumstances it will not be necessary to adjust the calibration of the temperature sensor. If calibration is required, please contact a trained HVAC technician to correctly perform the following procedure. I2:00 MODE Place the thermostat in the OFF mode.
  • Page 26 About Advanced Features & Operation DEADBAND OPERATION - Controls one Heat and one Cool stage with a three speed fan (see below). The low speed fan for heat or cool is turned on when: The temperature spread from the setpoint is equal to or greater than: the setpoint plus the 1st stage dead- band (step #8, page 20).
  • Page 27 About Advanced Features & Operation DRY CONTACT SWITCH - This feature allows an external device such as a Central Time Clock, Occu- pancy Sensor, or a Telephone activated device to force one or more thermostats into Occupied 1 or Unoccup- ied (steps #14 and 15, page 21-22).
  • Page 28 About Advanced Features & Operation FACTORY DEFAULTS - If, for any reason, you desire to return all the stored settings back to the factory default settings, follow the instructions below. WARNING: This will reset all Time Period and Ad- vanced Programming to the default settings. Any information entered prior to this reset will be permanently lost.
  • Page 29 About Advanced Features & Operation FAN OPERATION - Fan operation is available in four different modes: Fan: When only the fan icon is displayed, this indicates that the fan is in the Auto mode, will only energize during a heating or cooling cycle, and will modulate fan speeds based on temperature demand (see page 25).
  • Page 30 About Advanced Features & Operation ENERGY SAVING SMART FAN - This feature auto- matically de-energizes the fan during an Unoccupied time period, except when necessary to heat or cool (see page 28). I2:00 unoccupied Note: The fan will not de-energize during an Un- occupied time period if it has been programmed for continuous operation (step #7, page 20).
  • Page 31 About Advanced Features & Operation KEYPAD LOCKOUT - To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold the MODE button. While holding the MODE button, press the UP and DOWN buttons together.
  • Page 32 About Advanced Features & Operation OUTSIDE SENSOR - To view an Outside Sensor (step #12, page 21), enter the Advanced Setup by pressing and holding the MODE button. While holding MODE, press the FAN button for 5 seconds to enter Setup screens. Advance to setup step #12 by repeatedly pressing the MODE button.
  • Page 33 About Advanced Features & Operation SINGLE SETPOINT BEHAVIOR - When configured for Single Setpoint operation (step #4, page 19), the degree icon will blink when the large number is display- ing room temperature and will remain solid when dis- playing the heating or cooling setpoint. In the Auto and Program On modes the deadband is enforced both above and below the setpoint.
  • Page 34 P/N 88-824 Rev. 1H P.O. Box 423 • Milwaukee, WI 53201-0423 • 414.524.7349 [phone] • 414.524.5043 [fax] • www.jci.com ©2010 Johnson Controls Inc (JCI).
