T7200 LCD Digital Thermostat
Installation Guide
PUBL-8902ZH Rev.–
Issue Date: 09 2019
°C
• Ambient
• Ambiante
• Umgebung
• Ambiente
• Ambiente
•
• Otoczenia
•
• Omgivelse
•
工作环境
MAX
MIN
MAX
MIN
40
45 °C
-0 °C
60 °C
-10 °C
104
113 °F
-32 °F
140 °F
-14 °F
MAX 90% RH
MIN 10% RH
*PUBL8902ZH-*
ON / OFF
AUTO
‚„
1
> 50 cm
> 150 cm
M
o
°C/
F
ƒ
Timer
ON
OFF
Symbol
‚„
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls T7200
Summary of Contents for Johnson Controls T7200

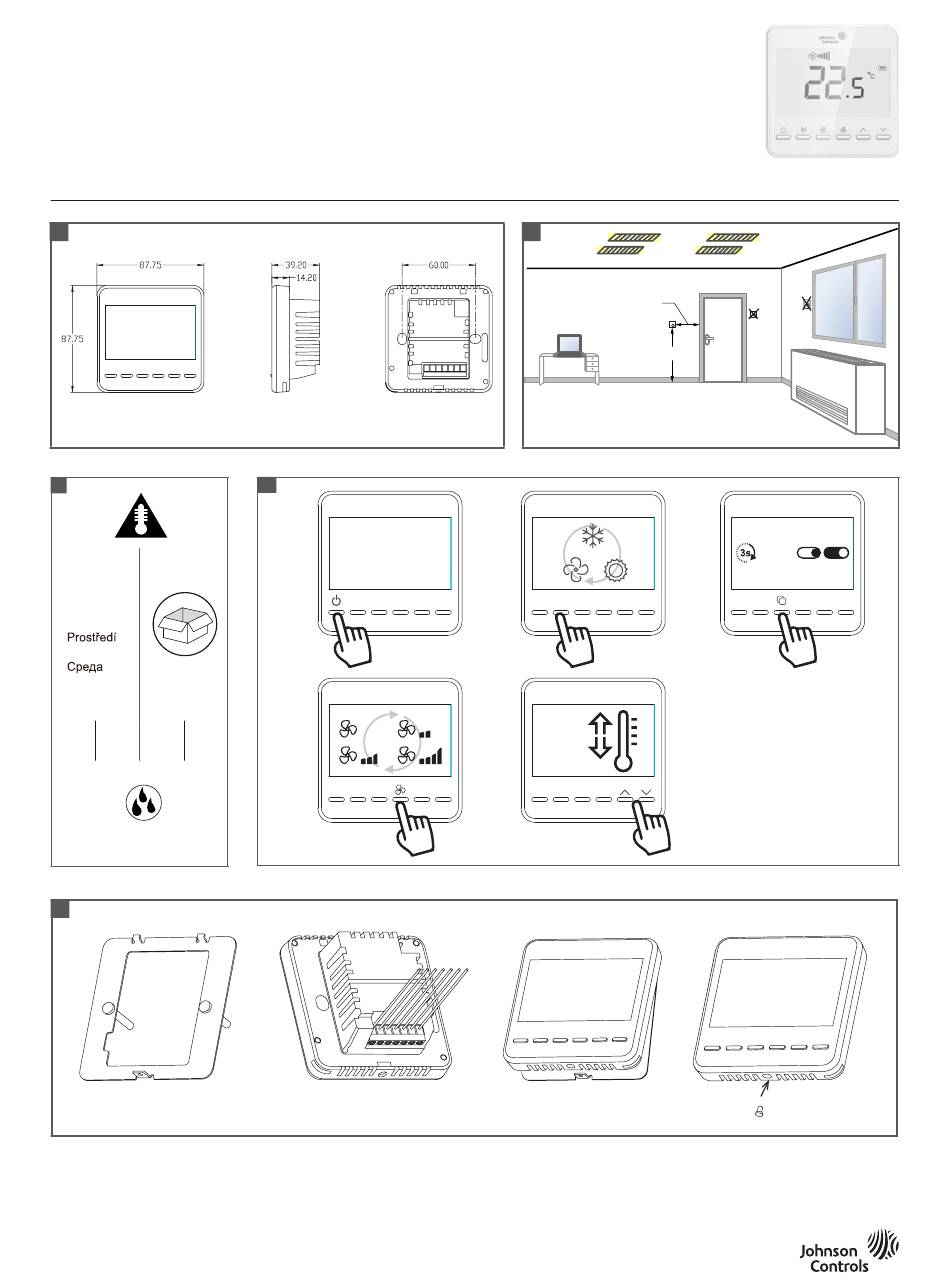

- Page 1 *PUBL8902ZH-* T7200 LCD Digital Thermostat Installation Guide PUBL-8902ZH Rev.– Issue Date: 09 2019 > 50 cm > 150 cm °C Timer ON / OFF Symbol • Ambient • Ambiante • Umgebung • Ambiente • Ambiente • • Otoczenia • • Omgivelse • ...
-
