10.0 - Using the CR2600

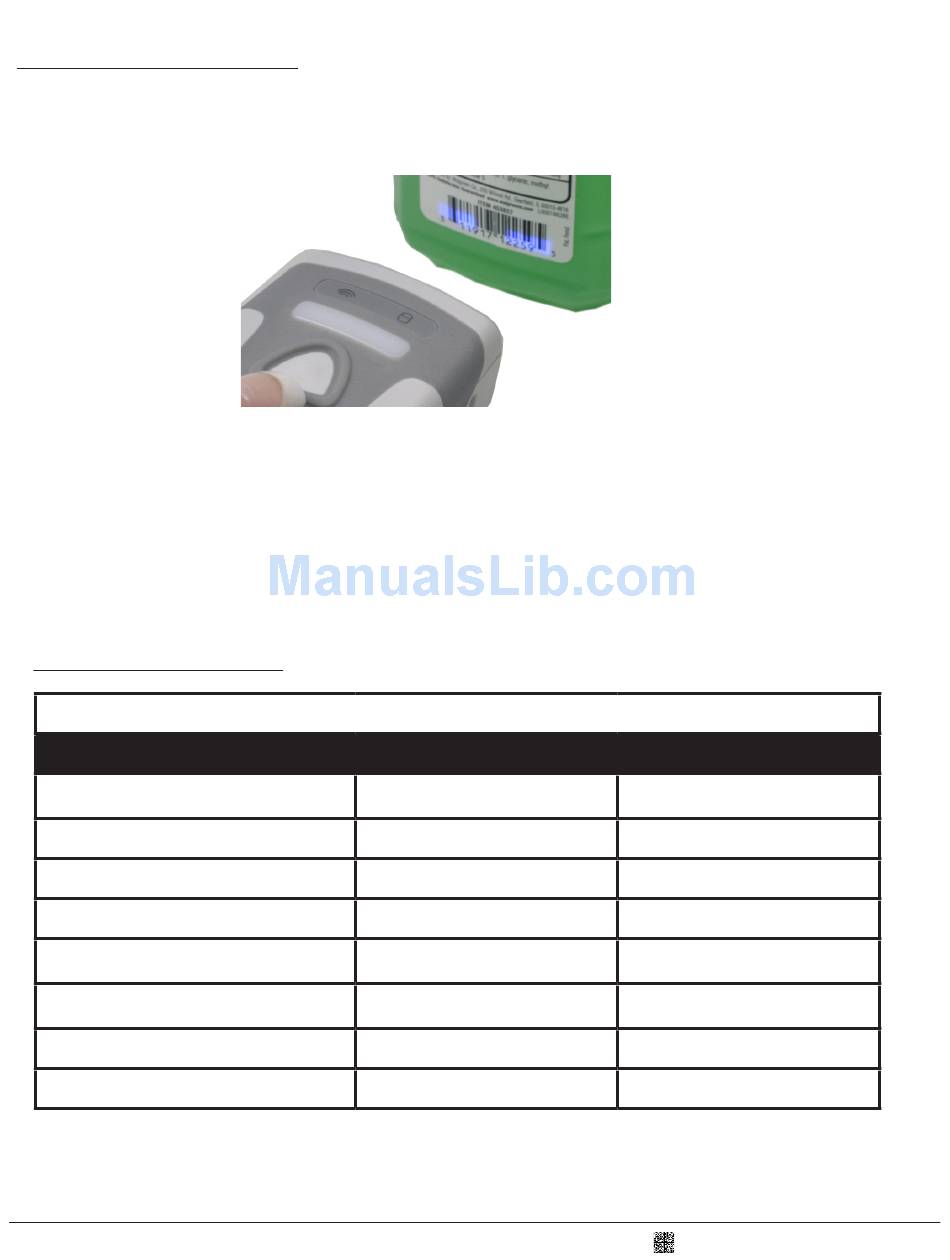

Press and hold one of the buttons or trigger on the CR2600, the two blue bars emitting from the reader are used for targeting.
Center the blue bars in the middle of a bar code. The optimal reading distance from reader to bar code is approximately 4.0" (10
cm). Once the reader is at the optimal distance, the reader will automatically read the bar code.
The CR2600 will beep, vibrate and the good read indicator will flash green to indicate a 'good read' has occurred.

11.0 - Reading Ranges

Test Code
3 mil Code 39
7.5 mil Code 39
13 mil UPC
4.2 mil Data Matrix
5 mil Data Matrix
6.3 mil Data Matrix
10 mil Data Matrix
20.8 mil Data Matrix
Note: working ranges are a combination of both the wide and high density fields. All samples were high quality codes
and were read along a physical center line at a 10° angle. Default AGC settings were used. Accuracy= +/- 10%.
CR2600 Performance
Min Inches (mm)
3.9" (100 mm)
2.2" (55 mm)
2.0" (50 mm)
3.7" (95 mm)
3.7" (95 mm)
3.1" (80 mm)
1.6" (40 mm)
1.6" (40 mm)
Max Inches (mm)
5.0" (125 mm)
8.0" (205 mm)
10.8" (275 mm)
4.7" (120 mm)
5.5" (140 mm)
6.3" (160 mm)
7.9" (200 mm)
12.2" (310 mm)
