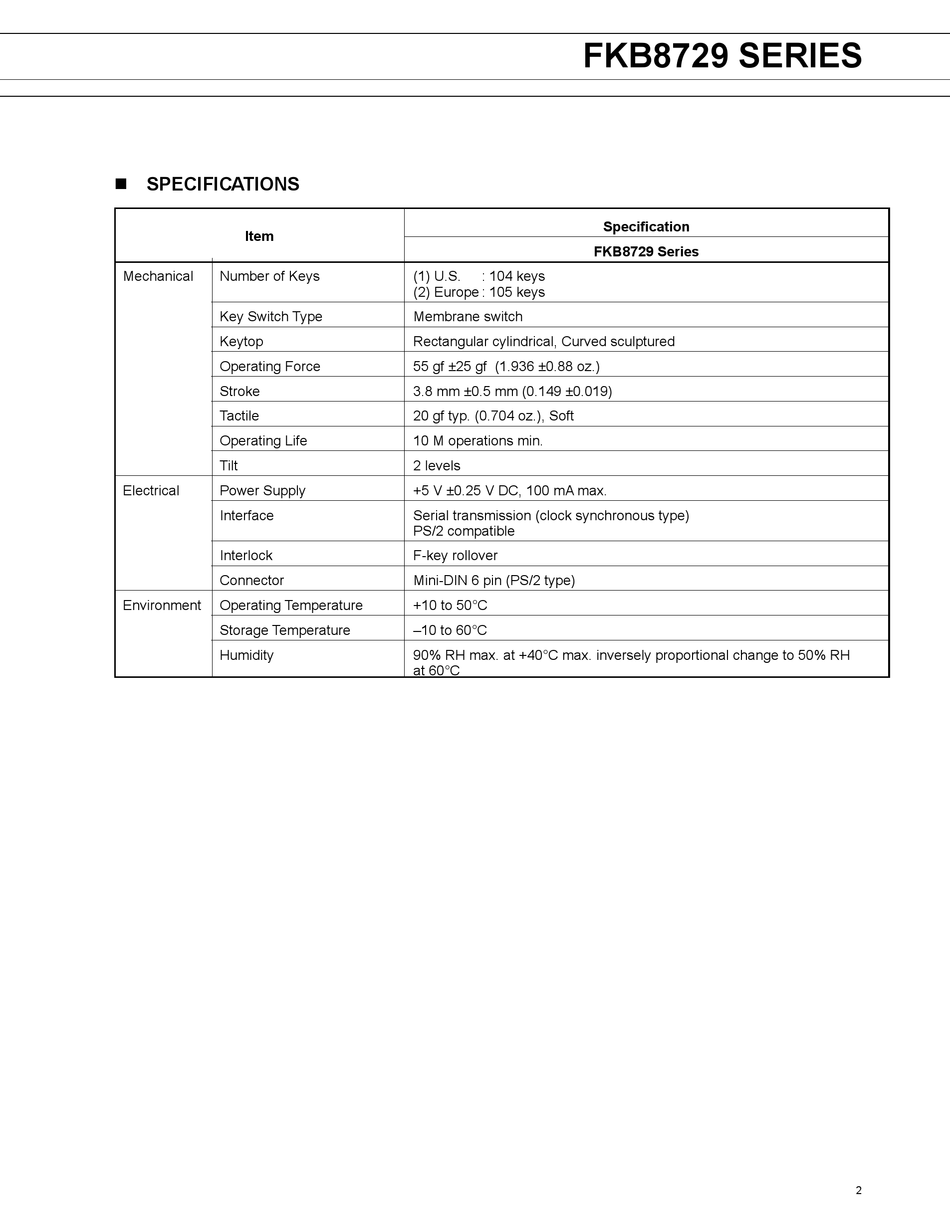

n SPECIFICATIONS
Item
Mechanical
Number of Keys
Key Switch Type
Keytop
Operating Force
Stroke
Tactile
Operating Life
Tilt
Electrical
Power Supply
Interface
Interlock
Connector
Environment
Operating Temperature
Storage Temperature
Humidity
FKB8729 SERIES
(1) U.S.
: 104 keys
(2) Europe : 105 keys
Membrane switch
Rectangular cylindrical, Curved sculptured
55 gf ±25 gf (1.936 ±0.88 oz.)
3.8 mm ±0.5 mm (0.149 ±0.019)
20 gf typ. (0.704 oz.), Soft
10 M operations min.
2 levels
+5 V ±0.25 V DC, 100 mA max.
Serial transmission (clock synchronous type)
PS/2 compatible
F-key rollover
Mini-DIN 6 pin (PS/2 type)
+10 to 50°C
–10 to 60°C
90% RH max. at +40°C max. inversely proportional change to 50% RH
at 60°C
Specification
FKB8729 Series
2
