Connector Pin Assignment - Fujitsu Fkb8729 Series Specifications

Standard 104/105-key keyboard

Table of Contents

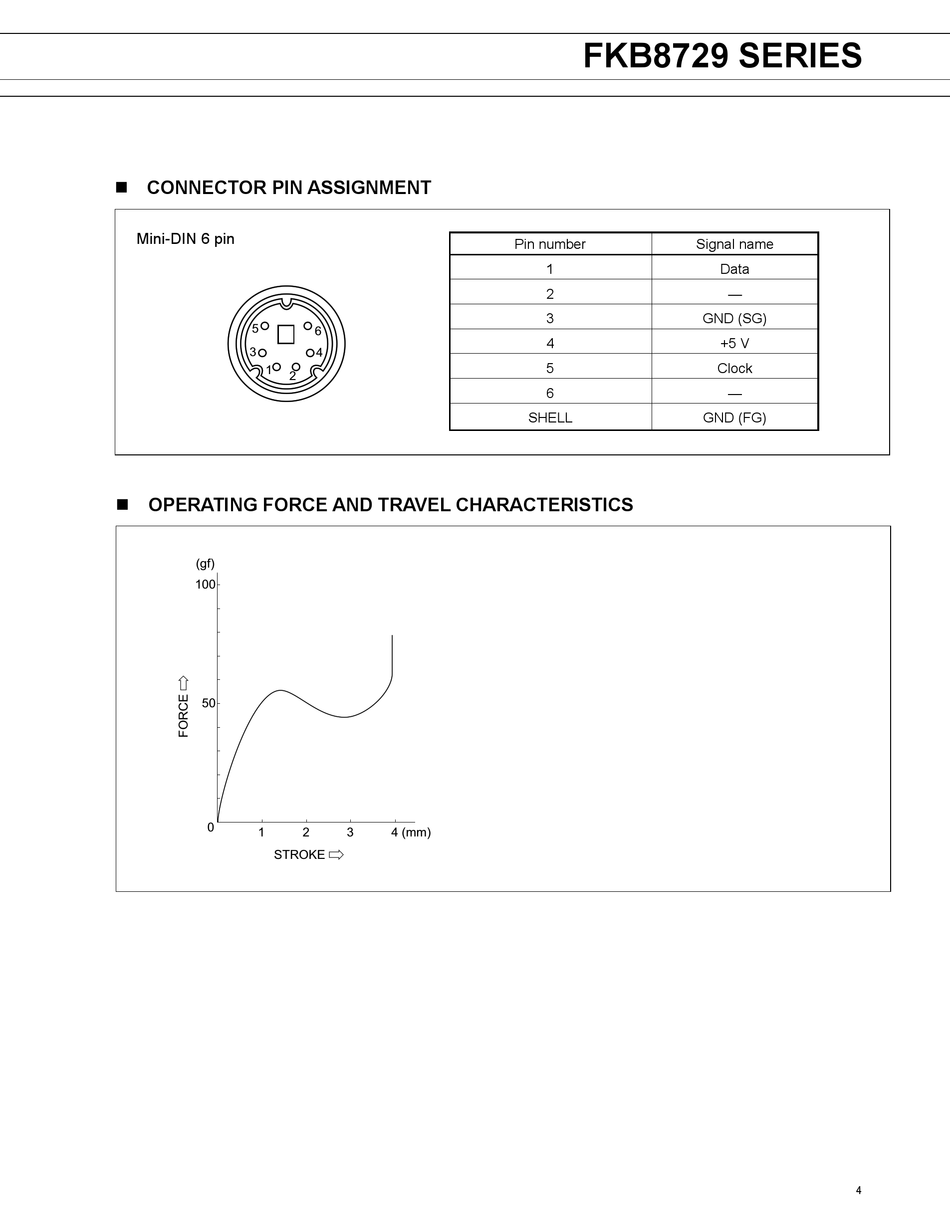

n CONNECTOR PIN ASSIGNMENT

Mini-DIN 6 pin

5

3

1

2

n OPERATING FORCE AND TRAVEL CHARACTERISTICS

(gf)

100

50

0

1

STROKE

6

4

2

3

4 (mm)

FKB8729 SERIES

Pin number

1

2

3

4

5

6

SHELL

Signal name

Data

—

GND (SG)

+5 V

Clock

—

GND (FG)
