I

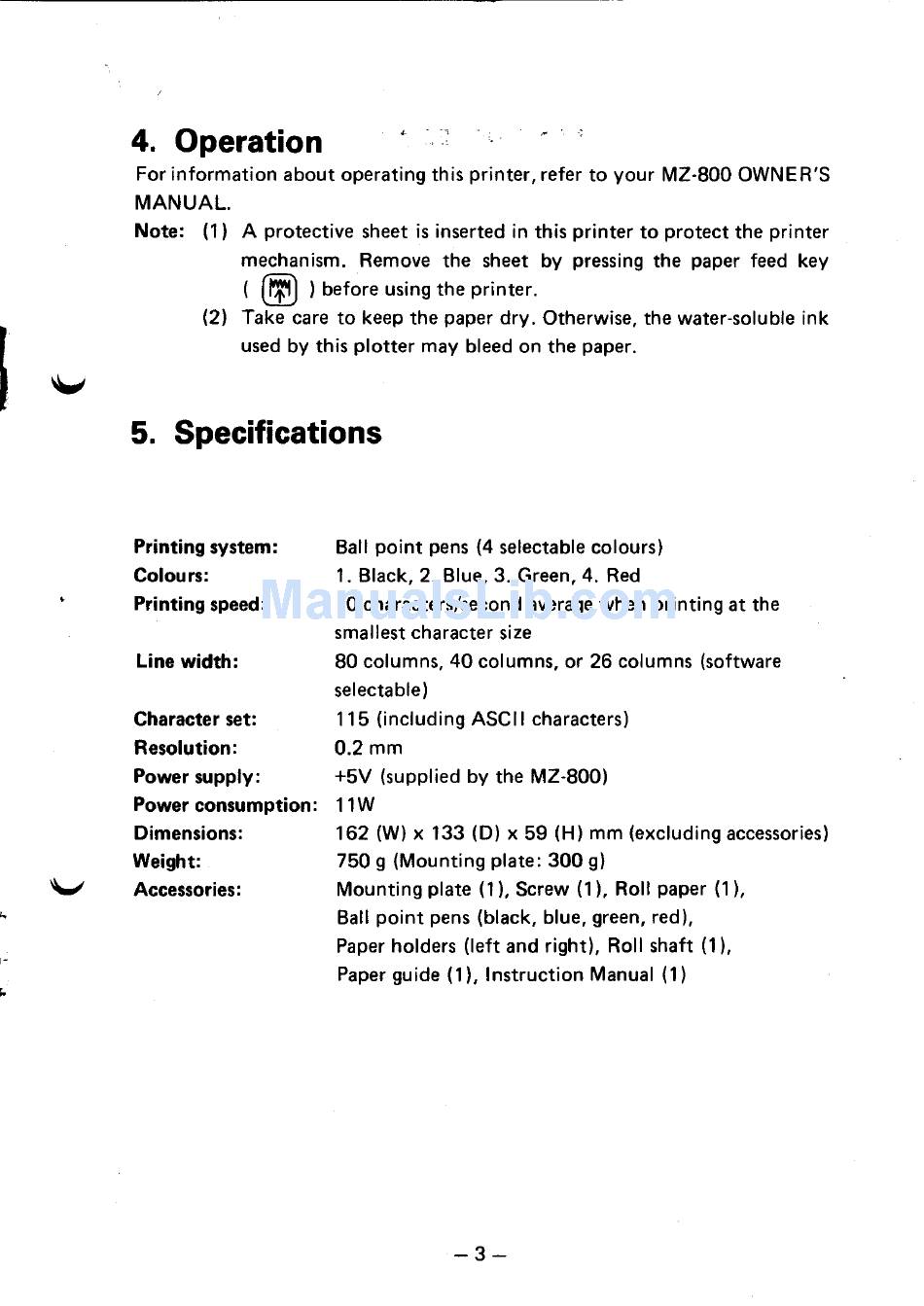

4. Operation
For information about operating this printer, refer to your MZ-800 OWNER'S
MANUAL.
Note: (1) A protective sheet is inserted in this printer to protect the printer
mechanism. Remove the sheet by pressing the paper feed key
(
~
) before using the printer.
(2) Take care to keep the paper dry. Otherwise, the water-soluble ink
used by this plotter may bleed on the paper.
5. Specifications
Printing system:
Colours:
Printing speed:
Line width:
Character set:
Resolution:
Power supply:
Power consumption:
Dimensions:
Weight:
Accessories:
Ball point pens (4 selectable colours)
1. Black, 2. Blue, 3. Green, 4. Red
10 characters/second average when printing at the
smallest character size
80 columns, 40 columns, or 26 columns (software
selectable)
115 (including ASCII characters)
0.2mm
+5V (supplied by the MZ-800)
11W
162 (W) x 133 (D) x 59 (H) mm (excluding accessories)
750 g (Mounting plate: 300 g)
Mounting plate (1), Screw (1), Roll paper (1 ),
Ball point pens (black, blue, green, red),
Paper holders (left and right), Roll shaft (1),
Paper guide (1), Instruction Manual (1)
-3-
