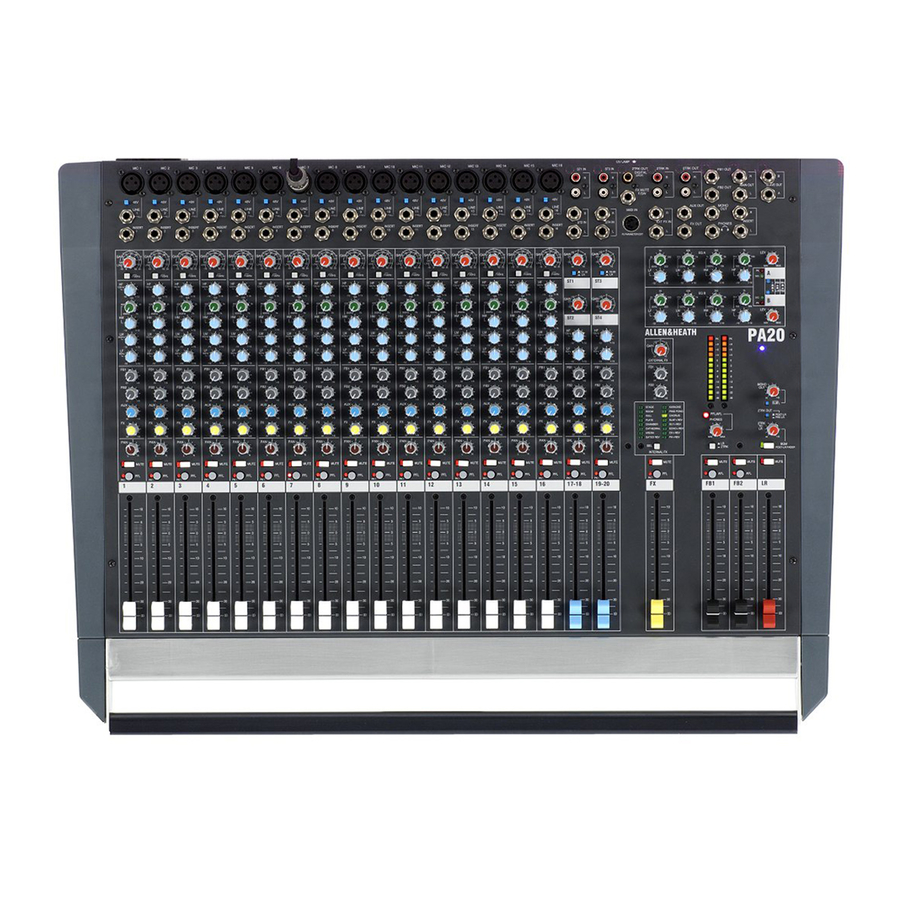

PA Series
1kW Powered & Unpowered Audio Consoles

SERVICE INFORMATION

Publication AP5288

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALLEN & HEATH PA Series

Summary of Contents for ALLEN & HEATH PA Series

  • Page 1: Service Information

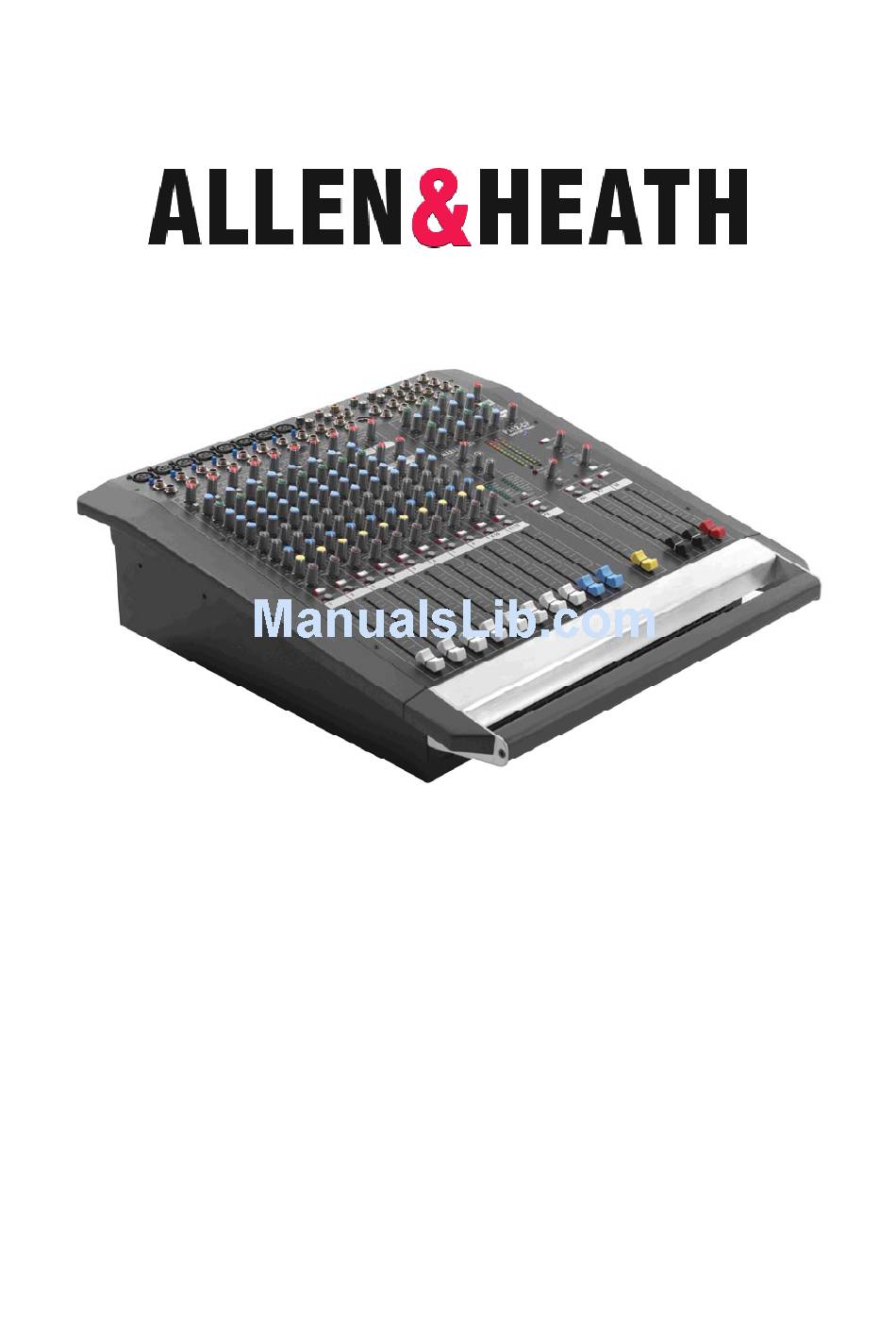

    PA Series 1kW Powered & Unpowered Audio Consoles SERVICE INFORMATION Publication AP5288...

  • Page 2: Pa_Series_Ap5288_6.Doc

    Introduction This publication provides technical information on servicing the Allen & Heath PA Series consoles. Included are system block diagram, internal layout drawing and circuit schematics with board layouts and spare parts lists. Whilst we believe this information to be reliable we do not assume responsibility for inaccuracies.
  • Page 3 Servicing Precautions – General Notes Service personnel: Service work should be carried out by technically qualified service personnel only. Mains power is dangerous and can kill. Do not attempt to work on a linear or switched mode power supply if you are not suitably qualified to do so. Do not attempt to repair surface mount circuit assemblies unless you are suitably qualified and have the necessary facilities to do so.
  • Page 4 PA Series Stereo Input PCB ..pa_series_003-035_stereoinput_2.1.pdf PA Series Aux / FX PCB......pa_series_003-036_auxfx_2.1.pdf PA Series Sub 1 PCB....... pa_series_003-037_sub1_1.1.pdf PA Series FB1 / Phones PCB ..pa_series_003-038_fb1phones_2.1.pdf PA Series FB2 PCB ........pa_series_003-039_fb2_1.1.pdf PA-CP LR Master PCB ......... pa-cp_003-040_lrmaster_3.pdf PA-CP Distribution PCB ......pa-cp_003-041_distribution_2.pdf PA Series Effects PCB ......
  • Page 5 PA Series – Historical Change Log The following list identifies historical changes to the PA Series. The effective dates, serial numbers and related change note documentation are included for reference to help identify the correct issue circuit boards and components. Whilst we believe this information to be reliable we do not assume responsibility for inaccuracies.
  • Page 6 PK ! PK ! ROUND GREY PUSH BUTTON AJ2864 LATCHING SWITCH AL0162 M3x5 SCREW AB4661 PA series products up to serial number 019388 have x1 stereo MASTER LR FADER PA series products from serial number 019388 have x2 mono MASTER L & R FADERS...
  • Page 7 SLIDE SWITCH AL5071 M4x8 SCREW AB0332 SPEAKON CONNECTOR AL8126 M3x10 SCREW AB0093 15DIA 9MM HIGH FAST FOOT AK5069 PA series products up to serial number 019388 have x1 stereo 10A FUSE AL3455 MASTER LR FADER PA series products from serial number 019388 have x2 mono MASTER L &...
  • Page 8 FB2 FADER PA12-CP Pack Assembly..003-030 FB1 PHONES FADER STEREO AUX FX PA12-CP Main Assembly ..003-031 INPUT PA series products from FADER FADERS MONO INPUT FADERS serial number 019388 PA12-CP Top Panel Assy..003-032 have x2 mono MASTER L &...
  • Page 9 003-070 ..........PA28/100 FB2 FADER ..........PA28/120 FB1 PHONES FADER ..........PA28/220 STEREO AUX FX INPUT PA series products from FADER FADERS MONO INPUT FADERS ..........PA28/240 serial number 019388 have x2 mono MASTER PA12-CP Rack Ear Assy..003-071 L & R FADERS PA12 Top Panel Assy....003-095...
  • Page 10 Products from serial number 019388 PA-CP SERIES BLOCK DIAGRAM METERS PEAK MONO CHANNEL GAIN PFL/AFL +48V PHONES LR / 2TRK MUTE MONITOR 4 BAND EQUALISER FADER HEADPHONES MIC IN LINE IN INSERT 100Hz DIR OUT SPDIF DIGITAL 2TRK 2TRK OUT 2TRK IN ANALOG POST...
  • Page 11 Products from serial number 019388 PA SERIES BLOCK DIAGRAM METERS PEAK MONO CHANNEL GAIN PFL/AFL +48V PHONES LR / 2TRK MUTE MONITOR 4 BAND EQUALISER FADER HEADPHONES MIC IN LINE IN INSERT 100Hz DIR OUT SPDIF DIGITAL 2TRK 2TRK OUT...
  • Page 12 VR6B VR7B VR8B VR9B VR10B VR11C VR2B ISSUE DATE POT14 5KRD X2 PA SERIES MONO INPUT POT11 20KB C/D 200KC X2 D/G POT11 20KB C/D POT11 20KB C/D POT11 20KB C/D POT11 20KK POT11 20KK POT11 20KK POT11 20KK POT14 10KAC C/D...
  • Page 13 003-034...
  • Page 14 Note: Description includes Allen and Heath part number in brackets PA-CP Mono Input issue 1 Designator Description Designator Description CAPACITOR ELECTROLYTIC 47uF 63V (AF0217) RESISTOR METAL FILM SMD0805 100K 1% (AC2843) CAPACITOR ELECTROLYTIC 47uF 63V (AF0217) RESISTOR SMD 120K 1% 0805 (AC5109) CAPACITOR CERAMIC SMD0805 1N5 (AF2991) RESISTOR SMD MELF 1K2 1% 0805 METAL (AC5039) CAPACITOR CERAMIC SMD0805 2N2 (AF3548)
  • Page 15 EARTH SCREW TERMINAL NARROW -17VA FIDUCIAL FIDUCIAL ALLEN&HEATH ISSUE DATE BRKT BRKT BRKT BRKT BRKT BRKT BRKT BRKT BRKT PA SERIES STEREO INPUT CCT TITLE: 23-07-02 Kernick Industrial Estate, 25-09-02 VR1C VR2C VR3C VR4C VR5B VR9C Penryn, Cornwall, VR6B VR7B VR8B PAGE:...
  • Page 16 003-035...
  • Page 17 Note: Description includes Allen and Heath part number in brackets PA-CP Stereo Input issue 2 Designator Description Designator Description CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) RESISTOR METAL FILM SMD0805 3K3 1% (AC3061) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) RESISTOR METAL FILM SMD0805 1K0 1% (AC0369) CAPACITOR CERAMIC SMD0805 2N7 (AF2993) RESISTOR METAL FILM SMD0805 1K0 1% (AC0369) CAPACITOR SMD 10N CERAMIC 0805 (AF2849)
  • Page 18 10R PF RAD ALLEN&HEATH VR2B VR4B VR1B VR3B VR5C ISSUE DATE POT11 20KB C/D POT11 20KB C/D PA SERIES AUX-FX PCB POT11 200KC X2 D/G POT11 200KC X2 D/G POT14 20KK X2 TITLE: 25-02-02 BRKT BRKT BRKT BRKT BRKT Kernick Industrial Estate,...
  • Page 19 003-036...
  • Page 20 Note: Description includes Allen and Heath part number in brackets PA-CP Aux FX issue 2 Designator Description Designator Description CAPACITOR ELECTROLYTIC 100uF 6.3V (AF2984) RESISTOR METAL FILM SMD0805 470K 2% (AC2844) CAPACITOR ELECTROLYTIC 100uF 6.3V (AF2984) RESISTOR CARBON SMD0805 15K 5% (AC3486) CAPACITOR CERAMIC SMD0805 22P (AF2992) RESISTOR CARBON SMD0805 15K 5% (AC3486) CAPACITOR CERAMIC SMD0805 22P (AF2992)
  • Page 21 FIDUCIAL SGNDS ALLEN&HEATH VR2B VR4B VR1B VR3B ISSUE DATE POT11 20KB C/D POT11 20KB C/D PA SERIES SUB 1 PCB POT11 200KC X2 D/G POT11 200KC X2 D/G TITLE: 25-02-02 BRKT BRKT BRKT BRKT Kernick Industrial Estate, 22-04-02 Penryn, Cornwall,...
  • Page 22 003-037...
  • Page 23 Note: Description includes Allen and Heath part number in brackets PA-CP Sub 1 issue 1 Designator Description CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR CERAMIC SMD0805 22P (AF2992) CAPACITOR CERAMIC SMD0805 22P (AF2992)
  • Page 24 FIDUCIAL SGNDS ALLEN&HEATH VR2B VR4B VR1B VR3B ISSUE DATE POT11 20KB C/D POT11 20KB C/D PA SERIES SUB 1 PCB POT11 200KC X2 D/G POT11 200KC X2 D/G TITLE: 25-02-02 BRKT BRKT BRKT BRKT Kernick Industrial Estate, 22-04-02 Penryn, Cornwall,...
  • Page 25 003-037...
  • Page 26 33R 1% 0805 NE5532 SMD -17VA ALLEN&HEATH ISSUE DATE VR2B VR4B VR1B VR3B VR5C PA Series Foldback/Phones pcb POT11 20KB C/D POT11 20KB C/D POT11 200KC X2 D/G POT11 200KC X2 D/G POT14 20KK X2 TITLE: ORIGIN BRKT BRKT BRKT...
  • Page 27 SCREW M3X6 PAN TORX BK SCREW3 -17VA SCREW M3X6 PAN TORX BK NF 0805 0R0 0805 SCREW4 SCREW M3X6 PAN TORX BK ALLEN&HEATH ISSUE DATE PA Series Foldback/Phones pcb TITLE: ORIGIN Kernick Industrial Estate, 7/3/02 Penryn, Cornwall, PAGE: 29/4/02 England. TR10 9LU 01-05-02 24-07-02...
  • Page 28 003-038...
  • Page 29 Note: Description includes Allen and Heath part number in brackets PA-CP FB1 Phones issue 2 Designator Description Designator Description CAPACITOR CERAMIC SMD0805 22P (AF2992) RESISTOR METAL FILM SMD0805 10K 1% (AC2841) CAPACITOR SMD 1N5 CERAMIC SMD (AF2991) RESISTOR SMD 22K 1% 0805 (AC2842) CAPACITOR SMD 1N5 CERAMIC SMD (AF2991) RESISTOR SMD 22K 1% 0805 (AC2842) CAPACITOR CERAMIC SMD0805 22P (AF2992)
  • Page 30 33R 1% 0805 NE5532 SMD -17VA ALLEN&HEATH ISSUE DATE VR2B VR4B VR1B VR3B VR5C PA Series Foldback/Phones pcb POT11 20KB C/D POT11 20KB C/D POT11 200KC X2 D/G POT11 200KC X2 D/G POT14 20KK X2 TITLE: ORIGIN BRKT BRKT BRKT...
  • Page 31 SCREW M3X6 PAN TORX BK SCREW3 -17VA SCREW M3X6 PAN TORX BK NF 0805 0R0 0805 SCREW4 SCREW M3X6 PAN TORX BK ALLEN&HEATH ISSUE DATE PA Series Foldback/Phones pcb TITLE: ORIGIN Kernick Industrial Estate, 7/3/02 Penryn, Cornwall, PAGE: 29/4/02 England. TR10 9LU 01-05-02 24-07-02...
  • Page 32 003-038...
  • Page 33 SW2PCOL (SPUN) -17VA 10R PF RAD +17VA LED T1 3MM RED ALLEN&HEATH ISSUE DATE VR2B VR4B PA SERIES FB2 PCB VR1B VR3B TITLE: ORIGIN POT11 20KB C/D POT11 20KB C/D POT11 200KC X2 D/G POT11 200KC X2 D/G Kernick Industrial Estate,...
  • Page 34 003-039...
  • Page 35 Note: Description includes Allen and Heath part number in brackets PA-CP FB2 issue 1 Designator Description CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) CAPACITOR SMD 470P CERAMIC 0805 (AF2848) CAPACITOR SMD 470P CERAMIC 0805 (AF2848) CAPACITOR SMD 470P CERAMIC 0805 (AF2848)
  • Page 36 SW2PCOL (SPUN) -17VA 10R PF RAD +17VA LED T1 3MM RED ALLEN&HEATH ISSUE DATE VR2B VR4B PA SERIES FB2 PCB VR1B VR3B TITLE: ORIGIN POT11 20KB C/D POT11 20KB C/D POT11 200KC X2 D/G POT11 200KC X2 D/G Kernick Industrial Estate,...
  • Page 37 003-039...
  • Page 38 SW5A SW2PCOL (SPUJ) PRE_LEFT PRE_LEFT 2TRK_OUT_L 22P_S 22P_S 10K 1% 0805 -10dB 10K 1% 0805 MIXL 22P_S 22P_S 100/25 10K 1% 0805 100K 1% 0805 0R0 0805 33K 1% 0805 10K 1% 0805 NE5532 SMD J111N 10K 1% 0805 TL072D SMD LEFT_OUT 10K 1% 0805 47/25...
  • Page 39 4K7 1% 0805 FID1 FIDUCIAL LED T1 3MM RED TO_AMP_A FID2 10R 0805 BC848B 47K 0805 LED T1 3MM GREEN FIDUCIAL 10K 1% 0805 10K 1% 0805 SIG_A 5K6 0805 LED T1 3MM BLUE 0R0 0805 HOLE-AI VTECH SLOT-AI VTECH LED T1 3MM GREEN SIG_B 4K7 1% 0805...
  • Page 40 003-092...
  • Page 41 FID1 FIDUCIAL FID2 10R 0805 FIDUCIAL LED T1 3MM RED HOLE-AI VTECH 10K 1% 0805 10K 1% 0805 LIMIT_A LED T1 3MM BLUE SLOT-AI VTECH LED T1 3MM GREEN SIG_A OPENRELAY_A LED T1 3MM YELLOW SW3A SW2PCOL (SPUN) STANDBY THERMAL LED T1 3MM YELLOW BOX 13X2 M 90 DEG TO DIST...
  • Page 42 SW5A SW2PCOL (SPUJ) PRE_LEFT PRE_LEFT 2TRK_OUT_L 22P_S 22P_S 10K 1% 0805 -10dB 10K 1% 0805 MIXL 22P_S 22P_S 100/25 10K 1% 0805 100K 1% 0805 0R0 0805 33K 1% 0805 10K 1% 0805 NE5532 SMD J111N 10K 1% 0805 TL072D SMD LEFT_OUT 10K 1% 0805 47/25...
  • Page 43 003-040...
  • Page 44 Note: Description includes Allen and Heath part number in brackets PA-CP L/R Master issue 3 Designator Description Designator Description CAPACITOR ELECTROLYTIC 100MF 25V RADIAL (AF0221) RESISTOR CARBON SMD0805 0R0 5% (AC2838) CAPACITOR ELECTROLYTIC 100MF 25V RADIAL (AF0221) RESISTOR CARBON SMD0805 0R0 5% (AC2838) CAPACITOR CERAMIC SMD0805 22P (AF2992) RESISTOR CARBON SMD0805 0R0 5% (AC2838) CAPACITOR CERAMIC SMD0805 22P (AF2992)
  • Page 45 AUX-FX SUB 1 PROG_0 PROG_1 PROG_0 PROG_1 PROG_2 PROG_3 PROG_2 PROG_3 FROM_FX_L FROM_FX_R FROM_FX_L FROM_FX_R LINK OPT FOOTSWITCH FOOTSWITCH 2TRK_OUT_L 2TRK_OUT_R LF_IN_A LF_OUT_A LF_OUT_A LMF_OUT_A FX_OUT LF_IN_B LF_OUT_B LF_OUT_B LMF_OUT_B +10V_FX FX_OUT AUX_OUT 2TRK_OUT_L 2TRK_OUT_R 2TRK_IN_L 2TRK_IN_R FX_OUT AUX_OUT LINK OPT +17V_IN IDC 8X2 F STRT IDC 8X2 F STRT...
  • Page 46 003-093...
  • Page 47 LINK TCW LINK TCW LINK TCW LINK TCW +10V 4R7 2.5W PIN-WIRE CRIMP 1.0MM PIN-WIRE CRIMP 1.0MM ALLEN&HEATH ISSUE DATE PA SERIES DISTRIBUTION TITLE: 03/05/02 Kernick Industrial Estate, 28-06-02 Penryn, Cornwall, PAGE: 23-07-02 England. TR10 9LU 12-09-02 Tel: +44 (0)8707 556250...
  • Page 48 003-041...
  • Page 49 Note: Description includes Allen and Heath part number in brackets PA-CP Distribution issue 2 Designator Description Connector IDC,Molex Type 0.1 Pitch 8x2 pins Female Straight (AL3868) Connector IDC,Molex Type 0.1 Pitch 8x2 pins Female Straight (AL3868) Connector IDC,Molex Type 0.1 Pitch 8x2 pins Female Straight (AL3868) Connector IDC,Molex Type 0.1 Pitch 8x2 pins Female Straight (AL3868) Connector IDC,Molex Type 0.1 Pitch 8x2 pins Female Straight (AL3868) Connector IDC,Molex Type 0.1 Pitch 13x2 PINS FEMALE STRAIGHT (AL5045)
  • Page 50 C6265_2P1 C6265_2P2 C6265_2P1.Sch C6265_2P2.Sch ISSUE BY DATE PA EFFECTS PCB (ALESIS) TITLE: 18-03-05 Text Kernick Industrial Estate, 14-04-05 Text Penryn, Cornwall, PAGE: 16-05-05 Text England. TR10 9LU Tel: +44 (0)8707 556250 C6265 DRG No: ISSUE: SHEET: Fax: +44 (0)8707 556251 FILE: C6265_2.Sch PRINTED:...
  • Page 51 MCLK1 MCLK0 LRCLK1 LRCLK0 SCLK0 SCLK 100K 1% 0805 100K 1% 0805 RESET_L1 RESET_L2 74HC04 74HC04 74HC04 10R 0805 DRE_OUT DRE_IN DIGOUT DIGIN 10/16 10/16 INT_MUTE INT/EXT 100N/50V 0805 XTAL IN BYPASS SCLK1 SCLK0 LRCLK0 LRCLK MCLK0 MCLK XTAL 12.288MHZ 100N/50V 0805 XTAL OUT 74HC04...
  • Page 52 SCREW1 MIDI+ SCREW 2.5X6 PAN POZ PLASTITE ZINC 100P_S MIDI- SCREW2 4K7 1% 0805 SCREW 2.5X6 PAN POZ PLASTITE ZINC DIN SKT FEMALE HA 5 PIN 180 DEG 4K7 1% 0805 10/16 TL072D SMD FB-SM 10K 1% 0805 FOOTSWITCH 100N 0805 10/16 1K0 1% 0805 -17V = Mute...
  • Page 54 +70V +70VIN ZENER NF 100N 100V/MLC FUSE HOLDER 20MM SCHURTER CLIPS 4K7 2.5W 100R 220P/DISK 100R MPSA92 +12V 2R7 2.5W MF 0R15 3W 0R15 3W 0R15 3W 1N4148 RES NF MPSA92 RES NF 22P/DISK 200V 47/25 MPSA92 BZX79C12V AGND 1N4007 CAPEL NF 100N 100V/MLC AGND...
  • Page 55 +12V_FAN +12V_FAN LM339 100K JMP1 LM339 AGND TO_AMP_A STANDBY STANDBY_L TO_AMP TO_AMP_B PULLS LOW (0V) TO OPEN RELAY SIL 3 M STRT JMP2 LIMIT_A LIMIT +12V_FAN WIRING FROM POWER SUPPLY LIMIT_B +12V_FAN SIL 3 M STRT +70VIN 150K JMP3 +12V_FAN OPENRELAY_A 1/4 INCH BLADE TERMINAL THERMISTOR BEAD...
  • Page 56 003-043...
  • Page 57 Note: Description includes Allen and Heath part number in brackets PA-CP Amplifier issue 4 Designator Description Designator Description Designator Description CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) LK21 TC LINK (AH0070) RESISTOR METAL 10K 0.6W 1% (AC5121) CAPACITOR ELECTROLYTIC 47uF 25V (AF0208) LK22 TC LINK (AH0070) RESISTOR METAL 10K 0.6W 1% (AC5121)
  • Page 58 7915 GROUND ALLEN&HEATH LK11 LK13 LK15 LK17 LK19 ISSUE DATE FIX1 FIX5 FIX7 PA SERIES POWERED MIXER TITLE: 01-08-02 LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW HOLE-FIXING 3.2MM HOLE-FIXING 3.2MM...
  • Page 59 003-069...
  • Page 60 INSUL KIT T0220 SELF ADHESIVE (AA3514) FUSE CLIP SCHURTER (AL8134) HEATSINK PA LINEAR PSU (AA4991) FUSE CLIP SCHURTER (AL8134) HEATSINK PA SERIES LINEAR BRIDGE (AA5097) FUSE CLIP SCHURTER (AL8134) FUSE CLIP SCHURTER (AL8134) FUSE CLIP SCHURTER (AL8134) FUSE CLIP SCHURTER (AL8134)
  • Page 61 7915 GROUND ALLEN&HEATH LK11 LK13 LK15 LK17 LK19 ISSUE DATE FIX1 FIX5 FIX7 PA SERIES POWERED MIXER TITLE: 01-08-02 LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW LINK TCW HOLE-FIXING 3.2MM HOLE-FIXING 3.2MM...
  • Page 62 003-069...
  • Page 63 100N 0805 SCREW M3X4 PAN TORX BK SCREW M3X4 PAN TORX BK PILLAR M3X6 HEX BRASS PILLAR M3X6 HEX BRASS ALLEN&HEATH ISSUE DATE PA SERIES LED PCB TITLE: 04-07-02 Kernick Industrial Estate, 06-08-02 Penryn, Cornwall, PAGE: 24-09-02 England. TR10 9LU...
  • Page 64 003-070...
  • Page 65 Note: Description includes Allen and Heath part number in brackets PA-CP FX LED issue 2 Designator Description FLEX SKT 12 WAY 90 DEG (AL2226) LED RECTANGULAR 5 X 2.5 TOMBSTONE GREEN (AE4864) LED RECTANGULAR 5 X 2.5 TOMBSTONE GREEN (AE4864) LED RECTANGULAR 5 X 2.5 TOMBSTONE GREEN (AE4864) LED RECTANGULAR 5 X 2.5 TOMBSTONE GREEN (AE4864) LED RECTANGULAR 5 X 2.5 TOMBSTONE GREEN (AE4864)
  • Page 66 NF CAP 0805 SCREW M3X4 PAN TORX BK SCREW M3X4 PAN TORX BK PILLAR M3X6 HEX BRASS PILLAR M3X6 HEX BRASS ALLEN&HEATH ISSUE DATE PA SERIES LED PCB TITLE: 04-07-02 Kernick Industrial Estate, 06-08-02 Penryn, Cornwall, PAGE: 24-09-02 England. TR10 9LU...
  • Page 67 003-070...
  • Page 68 RT/CT ISEN 10/50 UC3842AN 4N7/MYL 47/63 100N/MLC 470P/DISK 0R33 2.5W ALLEN&HEATH ISSUE BY DATE PA SERIES UNPOWERED PSU TITLE: AAT 20-02-03 Kernick Industrial Estate, AAT 09-04-03 Penryn, Cornwall, PAGE: England. TR10 9LU Tel: +44 (0)8707 556250 AG5044 DRG No: ISSUE:...
  • Page 69 LINK TCW 4K7 1% 47/25 1/63 LK12 LINK TCW LK13 LINK TCW ALLEN&HEATH ISSUE BY DATE PA SERIES UNPOWERED PSU TITLE: AAT 20-02-03 Kernick Industrial Estate, AAT 09-04-03 Penryn, Cornwall, PAGE: England. TR10 9LU Tel: +44 (0)8707 556250 AG5044 DRG No:...
  • Page 70 003-094...
  • Page 71 COMP RT/CT ISEN 10/50 UC3842AN 4N7/MYL 47/63 100N/MLC 470P/DISK 0R33 2.5W ALLEN&HEATH ISSUE BY DATE PA SERIES UNPOWERED PSU TITLE: AAT 20-02-03 Kernick Industrial Estate, AAT 09-04-03 Penryn, Cornwall, PAGE: 14-07-03 Text England. TR10 9LU 10-11-03 Text Tel: +44 (0)8707 556250...
  • Page 72 LINK TCW 47/25 LK12 D14B LINK TCW LK13 LINK TCW LK14 LINK TCW ALLEN&HEATH ISSUE BY DATE PA SERIES UNPOWERED PSU TITLE: AAT 20-02-03 Kernick Industrial Estate, AAT 09-04-03 Penryn, Cornwall, PAGE: SRT 14-07-03 Text England. TR10 9LU 10-11-03 Text...
  • Page 73 003-094...
