Honeywell HD3U Quick Install Manual

Day/night ultra wide dynamic fixed dome camera
Hide thumbs

Advertisement

Quick Links

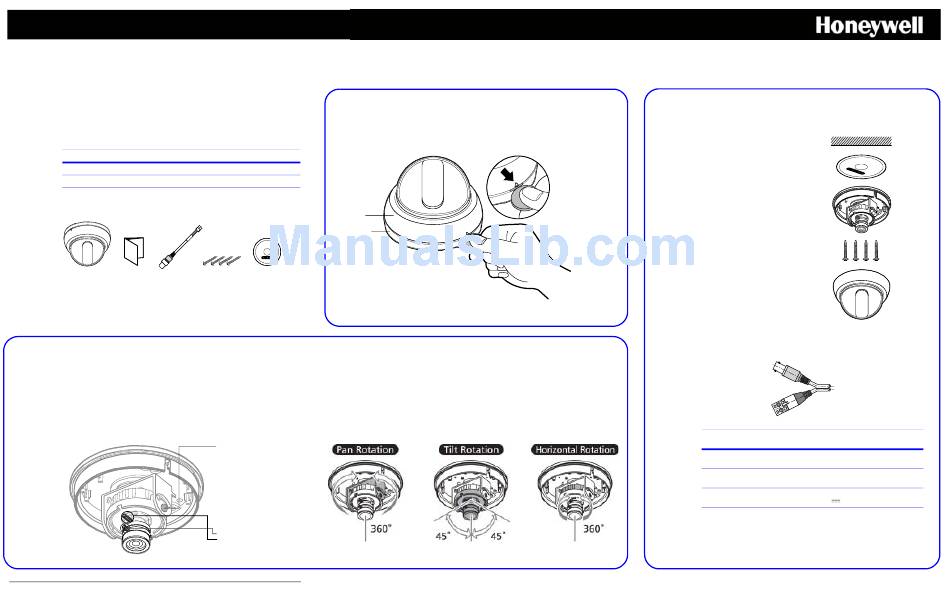

Day/Night Ultra Wide Dynamic
Fixed Dome Camera
Quick Install Guide
Document 800-05023 – Rev D – 02/10
Thank you for purchasing a Honeywell Day/Night Ultra Wide Dynamic Fixed Dome
Camera. Before installing the camera, please verify your model and read this guide
carefully:
Model
Signal format
Lens
HD3U
NTSC
2.8 to 10.5 mm Vari-focal Auto Iris lens
HD3UX
PAL
2.8 to 10.5 mm Vari-focal Auto Iris lens
Unpack Everything
HD3U/X camera
Owner's
Service
manual
monitor
cable
You will also require a Phillips screwdriver and side-cutters.
3

Adjust the Camera

To adjust the HD3U/X Camera:
1.
Apply 12 VDC or 24 VAC power to the camera and monitor the video signal.
2.
Loosen the screws that lock the gimbal assembly in place (see below).
3.
Adjust the camera gimbal to the desired view.
4.
Tighten the screws to lock the gimbal assembly in place.
Note
Orient the camera as shown in "Adjusting the Lens Focus" to
maintain the correct picture orientation.
Document 800-05023 – Rev D – 02/10
1
Remove the Dome Cover
Before you can mount or adjust your HD3U/X, you must remove the dome cover.
Insert a coin or screwdriver in the slot on the dome cover, then twist to pry the dome
cover from the camera base.
Dome
cover
Camera
base
Mounting
Mounting
screws
template
Adjusting the Lens Focus
Lenses are pre-focused at the factory. In the unlikely event that the optical effect of
the dome cover causes a slight defocusing of the lens, hold the dome cover over the
lens to make a final adjustment.
Loosen these screws to
unlock the gimbal.
Legend:
1. Adjust the vertical angle
2. Adjust the horizontal angle.
3. Adjust the horizontal positon.
4. Focus (Far or Near)
5. Zoom (Tele or Wide)
2

Mount the Camera

The HD3U/X camera is designed to be surface mounted on a wall or ceiling.
1.
Attach the mounting template to the
wall or ceiling.
2.
Drill four holes according to the
mounting template, then insert
anchors (not supplied) into the drilled
holes.
3.
Pull power and video cables through
to the connectors. See "Connect the
Wiring" (see below).
4.
Use the four screws (supplied) to
attach the camera to the wall or
ceiling.
Note
Leave the dome cover off until
you have adjusted the camera.
Connect the Wiring
Video output
Power input
Function
Terminal
Remarks
Color
Video
Yellow
1.0 Vp-p
output
Power
Green
24 VAC (20V~28V) or 12 VDC (10V~15V),
input
Max 3.8 W, 310 mA
The power connections are not polarity sensitive.
Use a 24 VAC ~ power source or a 12 VDC
Ceiling
Mounting
template
Camera
base
Mounting
screws
Dome
cover
power source.
