Summary of Contents for Sharkoon SCORPIO 1000

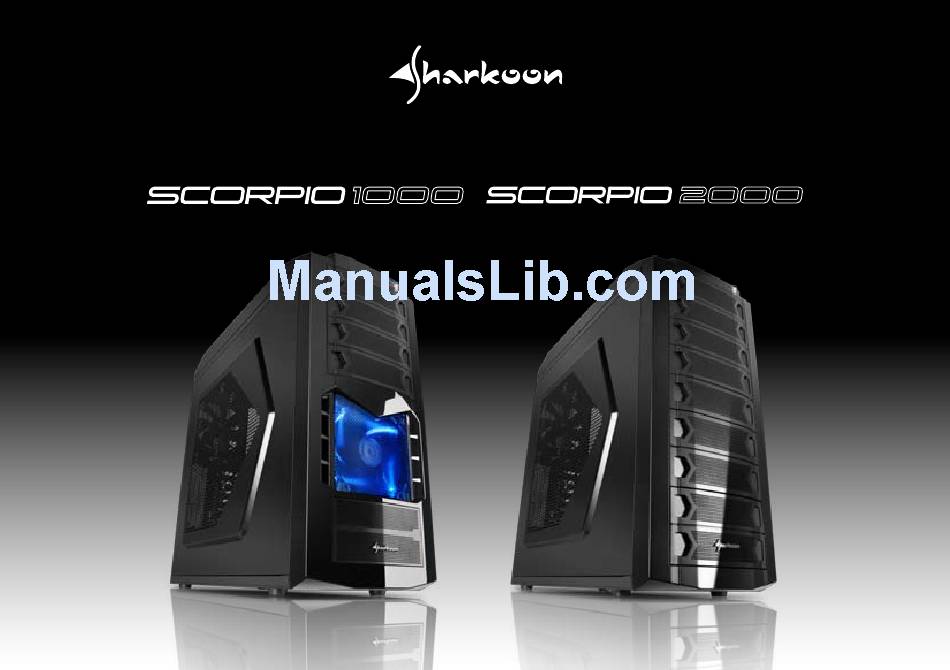

  • Page 1 Manual...

  • Page 2: Table Of Contents

    5.2 3.5" HDD cage 5.3 3.5" drive bay Dear customer! 5.4 2.5" HDD cage Congratulations for purchasing one premium quality SHARKOON 6. Installing a PSU product. For a long life time and to take full advantage of this product we Installing an optical device recommend that you read this manual completely.

  • Page 3: Features

    • Dimensions: 508 x 210 x 503 mm (L x W x H) • Weight: ~7.25 kg • Fan configuration Scorpio 1000: 1x 120 mm LED fan Case front (blue/pre-installed) 1x 200 mm fan or 2x 120 mm fans Side panel...

  • Page 4: Package Contents

    120 mm LED fan (blue/pre-installed) mounting – Fast Swap drive bays Note: If you are missing any of the items listed above, please contact customer service via e-mail at support@sharkoon.com or call + 49 (0) 6403 – 775 6100. scorpio 1000/2000...
  • Page 5 – On/off button 120 mm LED fan (blue/pre-installed) – Reset button – Fast Swap drive bays (incl. pre-installed 80 mm fan) – 2x USB2.0 connectors – 1x headphones and microphone plug – 1x eSATA connector scorpio 1000/2000...
  • Page 6 Circuit board to connect the front fans (no fan control!): – Circuit board’s 4-pin power connector – SATA data connector HDD 1 (top) – SATA data connector HDD 2 (bottom) – Fan power connectors – Mounting bay for a single 3.5" HDD scorpio 1000/2000...
  • Page 7 Slot bezels – USB connector of the USB front hub – PSU bracket – Audio connectors (HD Audio and AC’97) – eSATA connector Note: For more information on how to install the intended devices, refer to their respective documents. scorpio 1000/2000...

  • Page 8: Installing A Mainboard

    (fig. 1). (Stand-offs) fig. 1 The mainboard contains special screw openings (fig. 2). fig. 3 4. Press the I/O shield (delivered with the mainboard) into the I/O shield opening in the case’s back side. fig. 2 scorpio 1000/2000...

  • Page 9: Installing A Hdd

    Note: The eSATA cable connected to the front eSATA connection should not exceed 50 cm of length otherwise transmission errors may occur! With premium quality eSATA cables this maximum length fig. 6 may be exceeded. scorpio 1000/2000...
  • Page 10 1. Attach the mounting rails to the 3.5“ HDD from both sides (fig. 9). fig. 7 5. Slide the mounting frame back into the Fast Swap bay until its detent lever locks and close the bezel. fig. 9 scorpio 1000/2000...

  • Page 11: Drive Bay

    1. Remove the case’s left and right side panel. fig. 12 2. Insert a 3.5" HDD into the drive bay below the Fast Swap drive 4. Connect the installed HDD to the mainboard. bays inside the case (fig. 11). fig. 11 scorpio 1000/2000...

  • Page 12: Installing A Psu

    3. Connect the circuit board’s 4-pin power connector to a matching 6. Installing a PSU power plug of the PSU (fig. 16). 1. Put the PSU from the inside against the PSU bracket on the case’s back side (fig. 14). fig. 16 fig. 14 scorpio 1000/2000...

  • Page 13: Installing An Optical Device

    (fig. 17). fig. 18 3. Connect the optical drive to the power supply and the mainboard. fig. 17 Note: If you intend to transport the case we recommend securing (additionally) the installed drives. scorpio 1000/2000...

  • Page 14: Installing An Add-On Card

    1. Place the fan (1x 200 mm or 2x 120 mm) against the respective fan bracket from the inside. Screw the fan to the side panel from the outside. 2. Connect the fan’s power connector to the mainboard or the PSU. scorpio 1000/2000...

  • Page 15: Top Panel

    3. Place the fan to the respective fan bracket from the inside. Screw the fan to the fan bracket from the outside (fig. 22). fig. 22 4. Connect the fan’s power connector to the PSU or the mainboard. scorpio 1000/2000...
  • Page 16 Legal disclaimer: As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National specifications may vary. All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means.

This manual is also suitable for:

Scorpio 2000
