Digital Projector
X31i/X36i/X46i/WX36i
Operator's Guide
Thank you for purchasing this projector.
Important Notice
WARNING
CAUTION
Important
Notice
NOTE
Trademark acknowledgment
®
®
Product Warranty and Safety Guide
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X46i and is the answer not in the manual?

Questions and answers

Related Manuals for 3M X46i

Summary of Contents for 3M X46i

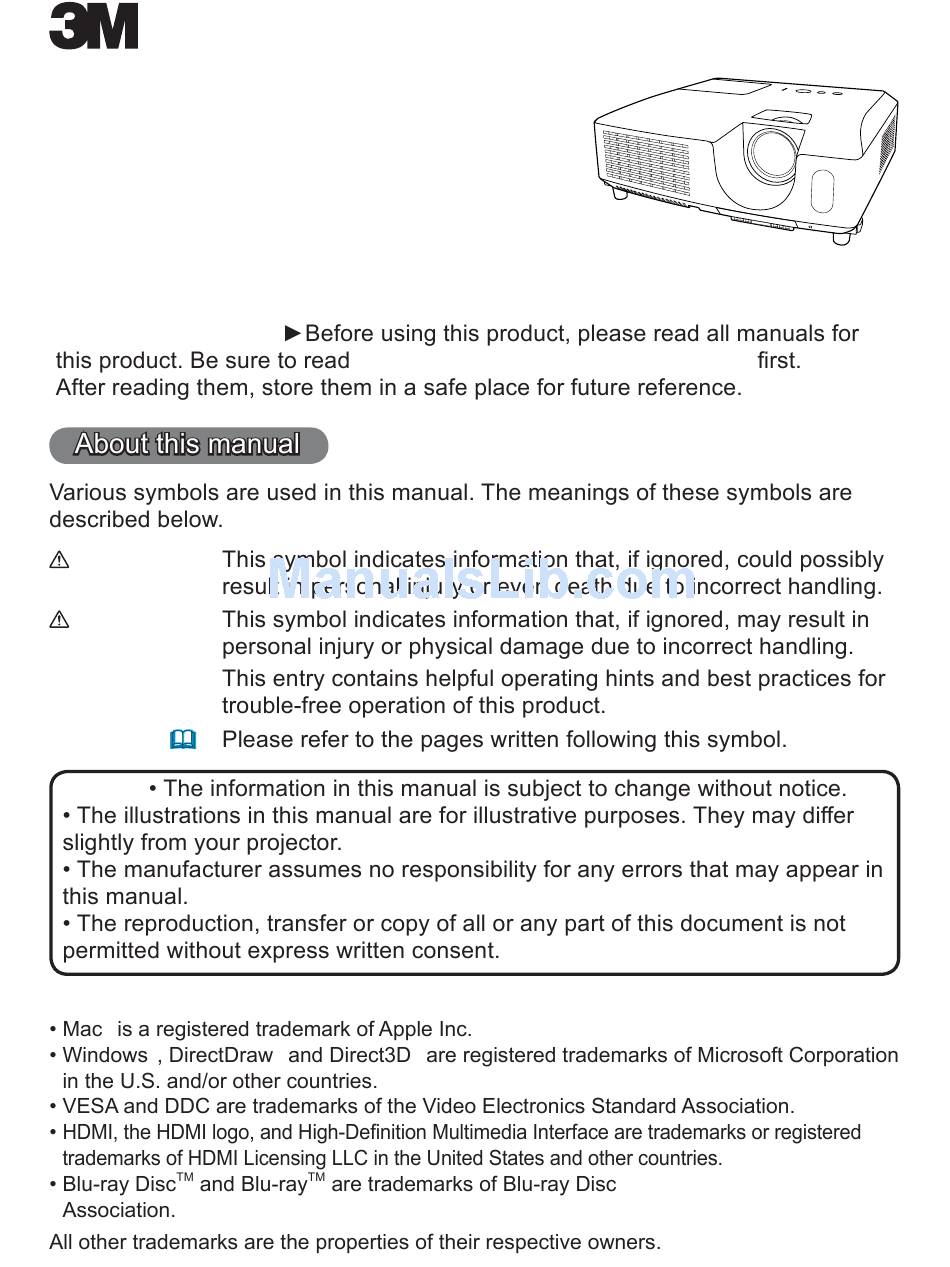

  • Page 1 Digital Projector X31i/X36i/X46i/WX36i Operator's Guide Thank you for purchasing this projector. Important Notice Product Warranty and Safety Guide WARNING CAUTION Important Notice NOTE Trademark acknowledgment ® ® ® ®...

  • Page 2: Table Of Contents

    3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction ....3 SETUP menu ....46 UTO KEYSTONE...

  • Page 3: Introduction

    3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction Features HDMI TYPE A...
  • Page 4 3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction Checking the contents of package STANDBY/ON MY SOURCE/ VIDEO COMPUTER DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN KEYSTONE MY BUTTON MUTE POSITION MENU ENTER RESET WARNING NOTE...

  • Page 5: Part Names

    3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction Part names 23 49 FOCUS ZOOM AC IN WARNING CAUTION...
  • Page 6 3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction Part names (continued) Control panel STANDBY/ON INPUT MENU LAMP TEMP POWER 11 ~ 15 Rear panel COMPUTER IN2 USB TYPE A MONITOR OUT USB TYPE B CONTROL HDMI VIDEO S-VIDEO AUDIO IN1 AUDIO IN2 AUDIO IN3 R,L...
  • Page 7 3M™ Digital Projector X31i/X36i/X46i/WX36i Introduction Part names (continued) Remote control VIDEO COMPUTER STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA SEARCH ASPECT AUTO SEARCH BLANK STANDBY ON MAGNIFY FREEZE PAGE UP VOLUME ASPECT PAGE DOWN AUTO KEYSTONE MY BUTTON MUTE BLANK MAGNIFY ON...

  • Page 8: Setting Up

    3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Projector-to-Screen Arrangement...
  • Page 9 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Arrangement (continued) WARNING Install the projector where you can access the power outlet easily. Do not subject the projector to unstable conditions. things. Do not place the projector where any oils, such as cooking or machine oil, are used.
  • Page 10 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Arrangement (continued) CAUTION ventilation. Avoid placing the projector in smoky, humid or dusty place. NOTICE...

  • Page 11: Connecting With Your Devices

    3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting with your devices Network Guide WARNING Use only the appropriate accessories. Important Note For a cable with a core at only one end, connect the end with the core to the projector. NOTE...
  • Page 12 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting with your devices (continued) Computer AUDIO IN AUDIO OUT NOTE...
  • Page 13 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting with your devices (continued) Computer External device Access point wireless adapter AUDIO IN storage AUDIO OUT device Important Notes NOTE...
  • Page 14 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting with your devices (continued) VCR/DVD/Blu-ray Disc player AUDIO IN AUDIO OUT HDMI NOTE HDMI HDMI...
  • Page 15 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting with your devices (continued) Speakers Monitor AUDIO IN AUDIO OUT NOTE Microphone function VOLUME +/- MUTE...
  • Page 16 3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Connecting to a power supply AC IN POWER AC IN Power cord WARNING NOTICE...

  • Page 17: Fastening The Adapter Cover

    3M™ Digital Projector X31i/X36i/X46i/WX36i Setting up Fastening the adapter cover USB TYPE A TYPE A WARNING Using the security bar and slot Security slot 12mm 18mm 18mm security bar Anti-theft chain or wire CAUTION NOTE...

  • Page 18: Remote Control

    3M™ Digital Projector X31i/X36i/X46i/WX36i Remote control Installing the batteries (HITACHI MAXELL or HITACHI MAXELL ENERGY, Part No.LR6 or R6P) CAUTION...

  • Page 19: Volume

    3M™ Digital Projector X31i/X36i/X46i/WX36i Remote control About the remote control signal NOTE Changing the frequency of remote control signal STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA BLANK ASPECT AUTO SEARCH PAGE UP MAGNIFY FREEZE VOLUME PAGE DOWN KEYSTONE MY BUTTON MUTE...

  • Page 20: Video

    3M™ Digital Projector X31i/X36i/X46i/WX36i Remote control Using as a simple PC mouse & keyboard TYPE B PAGE UP key: PAGE UP USB TYPE B PAGE DOWN key: PAGE DOWN STANDBY/ON Mouse left button: ENTER MY SOURCE/ VIDEO COMPUTER DOC.CAMERA ASPECT...

  • Page 21: Power On/Off

    3M™ Digital Projector X31i/X36i/X46i/WX36i Power on/off Turning on the power STANDBY/ON POWER POWER STANDBY/ON POWER Selecting an input signal ENTER INPUT ENTER INPUT...
  • Page 22 3M™ Digital Projector X31i/X36i/X46i/WX36i Power on/off Turning off the power STANDBY/ON STANDBY/ON POWER POWER POWER CAUTION NOTE...

  • Page 23: Operating

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating VOLUME + - Adjusting the volume VOLUME + VOLUME - STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN KEYSTONE MY BUTTON MUTE VOLUME +/- MUTE Temporarily muting the sound...

  • Page 24: Aspect

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Selecting an input signal INPUT INPUT USB TYPE B COMPUTER COMPUTER STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN COMPUTER VIDEO S-VIDEO HDMI COMPUTER IN1 USB TYPE B...

  • Page 25: Blank

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Searching an input signal SEARCH SEARCH STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN KEYSTONE MY BUTTON MUTE USB TYPE B...

  • Page 26: Selecting An Aspect Ratio

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Selecting an aspect ratio ASPECT ASPECT STANDBY/ON MY SOURCE/ VIDEO COMPUTER DOC.CAMERA For a computer signal ASPECT AUTO SEARCH BLANK MAGNIFY PAGE UP VOLUME FREEZE PAGE DOWN KEYSTONE MY BUTTON MUTE For an HDMI signal...
  • Page 27 3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Adjusting the projector's elevator feet 14° CAUTION ZOOM Adjusting the zoom and focus FOCUS ZOOM FOCUS...

  • Page 28: Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Using the automatic adjustment feature AUTO AUTO STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA For a computer signal ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN MY BUTTON KEYSTONE MUTE For a video signal and s-video signal...
  • Page 29 3M™ Digital Projector X31i/X36i/X46i/WX36i Operating KEYSTONE Correcting the keystone distortions KEYSTONE STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK PAGE UP VOLUME MAGNIFY FREEZE PAGE DOWN KEYSTONE MY BUTTON MUTE KEYSTONE...

  • Page 30: Magnify On

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating MAGNIFY Using the magnify feature ON/OFF MAGNIFY ON STANDBY/ON MY SOURCE/ VIDEO COMPUTER DOC.CAMERA MAGNIFY ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE UP VOLUME PAGE DOWN KEYSTONE MY BUTTON MUTE MAGNIFY ON For computer signals, HDMI...
  • Page 31 3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Temporarily freezing the screen FREEZE FREEZE STANDBY/ON MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK PAGE UP VOLUME MAGNIFY FREEZE PAGE DOWN KEYSTONE MY BUTTON MUTE FREEZE Temporarily blanking the screen BLANK BLANK STANDBY/ON...

  • Page 32: Using The Menu Function

    3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Using the menu function MENU MENU INPUT POSITION MENU POSITION STANDBY/ON MY SOURCE/ VIDEO COMPUTER DOC.CAMERA ASPECT AUTO SEARCH BLANK ENTER MAGNIFY FREEZE PAGE UP VOLUME ENTER PAGE DOWN KEYSTONE MY BUTTON MUTE POSITION MENU...
  • Page 33 3M™ Digital Projector X31i/X36i/X46i/WX36i Operating Using the menu function (continued) MENU ENTER POSITION RESET Indication in OSD (On Screen Display) Indication Meaning MENU...

  • Page 34: Easy Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i EASY MENU Item Description ASPECT AUTO KEYSTONE KEYSTONE PICTURE MODE 36, 37...

  • Page 35: Co Mode

    3M™ Digital Projector X31i/X36i/X46i/WX36i EASY MENU Item Description ECO MODE INSTALLATION RESET FILTER TIME LANGUAGE ENTER ADVANCED MENU EXIT ENTER...

  • Page 36: Picture Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i PICTURE menu ENTER Item Description BRIGHTNESS CONTRAST To adjust CUSTOM ENTER ENTER GAMMA ENTER...

  • Page 37: Color

    3M™ Digital Projector X31i/X36i/X46i/WX36i PICTURE menu Item Description To adjust CUSTOM ENTER COLOR TEMP ENTER ENTER COLOR TINT...

  • Page 38: Sharpness

    3M™ Digital Projector X31i/X36i/X46i/WX36i PICTURE menu Item Description SHARPNESS ACTIVE IRIS ENTER MY MEMORY MY BUTTON 59, 60...

  • Page 39: Image Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i IMAGE menu ENTER Item Description For a computer signal For an HDMI signal ASPECT For a video signal, s-video signal or component video signal For an input signal from the LAN, USB TYPE A or USB TYPE B...

  • Page 40: Ver Scan

    3M™ Digital Projector X31i/X36i/X46i/WX36i IMAGE menu Item Description OVER SCAN RESET V POSITION LAN USB TYPE A USB TYPE B HDMI RESET H POSITION LAN USB TYPE A USB TYPE B HDMI...

  • Page 41: Hphase

    3M™ Digital Projector X31i/X36i/X46i/WX36i IMAGE menu Item Description H PHASE LAN USB TYPE A USB TYPE B HDMI LAN USB TYPE A USB TYPE HDMI H SIZE RESET For a computer signal For a video signal and s-video signal AUTO ADJUST...

  • Page 42: Input Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i INPUT menu ENTER Item Description PROGRESSIVE VIDEO NR COLOR SPACE LAN USB TYPE A USB TYPE B...
  • Page 43 3M™ Digital Projector X31i/X36i/X46i/WX36i INPUT menu Item Description S-VIDEO VIDEO VIDEO FORMAT VIDEO S-VIDEO HDMI HDMI FORMAT HDMI HDMI RANGE...
  • Page 44 3M™ Digital Projector X31i/X36i/X46i/WX36i INPUT menu Item Description COMPUTER IN1 COMPUTER IN COMPUTER IN 12, 14 FRAME LOCK...
  • Page 45 3M™ Digital Projector X31i/X36i/X46i/WX36i INPUT menu Item Description COMPUTER IN1 COMPUTER IN2 ENTER RESOLUTION ENTER ENTER...

  • Page 46: Setup Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i SETUP menu ENTER Item Description AUTO KEYSTONE KEYSTONE...

  • Page 47: Installation

    3M™ Digital Projector X31i/X36i/X46i/WX36i SETUP menu Item Description AUTO ECO MODE below ECO MODE above INSTALLATION...

  • Page 48: Tandby Mode

    3M™ Digital Projector X31i/X36i/X46i/WX36i SETUP menu Item Description STANDBY MODE AUDIO OUT MONITOR OUT MONITOR OUT COMPUTER IN MONITOR OUT MONITOR OUT...

  • Page 49: Audio Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i AUDIO menu ENTER Item Description VOLUME SPEAKER AUDIO OUT AUDIO SOURCE AUDIO IN1 AUDIO IN2 AUDIO IN3 USB TYPE A USB TYPE B HDMI VIDEO S-VIDEO COMPUTER IN1 COMPUTER IN2 MIC LEVEL MIC VOLUME...

  • Page 50: Screen Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu ENTER Item Description LANGUAGE ENTER INPUT MENU POSITION MENU BLANK BLANK START UP above...
  • Page 51 3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu Item Description ENTER INPUT RESET MyScreen LAN, USB TYPE A USB TYPE B HDMI...
  • Page 52 3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu Item Description MyScreen Lock MESSAGE FREEZE...

  • Page 53: Source Name , Template

    3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu Item Description ENTER SOURCE NAME ENTER INPUT ENTER INPUT ENTER INPUT...
  • Page 54 3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu Item Description ENTER INPUT RESET INPUT ENTER INPUT SOURCE NAME continued ENTER INPUT ENTER INPUT ENTER INPUT ENTER MY BUTTON TEMPLATE RESET...
  • Page 55 3M™ Digital Projector X31i/X36i/X46i/WX36i SCREEN menu Item Description DISPLAY C.C. (Closed Caption) MODE CHANNEL...

  • Page 56: Option Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu ENTER Item Description AUTO SEARCH USB TYPE B AUTO KEYSTONE DIRECT POWER...

  • Page 57: Uto Power Off

    3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description AUTO POWER CONTROL Turning off the power USB TYPE B USB TYPE B 95, 99 TYPE B USB TYPE B USB TYPE B USB TYPE B USB TYPE B USB TYPE B...

  • Page 58: Amp Time

    3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description RESET LAMP TIME Replacing the lamp RESET FILTER TIME Cleaning and replacing...
  • Page 59 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description MY BUTTON ENTER ENTER INPUT COMPUTER IN1 COMPUTER IN2 USB TYPE A USB TYPE B HDMI S-VIDEO VIDEO USB TYPE A, MY BUTTON Messenger Function Network Guide MY BUTTON...

  • Page 60: Service

    3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description MY BUTTON continued MY SOURCE/DOC.CAMERA MY SOURCE ENTER ALTITUDE SERVICE AUTO ADJUST...
  • Page 61 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description GHOST FILTER MESSAGE SERVICE (continued) KEY LOCK STANDBY/ON...
  • Page 62 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description REMOTE FREQ. SERVICE CONTROL (continued) COMMUNICATION Network Guide...
  • Page 63 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description COMMUNICATION TYPE CONTROL CONTROL Network Bridge Function Network Guide CONTROL SERIAL SETTINGS CONTROL BAUD RATE SERVICE COMMUNICATION (continued) (continued) PARITY TRANSMISSION METHOD CONTROL...
  • Page 64 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description RESPONSE LIMIT TIME CONTROL COMMUNICATION (continued) CONTROL SERVICE (continued) CLONING...
  • Page 65 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description SERVICE CLONING (continued) (continued)
  • Page 66 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description SERVICE CLONING (continued) (continued)
  • Page 67 3M™ Digital Projector X31i/X36i/X46i/WX36i OPTION menu Item Description INFORMATION SERVICE (continued) FACTORY RESET...

  • Page 68: Network Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu ENTER Network Guide NOTE (Date/Time Settings Network Guide) Item Description ENTER WIRELESS SETUP MODE...
  • Page 69 3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description DHCP (Dynamic Host Protocol) IP ADDRESS WIRELESS SUBNET SETUP MASK (continued) DEFAULT GATEWAY DNS SERVER TIME DIFFERENCE...
  • Page 70 3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description DATE AND TIME Date/Time Settings Network Guide WIRELESS SETUP (continued) ENCRYPTION...
  • Page 71 3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description ENTER To adjust CUSTOM ENTER ENTER INPUT RESET INPUT ENTER INPUT WIRELESS SETUP SSID (continued) ENTER INPUT ENTER INPUT ENTER INPUT...

  • Page 72: Ireless Information

    3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description WIRELESS INFORMATION...

  • Page 73: Ired Setup

    3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description ENTER DHCP (Dynamic Host Protocol) WIRED SETUP IP ADDRESS SUBNET MASK DEFAULT GATEWAY DNS SERVER...

  • Page 74: Ired Information

    3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description TIME DIFFERENCE WIRED SETUP (continued) DATE AND TIME Date/Time Settings Network Guide WIRED INFORMATION...

  • Page 75: Rojector Name

    3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description ENTER INPUT RESET INPUT ENTER INPUT PROJECTOR NAME ENTER INPUT ENTER INPUT ENTER INPUT...
  • Page 76 3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description My Image Function Network Guide ENTER MY IMAGE To switch the image displayed To return to the menu RESET AMX D.D. (AMX Device Discovery)
  • Page 77 3M™ Digital Projector X31i/X36i/X46i/WX36i NETWORK menu Item Description ENTER QUIT PRESENTER MODE PRESENTATION MULTI PC MODE ENTER INPUT ENTER INPUT...

  • Page 78: Service

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description ENTER INPUT MULTI PC MODE (continued) PRESENTATION (continued) DISPLAY USER NAME SERVICE...

  • Page 79: Security Menu

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Enter to the SECURITY menu below If you have forgotten your password RESET INPUT Item Description SECURITY PASSWORD CHANGE ENTER...

  • Page 80: Yscreen Password

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description 1 Turning on the MyScreen PASSWORD ENTER MyScreen PASSWORD 2 Turning off the MyScreen PASSWORD 3 If you have forgotten your password...

  • Page 81: In Lock

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description 1 Turning on the PIN LOCK ENTER COMPUTER INPUT PIN LOCK 2 Turning off the PIN LOCK 3 If you have forgotten your PIN code RESET INPUT...

  • Page 82: Ransition Detector

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description 1 Turning on the TRANSITION DETECTOR ENTER TRANSITION DETECTOR ENTER 2 Turning off the TRANSITION DETECTOR 3 If you have forgotten your password...

  • Page 83: Y Text Password

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description 1 Turning on the MY TEXT PASSWORD MY TEXT PASSWORD ENTER 2 Turning off the MY TEXT PASSWORD 3 If you have forgotten your password...

  • Page 84: Y Text Display

    3M™ Digital Projector X31i/X36i/X46i/WX36i SECURITY menu Item Description ENTER MY TEXT DISPLAY ENTER INPUT RESET INPUT MY TEXT ENTER INPUT WRITING ENTER INPUT ENTER INPUT ENTER INPUT CLONING LOCK...

  • Page 85: Presentation Tools

    3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools below PC-LESS Presentation USB TYPE A USB TYPE A [Supported storage media] NOTE 13, 88 [Supported format] NOTE...
  • Page 86 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) NOTE Thumbnail Mode USB TYPE A...
  • Page 87 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Operating by buttons or keys Button operation Functions [PAGE UP PAGE UP [PAGE DOWN PAGE DOWN [ENTER ENTER INPUT below The SETUP menu for the selected image Item Functions ENTER ENTER...
  • Page 88 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Operating by the menu on the Thumbnail screen Item Functions ENTER ENTER ENTER USB TYPE A...
  • Page 89 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) NOTE INPUT AUDIO IN...
  • Page 90 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Full Screen Mode ENTER INPUT ENTER] Operations for still images Button operation Functions [PAGE DOWN PAGE DOWN [PAGE UP PAGE UP [ENTER ENTER INPUT...
  • Page 91 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Operations for movie ENTER INPUT Button operation Functions [ENTER ENTER INPUT – [PAGE DOWN PAGE DOWN – [PAGE UP PAGE UP NOTE INPUT...
  • Page 92 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Slideshow Mode ENTER INPUT [ENTER] Button operation Functions [ENTER ENTER INPUT NOTE INPUT ENTER INPUT...
  • Page 93 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) NOTE...
  • Page 94 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools PC-LESS Presentation (continued) Playlist [Example of playlist.txt NOTE Slideshow Mode...
  • Page 95 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Windows computer) Hardware and software requirement for computer ® ® ® Graphic card Memory Hard disk space USB Port USB cable Starting USB Display USB TYPE B NOTE...
  • Page 96 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Windows computer) (continued) NOTE Network Guide USB TYPE B HDMI HDMI...
  • Page 97 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Windows computer) (continued) Right-Click menu NOTE Floating menu NOTE...
  • Page 98 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Windows computer) (continued) Options window Optimize Performance Transmission speed Image quality Keep PC resolution [Keep PC resolution] Sound Display LiveViewer Lite for USB About NOTE AUDIO IN...
  • Page 99 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Mac computer) Hardware and software requirement for computer Graphic card Memory Hard disk space Starting USB Display USB TYPE B NOTE...
  • Page 100 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Mac computer) (continued) NOTE Network Guide USB TYPE B HDMI HDMI...
  • Page 101 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Mac computer) (continued) Menu NOTE...
  • Page 102 3M™ Digital Projector X31i/X36i/X46i/WX36i Presentation tools USB Display(Mac computer) (continued) Options window Optimize Performance Transmission speed Image quality Keep PC resolution [Keep PC resolution] Sound About NOTE AUDIO IN...

  • Page 103: Maintenance

    3M™ Digital Projector X31i/X36i/X46i/WX36i Maintenance Replacing the lamp Type number : 78-6972-0118-0 Replacing the lamp In case of replacement by yourself, follow the following procedure. MENU Important Notice NOTE...
  • Page 104 3M™ Digital Projector X31i/X36i/X46i/WX36i Maintenance Replacing the lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING About disposal of a lamp:...
  • Page 105 3M™ Digital Projector X31i/X36i/X46i/WX36i Maintenance Type number : 78-8138-1041-9...
  • Page 106 3M™ Digital Projector X31i/X36i/X46i/WX36i Maintenance MENU WARNING NOTE...

  • Page 107: Other Care

    3M™ Digital Projector X31i/X36i/X46i/WX36i Maintenance Other care Inside of the projector Caring for the lens Caring for the cabinet and remote control WARNING Important Notice...

  • Page 108: Troubleshooting

    3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting CAUTION Troubleshooting Related messages Message Description There is no input signal. The USB TYPE B port is selected as the picture input source even if MOUSE is selected for USB TYPE B The horizontal or vertical frequency of the input signal is...
  • Page 109 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Related messages (continued) Message Description The internal temperature is rising. Cleaning and replacing the 61, 103 The button operation is not available.

  • Page 110: Regarding The Indicator Lamps

    3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Regarding the indicator lamps LAMP TEMP POWER POWER LAMP TEMP Description indicator indicator indicator The projector is in a standby state. Orange Blinking The projector is warming up. Green The projector is in an on state.
  • Page 111 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator The cooling fan is not operating. Blinking Blinking There is a possibility that the interior portion has become heated. Blinking Cleaning blinking in...
  • Page 112 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator At least 1 Power ON schedule is saved to the Green projector. Loading the saved data of CLONING on STANDBY MODE. Orange Loading the saved data of CLONING has failed on...

  • Page 113: Resetting All Settings

    3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Resetting all settings Symptoms that may be mistaken for machine defects Reference Symptom Solution page The electrical power cord is not plugged in. The main power source has been interrupted during operation such as by a power outage (blackout), etc.
  • Page 114 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Symptoms that may be mistaken for machine defects (continued) Reference Symptoms Solution page The signal cables are not correctly connected. The MUTE function is working. MUTE VOLUME + - The volume is adjusted to an extremely low level.
  • Page 115 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Symptoms that may be mistaken for machine defects (continued) Reference Symptoms Solution page "Waiting for connection." remains displayed even though the USB TYPE B port is selected. The projector does not recognize the USB storage device inserted into USB TYPE A port.
  • Page 116 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Symptoms that may be mistaken for machine defects (continued) Reference Symptoms Solution page When the projector is operating in Eco mode, The OVER SCAN ratio is too big. Excessive VIDEO NR. The FRAME LOCK function cannot work on the current input signal.
  • Page 117 3M™ Digital Projector X31i/X36i/X46i/WX36i Troubleshooting Symptoms that may be mistaken for machine defects (continued) Reference Symptoms Solution page The SAVING function is working. The internal clock has been reset. Disconnect the LAN cable and check that the projector is working properly.
  • Page 118 3M™ Digital Projector X31i/X36i/X46i/WX36i Product Warranty and Safety Guide End User License Agreement for the Projector Software...
  • Page 119 3M Product Manual in effect at the time of purchase. The warranties stated in the applicable 3M Product Manuals are exclusive and are made in place of any and all express industry practice or custom or trade usage.

This manual is also suitable for:

Wx36iX31iX36i

Table of Contents
