Digital Projector X45/SX55
Quick Start Guide
Thank you for purchasing this projector.
WARNING ►Before using, read the "User's Manual - Safety Guide" and
these manuals to ensure correct usage through understanding. After reading,
store them in a safe place for future reference.
NOTE • The information in this manual is subject to chance without notice.
• The manufacture assumes no responsibility for any errors that may appear in this
manual.
• The reproduction, transmission or use of this document or contents is not
permitted without express written authority.

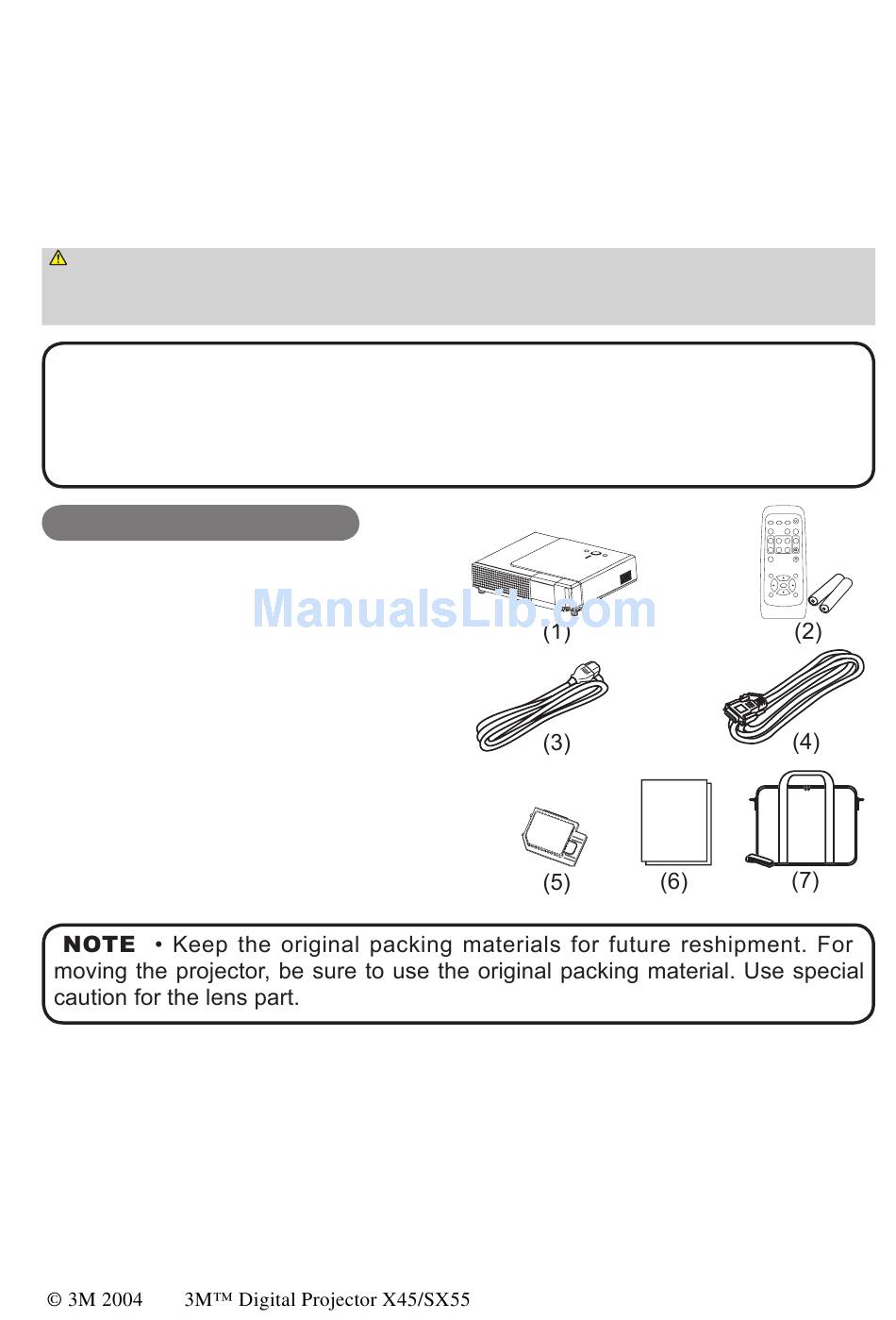

Contents of package
Contents of package
(1) Projector
(2) Remote control
with two AA batteries
(3) Power cord
(4) RGB cable
(5) Filter cover for bottom-up use
(6) User's manuals
(7) Soft case
STANDBY/ON
SEARCH
VIDEO
RGB
ASPECT
AUTO
BLANK
MAGNIFY
HOME
PAGE UP
VOLUME
ON
END
PAGE DOWN
MUTE
OFF
FREEZE
KEYSTONE
POSITION
MENU
ENTER
ESC
RESET
1
