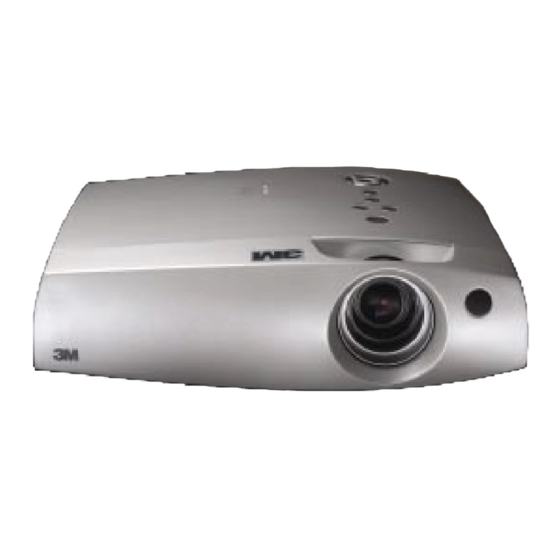

- Page 1 All manuals and user guides at all-guides.com S40/X40 Multimedia Projector Operator's Guide TECHNICAL...
- Page 2 All manuals and user guides at all-guides.com TECHNICAL TECHNICAL SIGNAL CONNECTOR PIN ASSIGNMENT s-video D-sub 15-pin Shrink Mini Din 4-pin Mini Din 4-pin Pin No Signal Pin No Signal Pin No Signal Video input Red Color: Video input Green Ground 0.286Vp-p (NTSC, burst signal), Video input Blue 75Ω...
- Page 3 All manuals and user guides at all-guides.com EXAMPLE OF COMPUTER SIGNAL Display mode Resolution fH (kHz) fV (Hz) Rating Signal mode H × × V 720 × 400 37.9 85.0 VESA TEXT Zoom in Zoom in 640 × 480 31.5 59.9 VESA VGA (60Hz)
- Page 4 All manuals and user guides at all-guides.com INITIAL SET SIGNALS The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to adjust the V.POSIT and H.POSIT of the menu. Back porch b Front porch d Back porch b...
- Page 5 All manuals and user guides at all-guides.com RS-232C COMMUNICATION (1) Turn off the projector and computer power supplies and connect with the RS-232C cable. (2) Turn on the computer power supply and after the computer has started up, turn on the projector power supply.
- Page 6 All manuals and user guides at all-guides.com Requesting projector status (Get command) (1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes) +‘00H’+‘00H’) from the computer to the projector. (2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer. Changing the projector settings (Set command) (1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from the computer to the projector.
- Page 7 All manuals and user guides at all-guides.com RS-232C COMMUNICATION (continued) Command data chart Command data Names Operation type Header Action Type Setting code Blue BE EF 06 00 CB D3 01 00 00 30 03 00 White BE EF 06 00 6B D0 01 00 00 30...
- Page 8 All manuals and user guides at all-guides.com Command data Names Operation type Header Action Type Setting code H.Position Reset Execute BE EF 06 00 IC D3 06 00 03 70 00 00 H.Size Reset Execute BE EF 06 00 68 D2 06 00 04 70 00 00...
- Page 9 All manuals and user guides at all-guides.com Command data chart (continued) Command data Names Operation type Header Action Type Setting code BE EF 06 00 FD D3 02 00 04 20 00 00 Contrast Increment BE EF 06 00 9B D3 04 00 04 20 00 00...
- Page 10 All manuals and user guides at all-guides.com Command data Names Operation type Header Action Type Setting code BE EF 06 00 49 73 02 00 03 22 00 00 Tint Increment BE EF 06 00 2F 73 04 00 03 22 00 00 Decrement BE EF...
- Page 11 The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment. • 16˚ to 29˚C (60˚ to 85˚ F) •...
